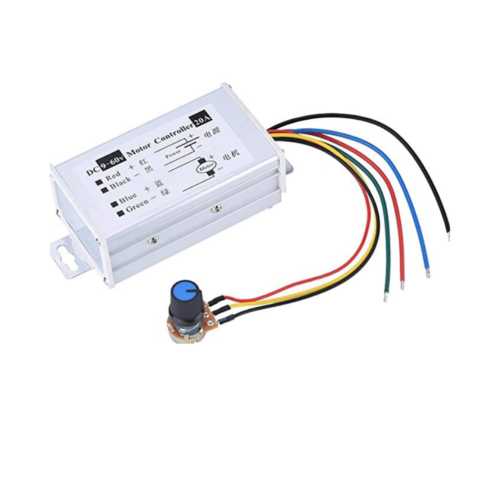

PWM Motor Speed Controller 12V24V36V48V 20A DC

Description

Input wiring note:

The input voltage is equal to the motor voltage;
Input must be a dc voltage;
Input the positive and negative polarity must points clear.

SPECIFICATION PWM Motor Speed Controller

Motor Type:DC Motor
Model Number:20A22S
Input voltage:DC 9-60V
Continuous current:within 18A
Maximum power:1200W
Quiescent current:0.01ma
Speed control type:Current modulation
Speed adjustment mode:Linear potentiometer 270 degrees
Working frequency:25KHZ
Connection type:common
Size:92mm*52mm*36mm
