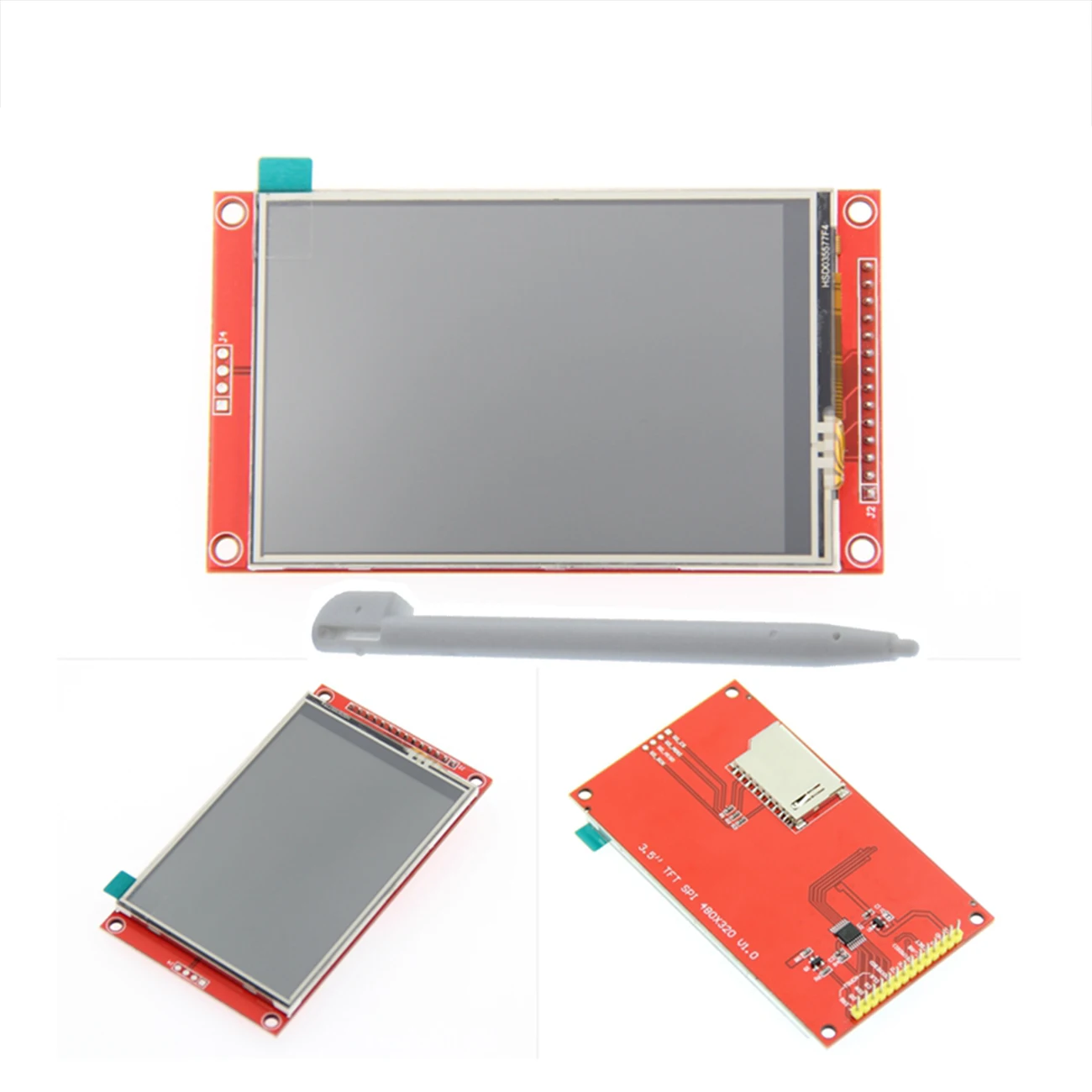

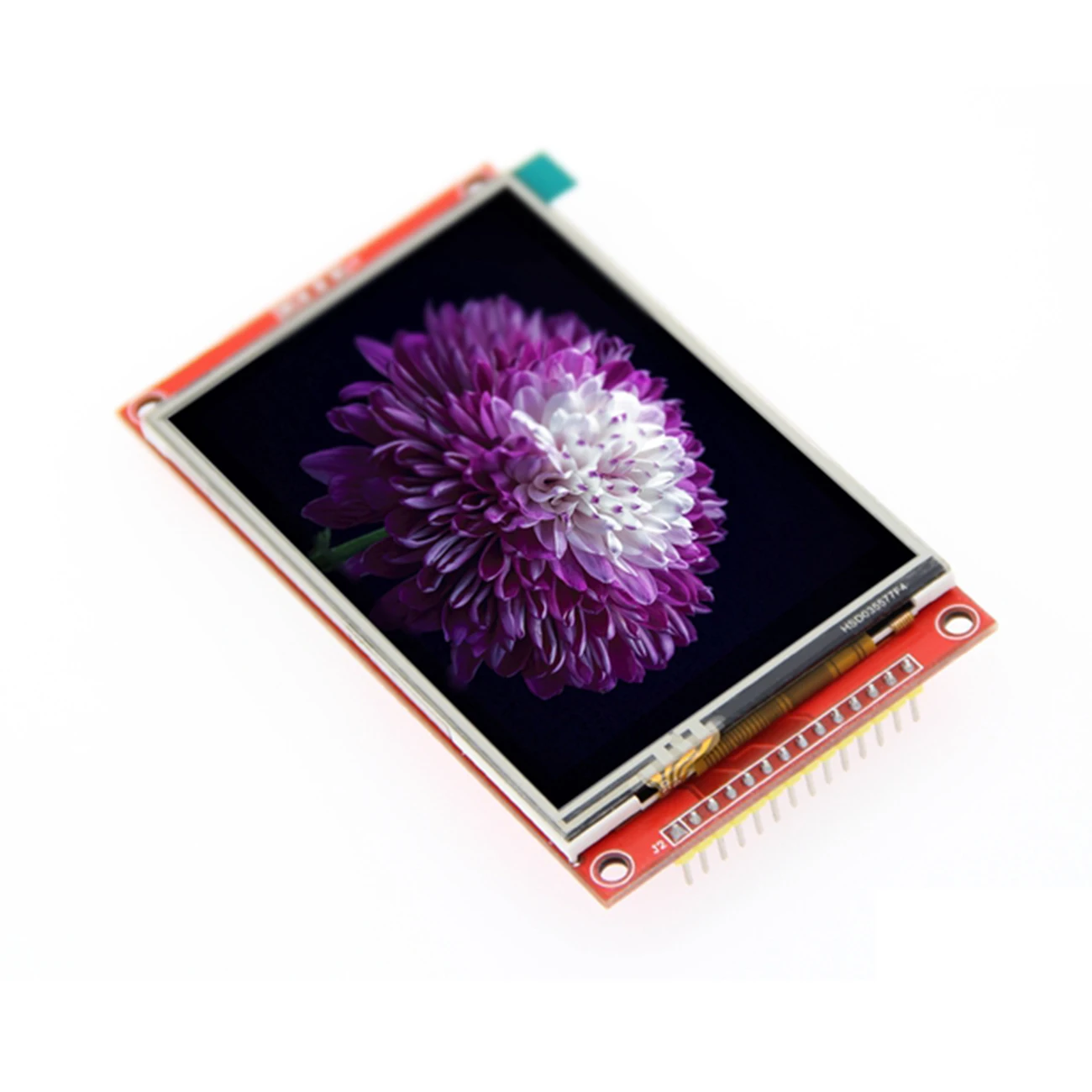

Touch LCD 3.5″
- This 3.5″ TFT LCD is a IPS panel with full viewing angle LCD,
- it support 16bit interface with 16bit colour display,
- can be easy controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM. It has a high resolution of 480×320 and include a touchscreen with a 12bit onboard touchscreen controller
- This LCD module is suitable for user require high resolution and brightness, brilliant and all angle viewable display quality,display quality is as good as iphone screen.
- Resistive touch

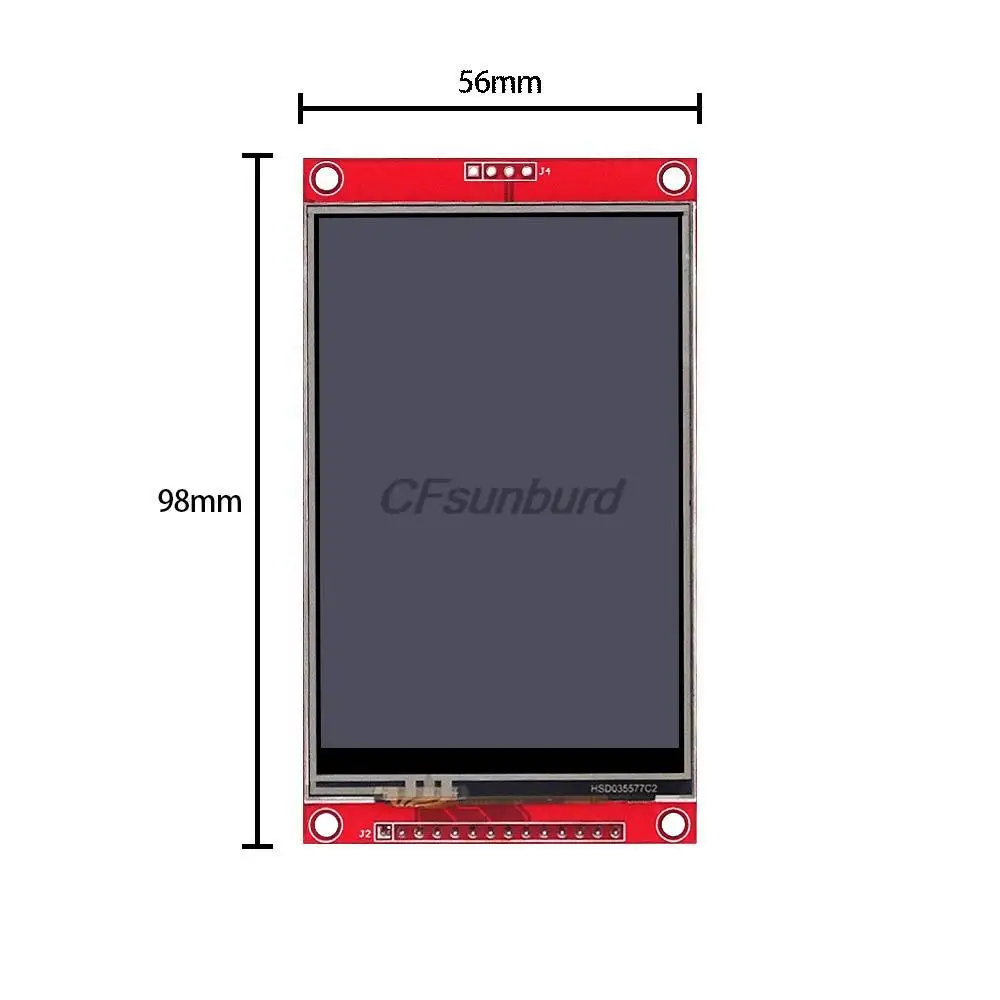

- Dimension :3.5inch
- Controller :R61581
- Resolution: 480*320
- data bits: 8 -16
- Interface pin number :37 pin
- Distance:1 mm
Specifications Touch LCD 3.5″

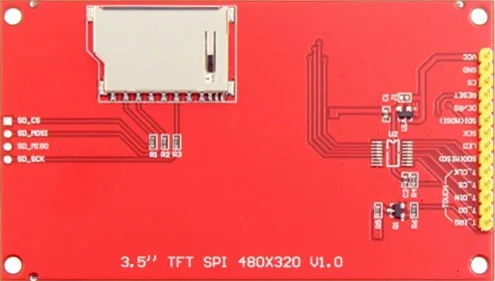

- – Can use it directly to display characters, graphics and BMP format images with the help of Micro SD card adapter module.
- Compatibility: Because the logic level is 3.3V, it is compatible for board 3.3V, you generally need to add a level conversion circuit if you use a 5V Board compatible for Arduino
- Touch screen type: resistive touchscreen.
- Touch Pen: length is 9cm;
- Driver IC: ST7793
- Resolution: 400 x 240, 16-bit (262,000) color
- Display size: 3.5 inch;
- Operating voltage: 3.3V;
- Logic level: 3.3V;
- Operating current: the maximum is 135mA
- Bus interface: 8080-parallel interface (8 bit)
- IO Port Package: PAD is available, and the pin pitch is 2.54mm.
- LED pin can connect to external backlight control circuit to control the brightness of backlight. You can connect it to GND to turn on the backlight all day.
- Very suitable for digital photo frame, oscilloscope, function generator, detection system monitor
