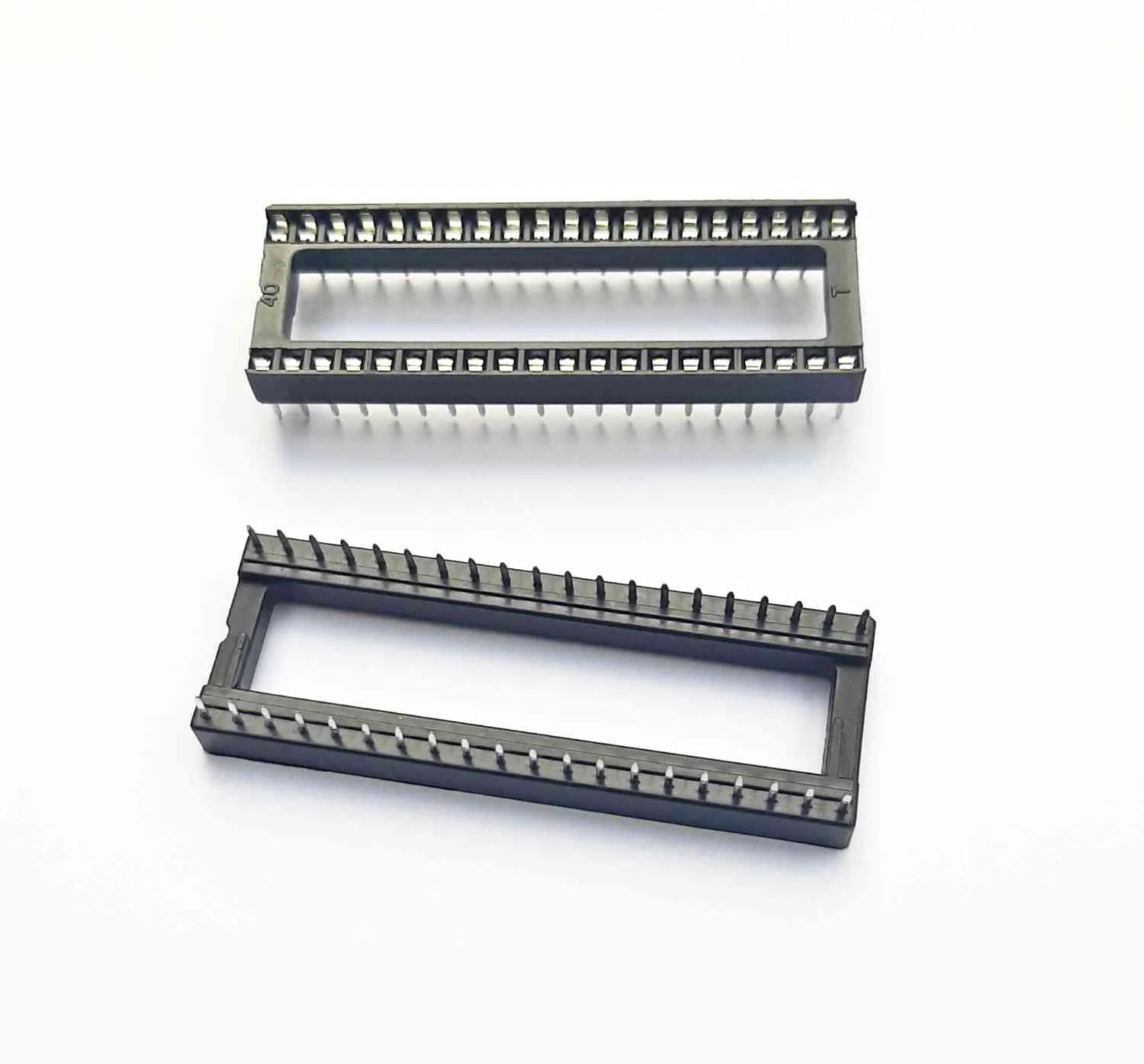

40-Pin DIP IC Socket Adaptor (0.600" Wide Body - Through-Hole)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

When building a custom printed circuit board around colossal 40-pin integrated circuits—such as the "MightyCore" ATmega1284P-PU, the classic ATmega32-16PU, or legendary retro processors like the Z80 and 6502—the 40-Pin DIP IC Socket is a mandatory physical component. Because these massive chips contain dozens of delicate internal wire bonds and represent a significant financial investment compared to smaller ICs, subjecting them directly to the extreme, sustained heat of soldering 40 individual pins is an unnecessary risk. Instead, you permanently solder this rugged, heat-resistant thermoplastic socket to your board and simply press your pristine microcontroller into the metallic contacts once everything has cooled.

Unlike standard logic chips that use a "narrow body" footprint, 40-pin chips utilize a 0.600" Wide Body spacing. This socket is perfectly dimensioned to accommodate that wider stance, allowing it to straddle the large center trench on a standard solderless breadboard or drop flawlessly into a custom-routed PCB. Beyond acting as a thermal shield, this socket provides the ultimate peace of mind during prototyping. If an accidental high-voltage short destroys your main processor, or if you simply need to move your ATmega1284P over to an external programmer to flash a new bootloader, you can instantly pry the chip out with an IC puller and press it right back in without ever touching a soldering iron.

Key Features & Functional Advantages:

  • Zero-Heat Assembly: Completely isolates your high-value, maximum-I/O microcontrollers from the destructive thermal shock of manual hand-soldering and wave-soldering processes.

  • Instantaneous Chip Swapping: Allows for immediate component replacement, which is critical during iterative prototype testing where microcontrollers need to be frequently removed for external flashing.

  • Standardized 0.1" Pitch: The pins are perfectly spaced at 2.54mm (0.1 inches) apart, aligning perfectly with standard perfboards, stripboards, and massive solderless breadboards.

  • 0.600" Wide Row Spacing: Specifically sized for the standard "wide body" 40-pin footprint utilized by the vast majority of high-pin-count DIP microcontrollers and retro CPUs.

  • Dual-Wipe Contacts: Features heavy-duty, tensioned metallic springs inside each pin slot. These aggressively grip both sides of the IC's flat legs, ensuring a highly reliable, low-resistance electrical connection that withstands physical vibration.

Perfect For:

  • "MightyCore" Prototyping: The absolute safest, most reliable physical housing for mounting massive 40-pin AVR chips like the ATmega1284P or ATmega32 into permanent perfboard projects.

  • Retro Computer Builds: The standard, mandatory mounting hardware for anyone building custom 8-bit computers powered by socketed Z80, 6502, or 8088 microprocessors.

  • Complex I/O Expander Boards: An excellent mount for 40-pin multiplexers and massive shift register arrays in custom industrial or robotics motherboards.

  • Vintage Hardware Repair: The go-to replacement component for restoring classic arcade cabinets, synthesizers, and early 90s test equipment.

Technical Specifications:

  • Pin Count: 40 Pins (2 rows of 20)

  • Pin Pitch (Spacing between adjacent pins): 2.54 mm (0.1")

  • Row Spacing (Distance between the two rows): 15.24 mm (0.600" - Wide Body)

  • Mounting Type: Through-Hole (PTH)

  • Contact Style: Dual-Wipe / Leaf Spring (Standard)

  • Housing Material: Black Thermoplastic (UL94V-0 Rated)

  • Contact Material: Tin-plated Phosphor Bronze

  • IC Compatibility: Any standard 40-pin, 0.600" wide DIP integrated circuit.
