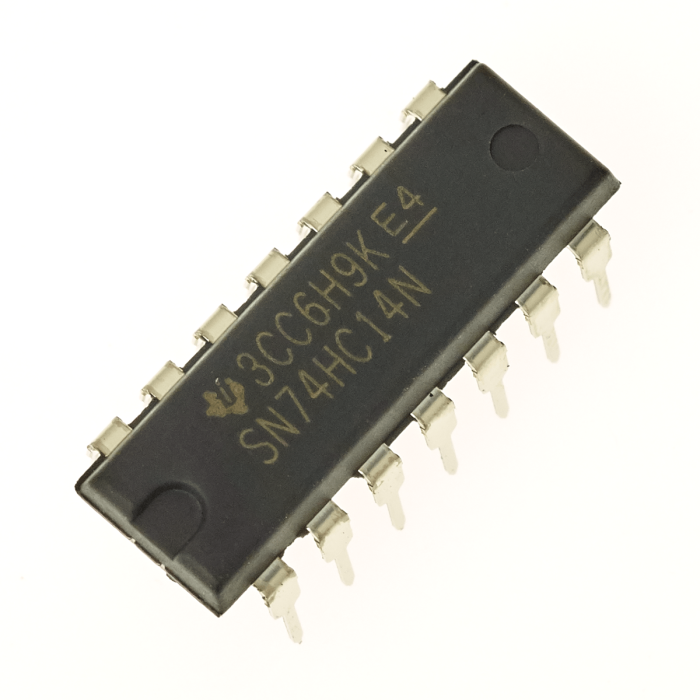

74HC14 (Hex Inverting Schmitt Trigger IC - 14-Pin DIP Package)

In the real world, digital signals are rarely perfect. Mechanical buttons physically "bounce" when pressed, creating dozens of rapid electrical spikes. Analog sensors often output slow, sloping voltages. If you feed these messy, ambiguous signals directly into a microcontroller or standard logic gate, the chip will get confused, leading to erratic behavior and multiple false triggers. The 74HC14 is the hardware cure for messy signals. It contains six independent inverters (NOT gates), but with a massive superpower: Schmitt Trigger inputs.

A standard logic gate has a single voltage threshold to decide if a signal is HIGH or LOW. A Schmitt Trigger has hysteresis—meaning it has two distinct, separate thresholds. The incoming voltage has to rise past a high threshold to turn the output ON, but to turn it OFF, the voltage has to drop significantly lower past a different, lower threshold. This "dead zone" entirely ignores the electrical noise and physical chatter of a bouncing switch, instantly snapping a dirty, sluggish wave into a perfect, crisp, high-speed digital pulse.

Key Features & Functional Advantages:

• Built-In Hysteresis: The absolute best hardware solution for filtering out line noise and safely bridging the gap between slow analog signals and fast digital logic.

• Six Independent Channels (Hex): Packs six completely separate signal-conditioning inverters into a single 14-pin package.

• Inverting Logic: Operates as a classic NOT gate. What goes in is flipped on the way out (a dirty HIGH input yields a clean LOW output, and vice versa).

• High-Speed CMOS (HC) Architecture: Operates seamlessly across a wide 2.0V to 6.0V range, combining incredibly low power consumption with ultra-fast output switching speeds.

• Breadboard Native (14-DIP): Sized perfectly for standard 0.1-inch (2.54mm) solderless breadboards, allowing for rapid integration into any digital project.

Perfect For:

• Hardware Debouncing: The gold standard for wiring up pushbuttons, limit switches, and rotary encoders so they only trigger your Arduino exactly once per physical click.

• Simple RC Oscillators: Because of the hysteresis, you can build a highly reliable, flashing clock generator using only a single 74HC14 channel, one resistor, and one capacitor.

• Signal Squaring: Excellent for taking a smooth, rolling sine wave (like from an audio circuit or AC transformer) and chopping it into a harsh digital square wave for frequency counting.

• Delay Circuits: Easily creates hardware-level time delays when paired with a resistor-capacitor (RC) network to control power-on sequencing.

Technical Specifications:

• Logic Family: 74HC (High-Speed CMOS)

• Logic Function: Hex Inverting Schmitt Trigger

• Number of Channels: 6 (Hex)

• Operating Supply Voltage ($V_{CC}$): 2.0V to 6.0V DC

• Maximum Output Current: $\pm$5.2 mA per pin

• Hysteresis Voltage: Typically ~0.9V at $V_{CC}$ = 5V

• Package / Case: 14-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
