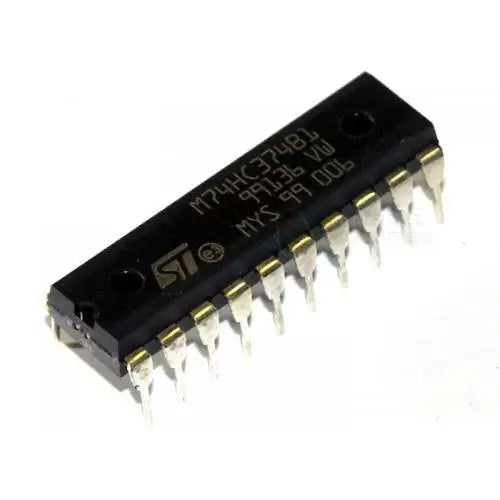

74HC374 (Octal D-Type Edge-Triggered Flip-Flop IC - 20-Pin DIP Package)

When you move from blinking a few LEDs to designing complex digital systems that require shared data lines, you need a way to temporarily store and control the flow of information. The 74HC374 is the absolute standard for 8-bit parallel data storage. This 20-pin integrated circuit contains eight D-type (Data) flip-flops. Unlike a shift register (which loads data one bit at a time sequentially), the 374 loads all 8 bits of data simultaneously the exact moment it receives a rising "tick" on its Clock pin. It takes a perfect, instantaneous snapshot of whatever 1s and 0s are currently on its input pins and locks them into memory.

What truly makes the 74HC374 a masterpiece of digital logic is its 3-State (Tri-State) Outputs. In complex systems like a custom CPU, multiple chips need to share the same 8 wires (the data bus). If two chips try to "talk" on the bus at the same time, it causes a catastrophic short circuit. The 374 features an Output Enable (OE) pin. When this pin is pulled High, the chip essentially physically disconnects its outputs from the circuit, entering a "High-Impedance" state. It remembers its stored data silently in the background, only broadcasting it to the bus when you grant it permission.

Key Features & Functional Advantages:

• 8-Bit Parallel Operation: Captures and stores a complete byte of data across 8 parallel input lines instantly, making it blazingly fast compared to serial shift registers.

• Positive Edge-Triggered: Data is only saved on the rising edge of the clock signal (the exact moment the clock goes from Low to High), allowing for incredibly precise timing synchronization in CPU builds.

• 3-State Outputs: Features a highly necessary "High-Impedance" mode, allowing you to tie the outputs of multiple 374 chips directly to the same shared data bus without short-circuiting.

• High-Speed CMOS (HC) Architecture: Delivers the rapid switching speeds required for microprocessor clocking, while maintaining ultra-low power consumption and a wide 2.0V to 6.0V operating range.

• Breadboard Native (20-DIP): Sized to fit perfectly across the center trench of a standard solderless breadboard, or into a permanent 20-pin DIP socket on your custom PCB.

Perfect For:

• Homebrew 8-Bit Computers: The absolute standard silicon for building the "A Register," "B Register," and "Instruction Register" in iconic DIY breadboard CPU projects (like the Ben Eater 8-bit computer).

• Data Bus Buffering: Safely isolates delicate sensors or microcontrollers from a noisy, heavily loaded main system bus.

• Parallel I/O Port Expansion: An excellent way to grab an 8-bit snapshot from a microcontroller's parallel port and hold it steady to drive an LCD, printer, or DAC (Digital-to-Analog Converter).

• Signal Synchronization: Highly effective for taking 8 messy, unsynchronized signals from mechanical switches and perfectly aligning them to a single, clean system clock pulse.

Technical Specifications:

• Logic Family: 74HC (High-Speed CMOS)

• Logic Function: Octal D-Type Flip-Flop

• Number of Bits: 8 (1 Byte)

• Trigger Type: Positive Edge

• Output Type: 3-State (Tri-State / High-Impedance capable)

• Operating Supply Voltage (Vcc): 2.0V to 6.0V

• Maximum Clock Frequency: > 50 MHz (Extremely fast data capture)

• Package / Case: 20-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
