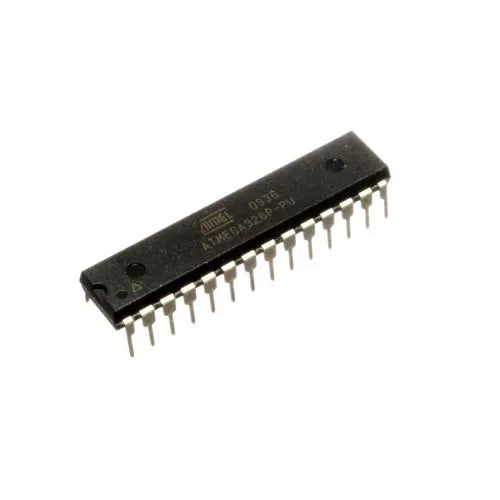

ATMEGA328P-PU (8-Bit AVR Microcontroller - DIP-28) — With & Without Arduino Bootloader

K-TECHNICS

Bootloader

With Bootloader Without Bootloader

Secure checkout

Friendly support

Hassle-free returns

The ATMEGA328P-PU is the legendary 28-pin, through-hole (DIP) microcontroller that powers the classic Arduino Uno. It is the absolute standard for breadboard prototyping, custom DIY circuitry, and educational electronics. It boasts a highly robust 5V-tolerant architecture, 32KB of Flash memory, and plenty of hardware peripherals (UART, SPI, I2C, PWM) to drive everything from simple LED arrays to complex telemetry networks.

However, when purchasing this chip, the most critical decision you will make is whether to buy it "With a Bootloader" or "Without a Bootloader" (Bare Silicon). The physical hardware is identical in both cases; the difference lies entirely in the software pre-flashed onto the chip's memory before it ships to you.

Option 1: WITH Bootloader (The "Arduino-Ready" Version)

When you buy an ATmega328P with a bootloader, it has been pre-flashed with a tiny piece of software—usually the "Optiboot" bootloader used by the Arduino Uno.

The Advantage: This chip is pure plug-and-play. You can drop it directly into an empty Arduino Uno socket to repair a fried board, or place it on a breadboard and program it instantly using a standard USB-to-Serial adapter (like an FTDI or CH340). The Arduino IDE will recognize it immediately.
The Trade-off: The bootloader permanently reserves a tiny fraction of your Flash memory (about 0.5KB to 2KB depending on the version). Additionally, there is a slight 1-to-2 second delay every time the chip powers on, as the bootloader pauses to listen for a new USB upload before running your actual code.

Option 2: WITHOUT Bootloader (The "Bare Metal" Version)

When you buy the chip without a bootloader, it is a factory-blank slate directly from Microchip/Atmel.

The Advantage: You get access to the entire, unadulterated 32KB of Flash memory for your code. Furthermore, because there is no bootloader waiting for a USB signal, your code begins executing the exact millisecond power is applied. This is the preferred choice for mass production and highly optimized, timing-critical bare-metal C programming.
The Trade-off: You cannot program this chip using a simple USB-to-Serial adapter out of the box. To put code on this chip, you must use a dedicated ISP (In-System Programmer)—such as a USBasp, an AVRISP mkII, or another Arduino wired as an "Arduino as ISP"—to flash your firmware directly via the chip's SPI pins (MISO, MOSI, SCK, and RESET).

Key Features & Functional Advantages:

Breadboard Native (DIP-28): The standard 0.1-inch pin pitch makes it incredibly easy to snap into a solderless breadboard for rapid prototyping or drop into a socketed PCB.
Robust 5V Logic: Natively operates at 5V, allowing for direct interfacing with classic industrial sensors, relays, and character LCDs without delicate level shifters.
PicoPower Technology: Supports ultra-deep sleep modes that draw mere microamps, making it perfect for battery-operated field sensors.
Flexible Clock Sources: Can run on its internal 8MHz oscillator for low-part-count projects, or be paired with an external 16MHz crystal for high-speed, precise timing.

Perfect For:

Arduino Uno Repairs (With Bootloader): The cheapest, fastest way to bring a dead Arduino Uno back to life. Just pry out the old chip and push the new one in.
Standalone Breadboard Arduinos: Ideal for stripping your project off a development board and running it on a permanent piece of perfboard.
Custom PCB Production (No Bootloader): The most cost-effective way to buy the silicon in bulk when manufacturing your own custom, programmed-in-circuit hardware.
Learning Bare-Metal AVR: The definitive chip for learning how to manipulate hardware registers directly in C, bypassing the overhead of the Arduino framework.

Technical Specifications:

Core Processor: 8-Bit AVR RISC
Maximum Clock Speed: 20 MHz (Commonly clocked at 16 MHz with an external crystal for Arduino compatibility)
Program Memory (Flash): 32 KB
SRAM: 2 KB
EEPROM: 1 KB
Operating Voltage Range: 1.8V – 5.5V
Total I/O Pins: 23
Analog-to-Digital Converter (ADC): 6 Channels, 10-bit resolution (DIP package specific)
Communication Interfaces: 1 x UART/USART, 1 x SPI, 1 x I2C (Two-Wire Interface)
Package / Case: 28-DIP (0.300", 7.62mm width)
Mounting Type: Through-Hole (PTH)
