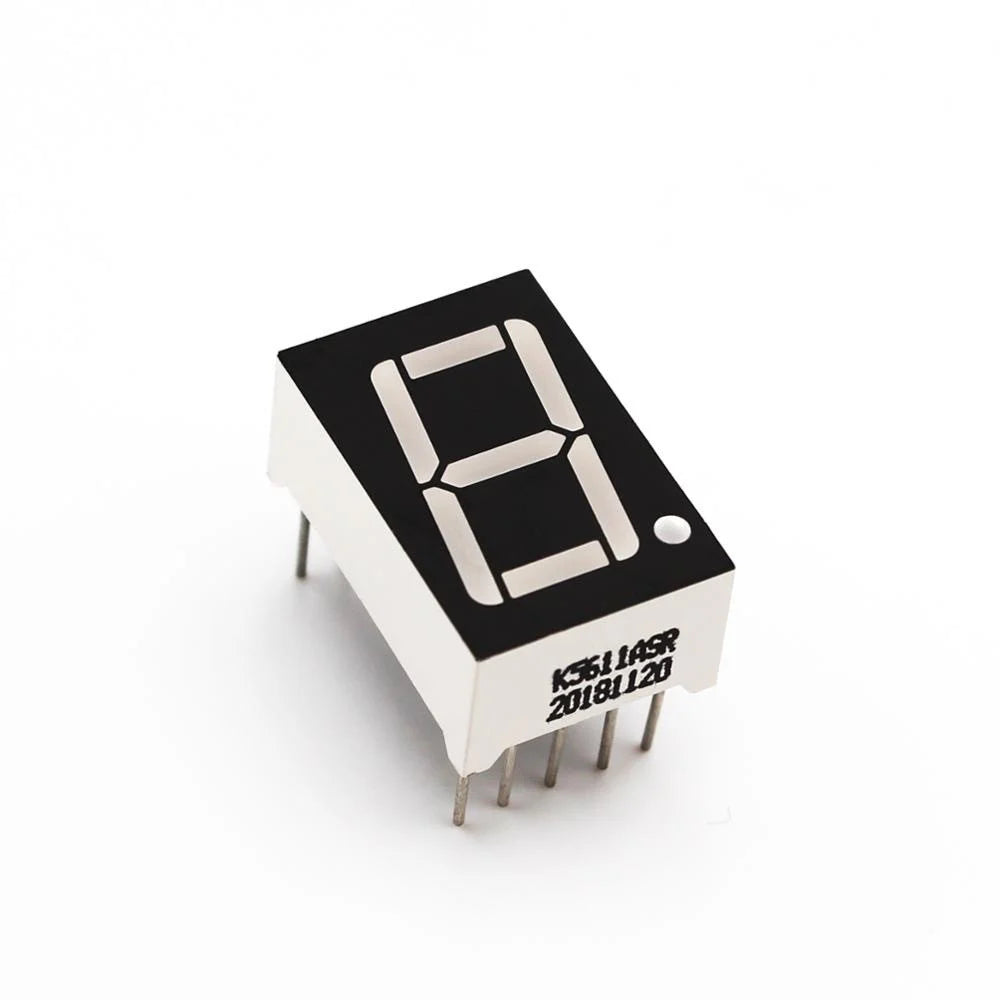

0.56 inch Red 1 Digit 7 Segment Common Cathode LED Display

K-TECHNICS
In stock
KSh50.00

Secure checkout

Friendly support

Hassle-free returns

The 0.56-inch Red 1-Digit 7-Segment Common Cathode LED Display is a standard electronic component used to display numbers from 0 to 9 and a few basic letters. In a common cathode (CC) configuration, all the negative terminals (cathodes) of the individual segment LEDs are tied together to a shared ground pin. To illuminate a specific segment, you must apply a high voltage (logic 1) to its corresponding positive terminal (anode).
📌 Technical Specifications
These parameters represent the industry-standard ratings for red 0.56" displays (such as the popular 5161AS or 5611AH models):
  • Character Height: 0.56 inches (14.2 mm)
  • Emitting Color: Red
  • Forward Voltage (\(V_{F}\)): 1.8V to 2.2V per segment
  • Forward Current (\(I_{F}\)): 10mA to 20mA per segment (requires current-limiting resistors)

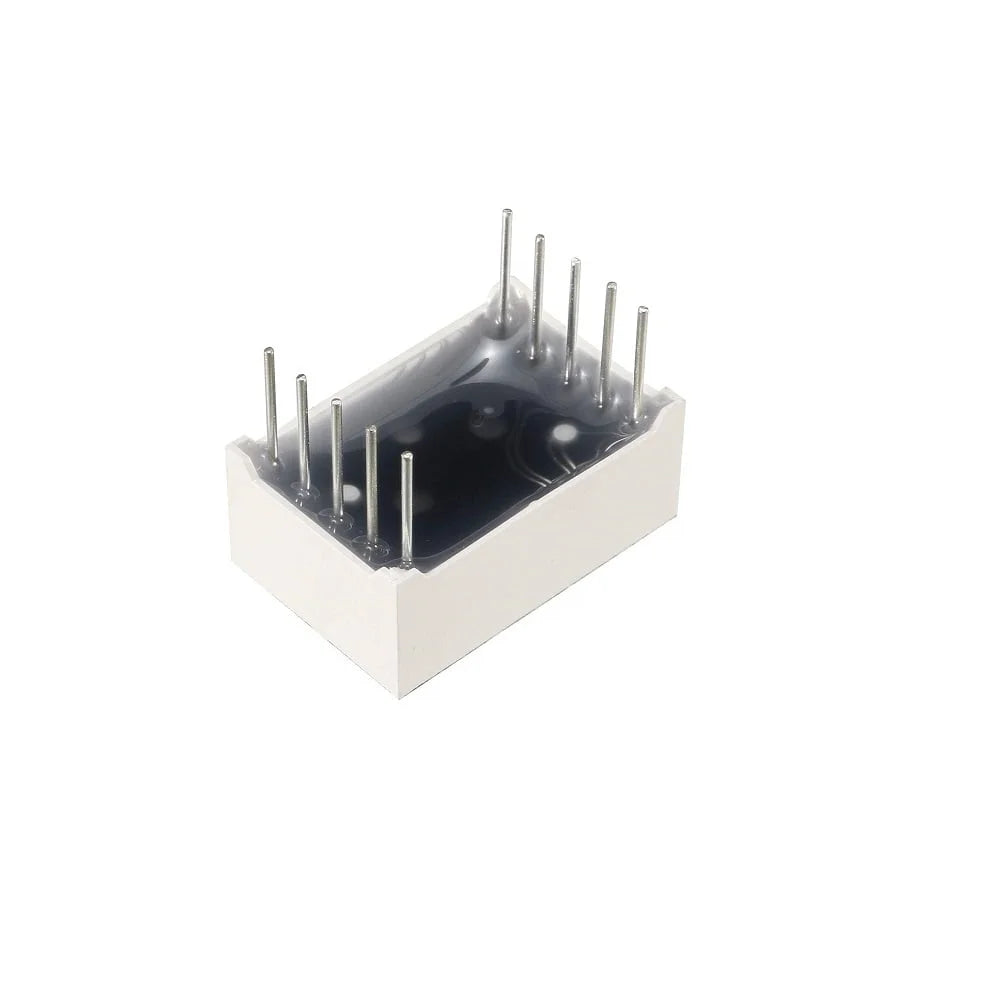

  • Package Type: 10-pin Dual In-line Package (DIP) for breadboard or through-hole PCB mounting
🗺️ Standard 10-Pin Layout & Pinout
Looking directly at the front of the display with the decimal point at the bottom right, the pins are numbered 1 to 5 along the bottom (left to right) and 6 to 10 along the top (right to left / counter-clockwise).
text
       --- A ---

      |         |
      F         B

      |         |
       --- G ---

      |         |
      E         C

      |         |
       --- D ---   (DP)

Pin Number  Connected Segment / Function
Pin 1 Segment E (Bottom-left)
Pin 2 Segment D (Bottom)
Pin 3 Common Cathode (Connect to Ground)
Pin 4 Segment C (Bottom-right)
Pin 5 DP (Decimal Point)
Pin 6 Segment B (Top-right)
Pin 7 Segment A (Top)
Pin 8 Common Cathode (Connect to Ground)
Pin 9 Segment F (Top-left)
Pin 10 Segment G (Middle)
(Note: Pins 3 and 8 are internally tied together. You only need to connect one of them to your circuit's ground line to enable the display).
