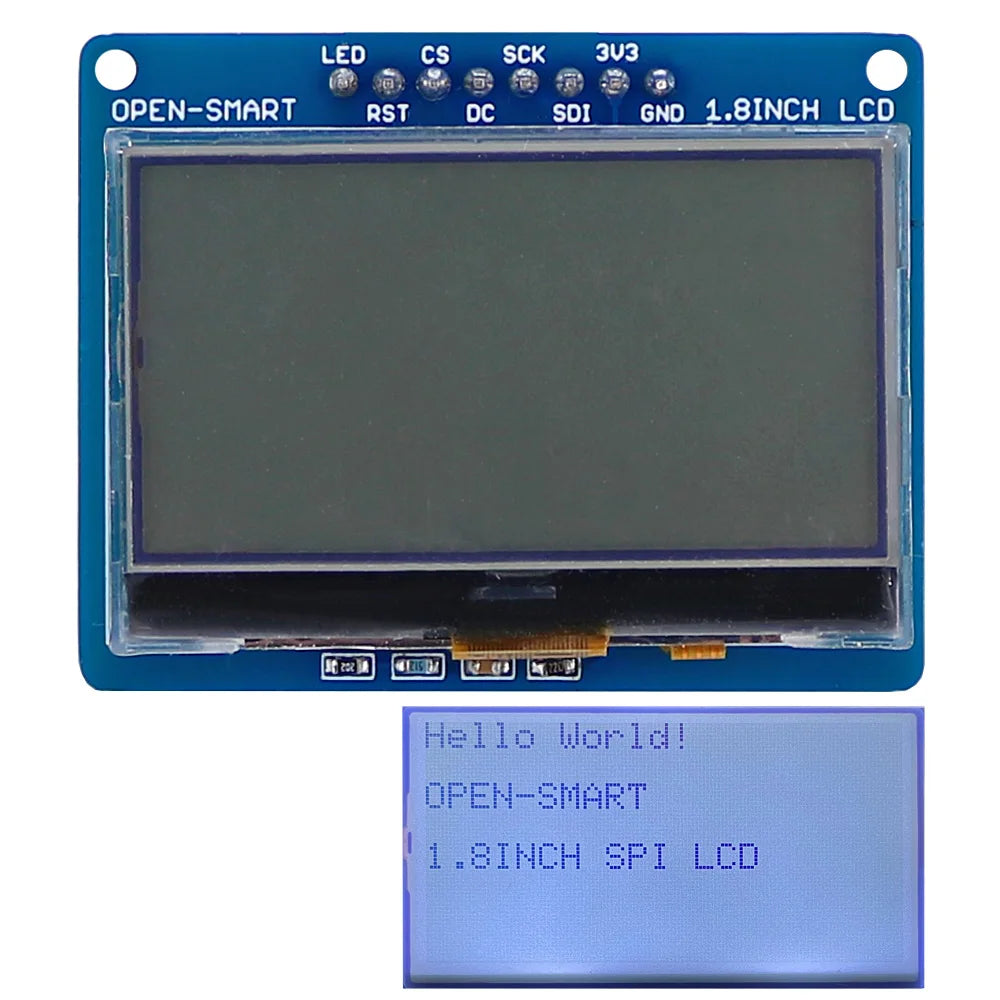

1.8″ SPI Monochrome LCD OPEN SMART 3.3V With ST7567 Driver

K-TECHNICS
Out of stock
KSh700.00

Secure checkout

Friendly support

Hassle-free returns

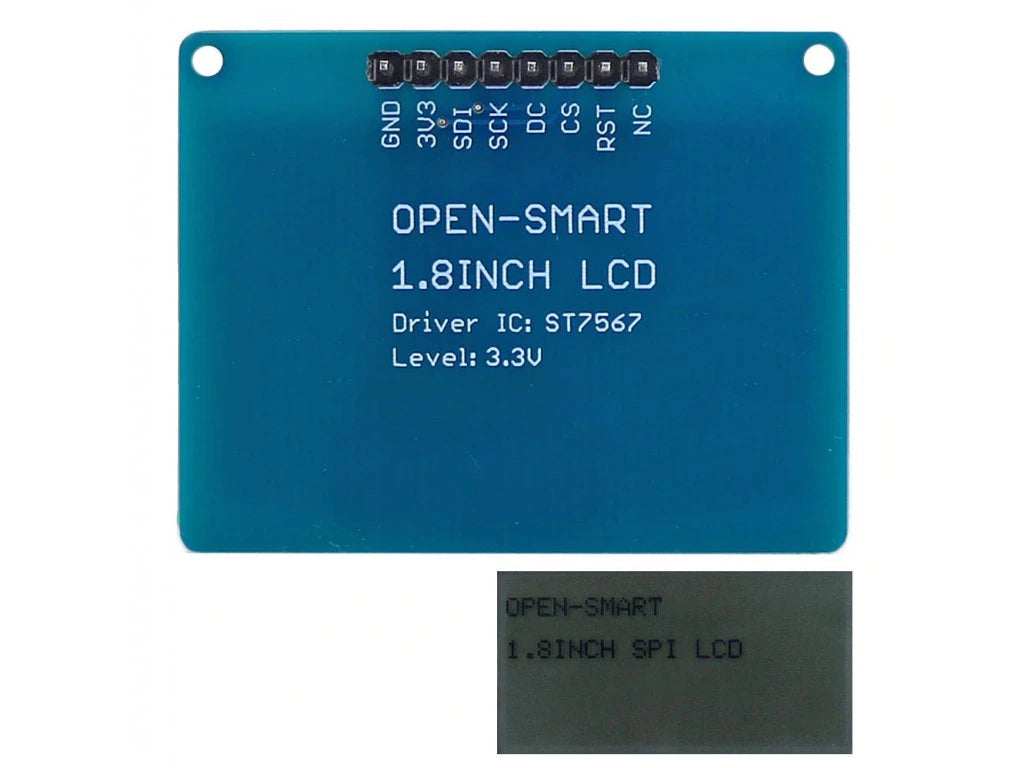

The 1.8″ SPI Monochrome LCD (OPEN-SMART) uses the ST7567 driver and requires a strict 3.3V power and logic level. It features a 128x64 resolution with an SPI serial interface, making it ideal for Arduino projects.
🛠️ Hardware Wiring
Always use a logic level converter if you are connecting this to a 5V microcontroller (like an Arduino Uno) to avoid damaging the screen.
  • VCC: 3.3V
  • GND: Ground
  • CS (Chip Select): Any Digital Pin (e.g., 10)
  • RST (Reset): Any Digital Pin (e.g., 9)
  • A0 / DC (Data/Command): Any Digital Pin (e.g., 8)
  • SDA / MOSI (Data): SPI MOSI Pin
  • SCK / SCLK (Clock): SPI SCK Pin
  • LED (Backlight): Connect to 3.3V (with a resistor) or a digital pin
