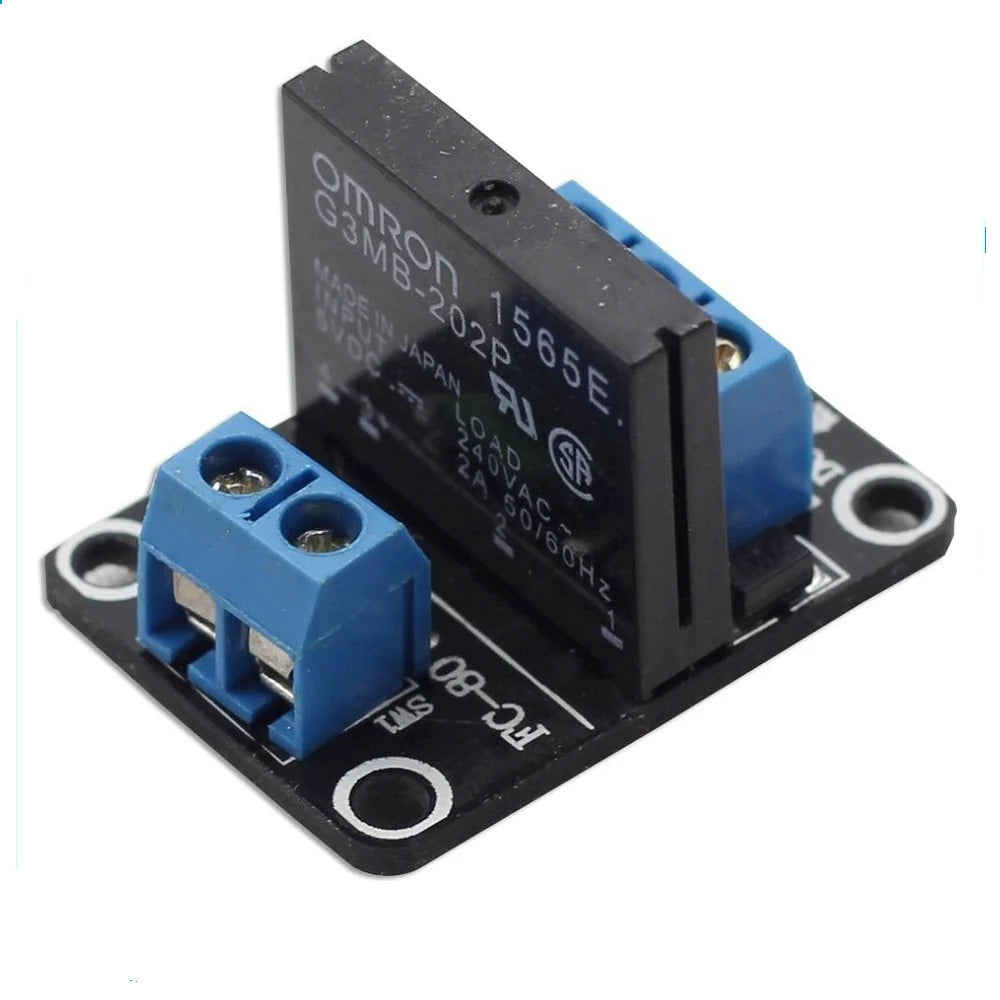

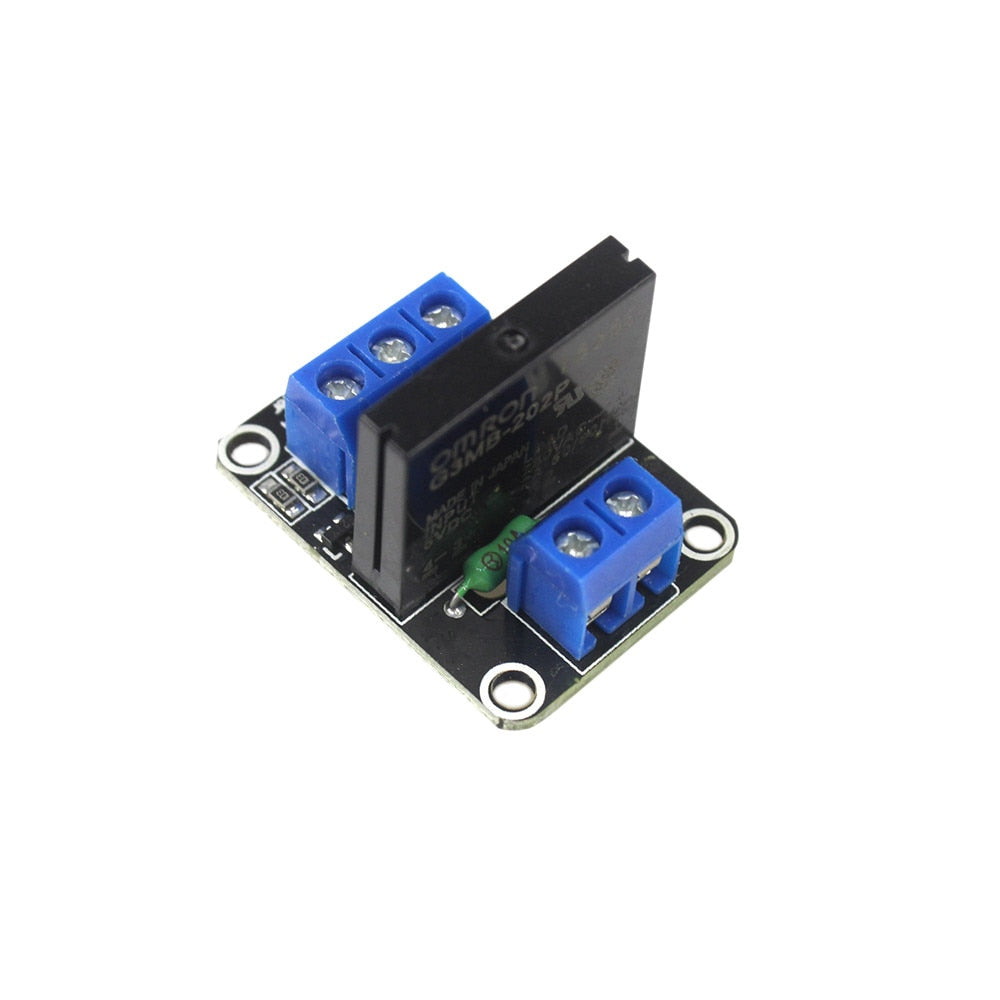

1 Channel 5V SSR G3MB-202P 2A Solid State Relay Module

K-TECHNICS
In stock
KSh300.00

Secure checkout

Friendly support

Hassle-free returns

The 1-Channel 5V SSR G3MB-202P 2A Solid State Relay Module is an electronic switching board that allows a low-voltage microcontroller (like an Arduino) to silently switch high-voltage AC loads. Unlike traditional mechanical relays, it uses optoisolators and triacs, meaning it has no moving parts, generates no clicking noise, and boasts a much longer operational lifespan.
Crucial Warning: This specific SSR module only works with AC loads. It will not switch or turn off DC loads (such as DC motors or 12V LED strips) due to the behavior of its internal Triac.
🛠️ Technical Specifications
Parameter  Specification
Input / Control Voltage 5V DC (Operating range: 4V to 6V)
Working Current ~12.5 mA
Trigger Type Available in High-Level (3-5V) or Low-Level (0-1.5V) versions
Output / Load Voltage 75V to 264V AC (50/60 Hz)
Maximum Load Current 2A
Maximum Power Capacity 480W at 240V AC / 220W at 110V AC
On-Board Protection Includes a resistive fuse and built-in snubber circuit
