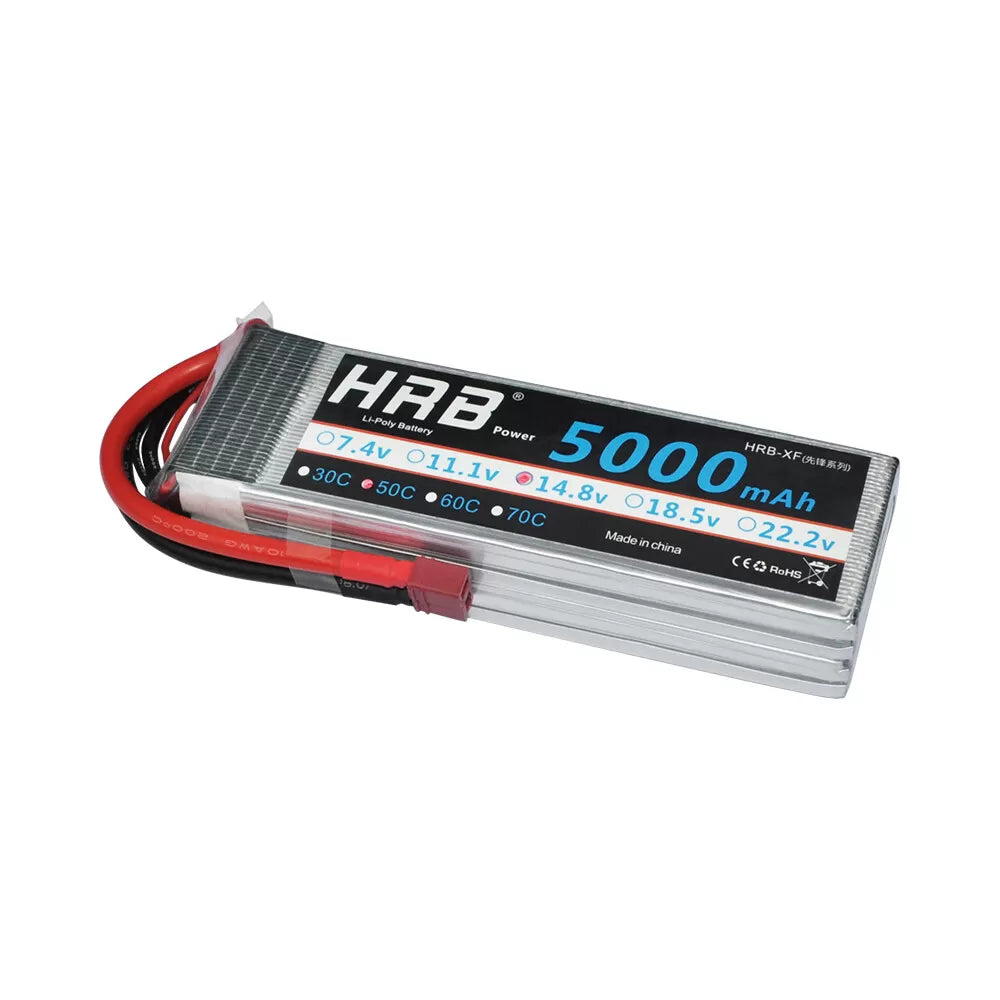

14.8V 5000mAh 4S LiPo Battery (High-Capacity / High-Discharge Pack)

The 14.8V 5000mAh 4S LiPo Battery is a heavyweight power source engineered for applications that demand both extreme voltage and extended runtimes. The "4S" designation means this pack contains four 3.7V lithium-polymer cells wired in series, delivering a nominal voltage of 14.8V and a fully-charged peak of 16.8V. Combined with a massive 5000mAh (5 Amp-hour) capacity, this battery is designed to sustain heavy loads over long periods without breaking a sweat.

Built to handle the immense current draws of large brushless motors, these packs typically feature ultra-high discharge ratings (often 30C, 50C, or higher). To safely transfer this power, they are equipped with thick, low-resistance silicone wiring and heavy-duty connectors like the XT90 or XT60. An integrated 5-pin JST-XH balance lead ensures that a compatible smart charger can monitor and balance all four internal cells simultaneously, maximizing the pack's performance and lifespan.

Key Features & Functional Advantages:

• Quad-Cell (4S) Architecture: Delivers a potent 14.8V nominal output, providing the necessary RPMs and torque for large-scale motors that lower-voltage 2S or 3S batteries simply cannot achieve.

• Massive 5000mAh Capacity: Offers exceptional endurance and extended operating times, drastically reducing the frequency of battery swaps during field use or flight operations.

• Extreme Discharge Capability: Engineered to safely dump massive amounts of continuous current (e.g., a 50C rating allows for 250 Amps of continuous draw), eliminating voltage sag during aggressive acceleration or heavy lifting.

• Heavy-Gauge Silicone Wiring: Utilizes premium, heat-resistant AWG wiring paired with high-amperage connectors (like XT90) to prevent melting and power bottlenecks under extreme electrical loads.

• Multi-Cell Balancing: Features a standard 5-pin JST-XH balance connector, allowing smart chargers to independently top off each of the four cells to exactly 4.2V, ensuring safe operation and preventing premature cell death.

Perfect For:

• Large-Scale Drones & UAVs: The industry standard for heavy-lift hexacopters, octocopters, and 7-inch to 10-inch FPV cinematic drones requiring immense thrust and long flight times.

• 1/8th Scale RC Vehicles: Provides blistering top speeds, massive torque, and long bash sessions for high-performance RC buggies, truggies, and monster trucks.

• Heavy-Duty Robotics: An exceptional main power source for large autonomous rovers, combat robots, and multi-axis mechanical arms that rely on high-voltage 12V-24V motor drivers.

• Portable Field Equipment: Highly effective for powering custom, high-wattage field gear, including portable HAM radio setups, high-intensity LED light banks, and mobile 12V/14V electronics stations.

Technical Specifications:

• Battery Chemistry: Lithium Polymer (LiPo)

• Cell Configuration: 4S1P (4 Cells in Series, 1 in Parallel)

• Nominal Voltage: 14.8V

• Fully Charged Voltage: 16.8V (4.2V per cell)

• Nominal Capacity: 5000mAh (5.0 Amp-hours)

• Typical Discharge Rate (C-Rating): 30C to 70C Continuous (Varies by manufacturer)

• Main Power Connector: Typically XT90, XT60, or EC5 (Verify before purchase)

• Balance Connector: 5-Pin JST-XH

• Approximate Dimensions: 155 mm x 45 mm x 35 mm (L x W x H) Dimensions vary slightly by brand

• Approximate Weight: 450 to 550 grams
