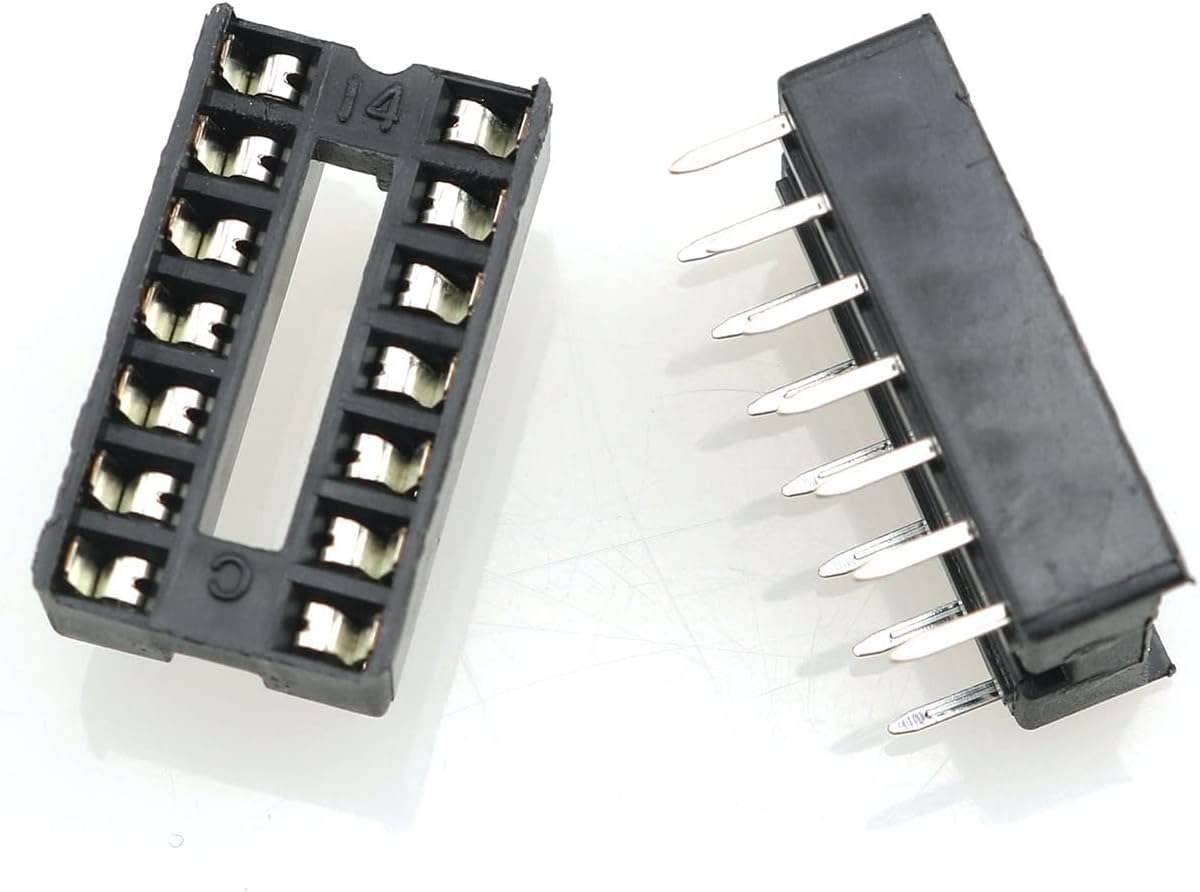

14-Pin DIP IC Socket Adaptor (0.300" Narrow Body - Through-Hole)

When your custom printed circuit board utilizes standard 14-pin integrated circuits—such as the ubiquitous LM324 quad operational amplifier, the 74HC04 hex inverter, or classic quad logic gates like the 74HC08—the 14-Pin DIP IC Socket is a crucial addition to your board design. Instead of soldering your sensitive silicon directly to the PCB and risking fatal thermal damage from your soldering iron, you permanently mount this rugged, heat-resistant thermoplastic socket to your board. Once the board is fully assembled and washed, you simply press your pristine IC into the socket's tensioned metallic contacts.

Beyond acting as a thermal shield during assembly, this socket makes hardware debugging, prototyping, and field repairs incredibly efficient. 14-pin chips are the backbone of analog signal processing and basic digital logic. In DIY audio and synthesizer building, using a socket allows for "chip rolling"—effortlessly swapping different 14-pin quad op-amps to fine-tune the frequency response or distortion characteristics of a circuit without touching a soldering iron. In logic design, it ensures that if a voltage spike destroys a logic gate, a simple $0.50 replacement takes seconds.

Key Features & Functional Advantages:

• Zero-Heat Installation: Completely isolates your integrated circuits from the destructive heat of manual hand-soldering, wave-soldering, and hot-air rework stations.

• Instantaneous Chip Swapping: Allows for immediate replacement of damaged logic gates or rapid swapping of operational amplifiers during iterative audio testing.

• Standardized 0.1" Pitch: The pins are perfectly spaced at 2.54mm (0.1 inches) apart, dropping flawlessly into standard perfboards, stripboards, and solderless breadboards.

• 0.300" Row Spacing: Specifically sized for the standard "narrow body" 14-pin footprint utilized by the vast majority of 14-pin DIP logic and analog ICs.

• Dual-Wipe Contacts: Features tensioned, dual-leaf metallic springs inside each pin slot that aggressively grip the flat legs of the IC, ensuring a highly reliable, low-resistance electrical connection even under vibration.

Perfect For:

• DIY Audio & Synthesizers: The mandatory physical mount for LM324, TL074, and LM339 quad op-amps and comparators used in custom guitar pedals, filters, and analog synths.

• Logic Gate Prototyping: Provides a safe, reusable housing for the massive family of 14-pin 74-series and 4000-series CMOS logic chips (AND, OR, NAND, XOR, Inverters).

• Clock & Timing Circuits: An excellent, secure mount for classic 14-pin timers and counters.

• Educational Prototyping: Ensures that classic logic gates can be safely inserted, removed, and reused across multiple permanent perfboard projects without risking the chips.

Technical Specifications:

• Pin Count: 14 Pins (2 rows of 7)

• Pin Pitch (Spacing between adjacent pins): 2.54 mm (0.1")

• Row Spacing (Distance between the two rows): 7.62 mm (0.300" - Narrow Body)

• Mounting Type: Through-Hole (PTH)

• Contact Style: Dual-Wipe / Leaf Spring (Standard)

• Housing Material: Black Thermoplastic (UL94V-0 Rated)

• Contact Material: Tin-plated Phosphor Bronze

• IC Compatibility: Any standard 14-pin, 0.300" wide DIP integrated circuit.
