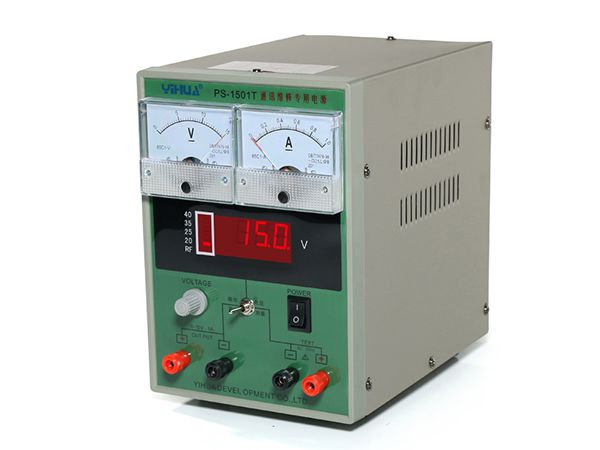

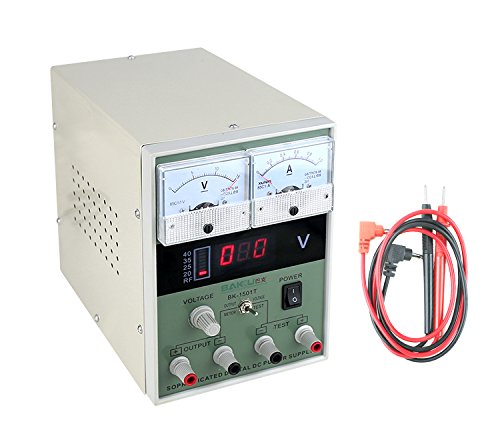

1501T Digital DC Power Supply (0-15V 1A Adjustable Bench Power Supply)

When you need a reliable, adjustable power source for testing small electronics or bringing a dead mobile phone back to life, the 1501T Digital DC Power Supply is the industry-standard tool for repair technicians. Unlike fixed wall adapters, this bench power supply gives you complete control over your power output. Using the precise front-panel knobs, you can dial in exactly the voltage you need—anywhere from 0 to 15 Volts—while independently setting a safe maximum current limit up to 1 Amp. This means you can power up a delicate circuit while ensuring it won't draw enough current to destroy itself if there is a short on the board.

What makes the 1501T highly unique compared to standard laboratory power supplies is its built-in diagnostic features tailored for the telecommunications and repair industry. It includes a dedicated Radio Frequency (RF) signal detection indicator that flashes when a connected mobile phone successfully transmits a signal. Additionally, it features a secondary voltage-test input, allowing the unit to double as a benchtop digital voltmeter. Housed in a rugged metal chassis with a clear digital readout, it is an indispensable tool for any electronics workbench.

Key Features & Functional Advantages

• Fully Adjustable Output: Provides precise, continuous control over the output voltage (0 to 15 Volts) and output current (0 to 1 Amp), allowing you to safely power a massive variety of low-voltage electronics.

• Rapid Short-Circuit Protection: Features an advanced, fast-acting protection circuit. If your connected device has a short circuit, the supply instantly cuts power and triggers an alarm, then automatically recovers once the short is removed.

• Integrated RF Detection: Includes a built-in RF signal indicator on the front panel that visually flashes when nearby cellular or radio transmission is detected, making it perfect for diagnosing phone antennas.

• Built-in Voltmeter Function: The front panel toggle allows you to switch the digital display from monitoring its own power output to acting as a standalone voltmeter, capable of reading external DC voltages up to 49.9 Volts.

• Clear Digital Display: The bright digital screen provides real-time, highly accurate readouts of both your voltage and current consumption, allowing you to easily spot abnormal power draws.

Perfect For

• Mobile Phone Repair: The absolute standard tool for "booting" mobile phones without their batteries to diagnose power-on failures and test cellular transmission.

• Electronics Diagnostics: Safely injecting low voltage into a dead motherboard or circuit to find shorted components without causing further damage.

• Educational Labs: A fantastic, affordable entry-level bench power supply for students learning how to test basic circuits, LEDs, and logic boards.

• General Prototyping: Providing the exact custom voltage needed for new hardware designs before a permanent power regulation circuit is built.

Technical Specifications

• Device Type: Adjustable Linear Bench DC Power Supply

• Input Voltage: 220 Volts AC (50 Hertz)

• Output Voltage Range: 0.0 Volts to 15.0 Volts DC (Continuously Adjustable)

• Output Current Range: 0.0 Amps to 1.0 Amp (Adjustable Current Limiting)

• Voltage Test Range: 0.0 Volts to 49.9 Volts DC

• Display Type: Digital Readout (Simultaneous Voltage and Current)

• Chassis: Grounded Metal Enclosure with internal active cooling
