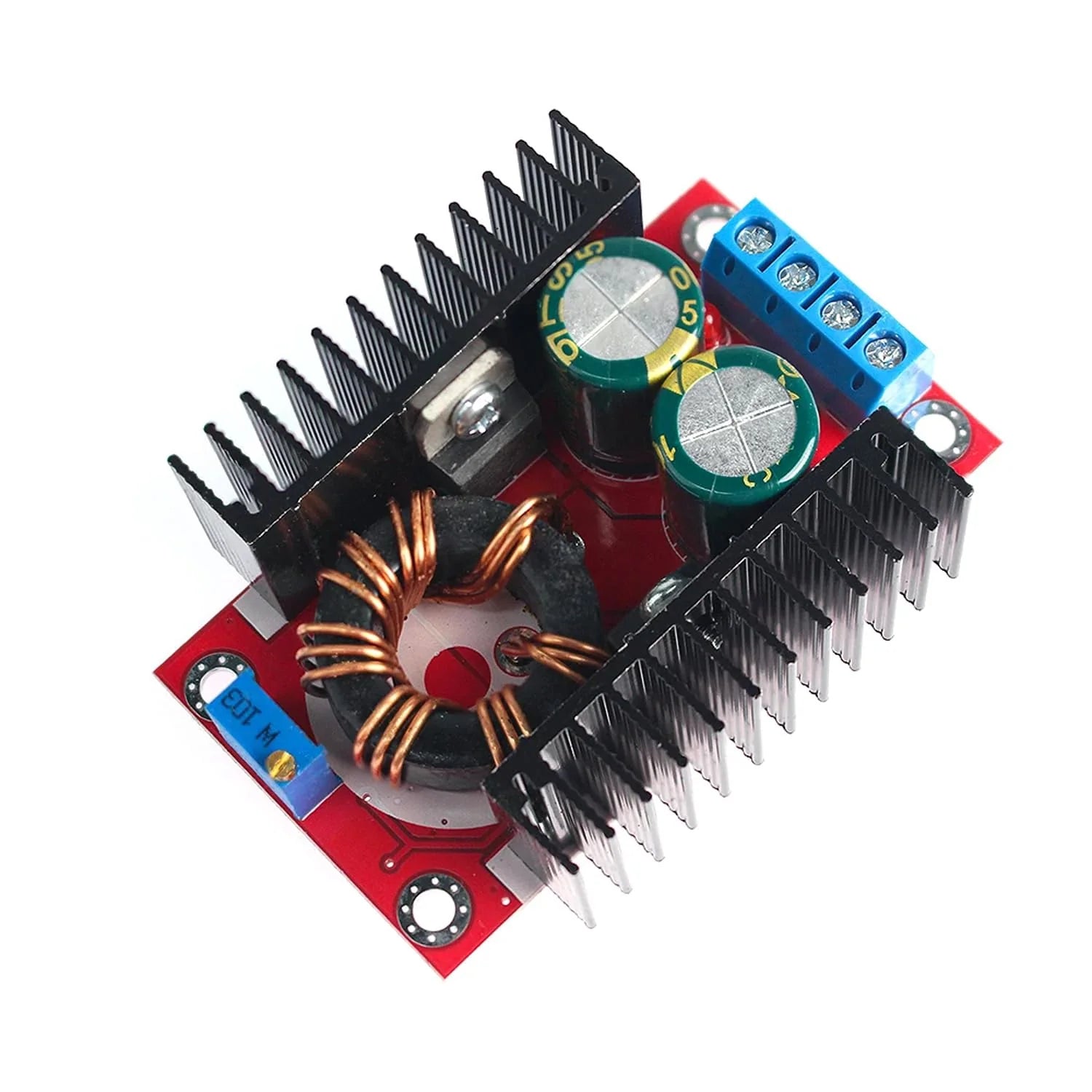

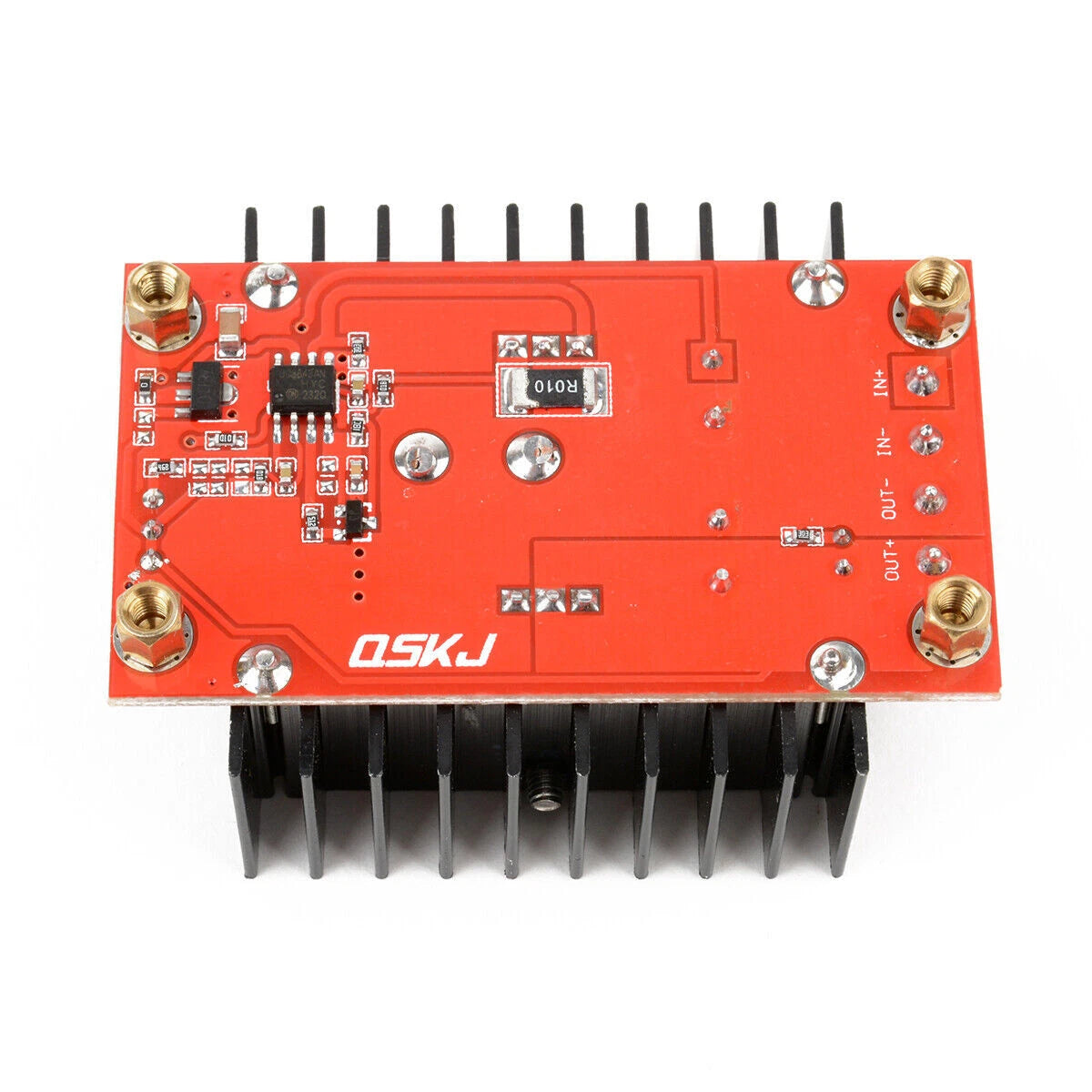

150W DC-DC Boost Converter 10–32V to 12–35V 6A Step-Up Power Module
Couldn't load pickup availability
Secure checkout
Friendly support
Hassle-free returns
Technical Specifications:
- Module Type: DC-DC Boost (Step-Up) Converter
- Input Voltage: 10–32V DC
- Output Voltage: Adjustable 12–35V DC
- Maximum Output Power: 150W
- Maximum Output Current: 6A
- Conversion Efficiency: Up to 92% (depending on input/output conditions)
- Switching Frequency: Approx. 150kHz
- Voltage Regulation: Adjustable
- Protection:
- Over-current protection
- Over-temperature protection
- Short-circuit protection
- Cooling: Integrated heat sink
Package Includes:
- 1 × 150W DC-DC Boost Converter Module 10–32V to 12–35V 6A
Note: For maximum power output, ensure adequate cooling and sufficient input current capability. The actual output power depends on input voltage, output voltage, and thermal conditions.
