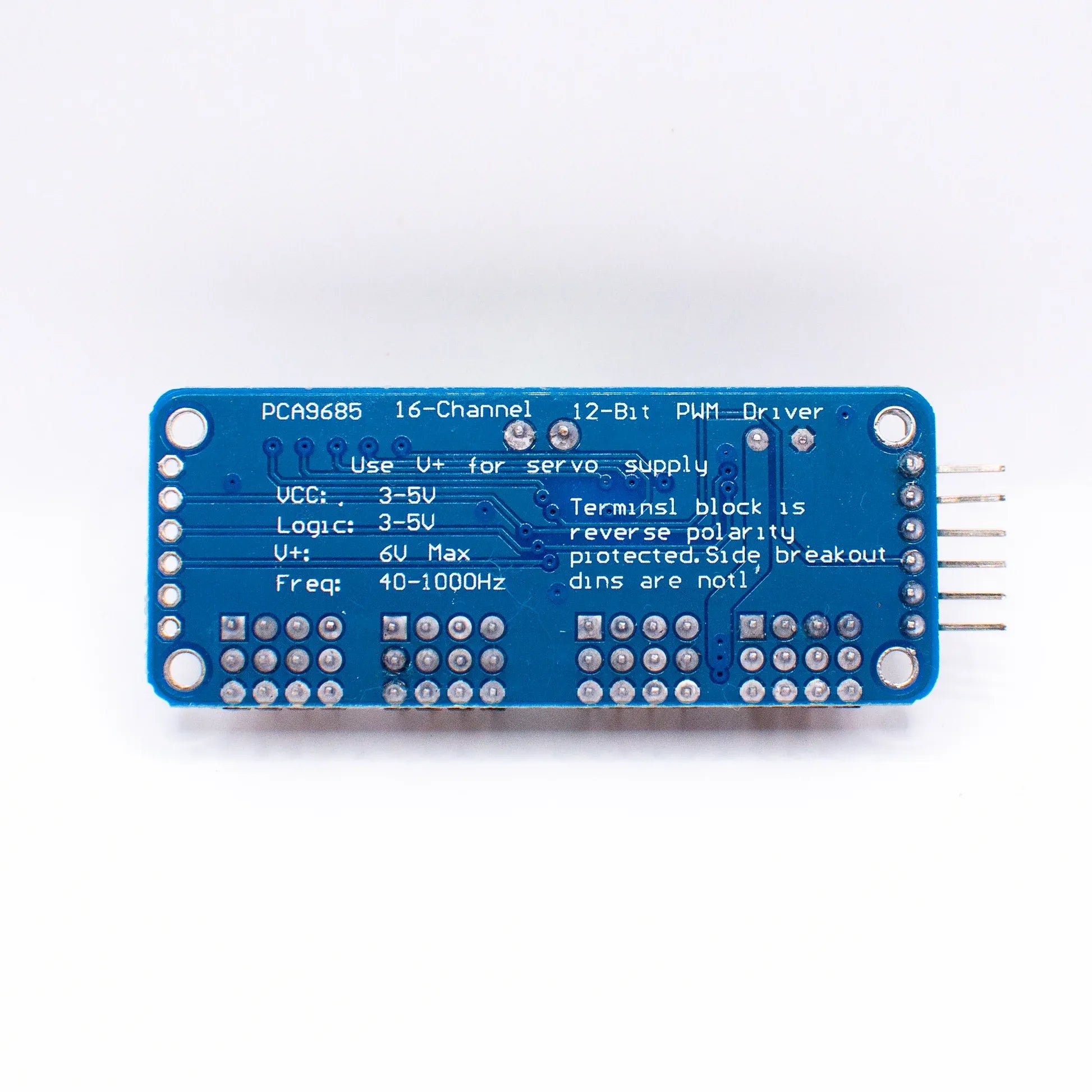

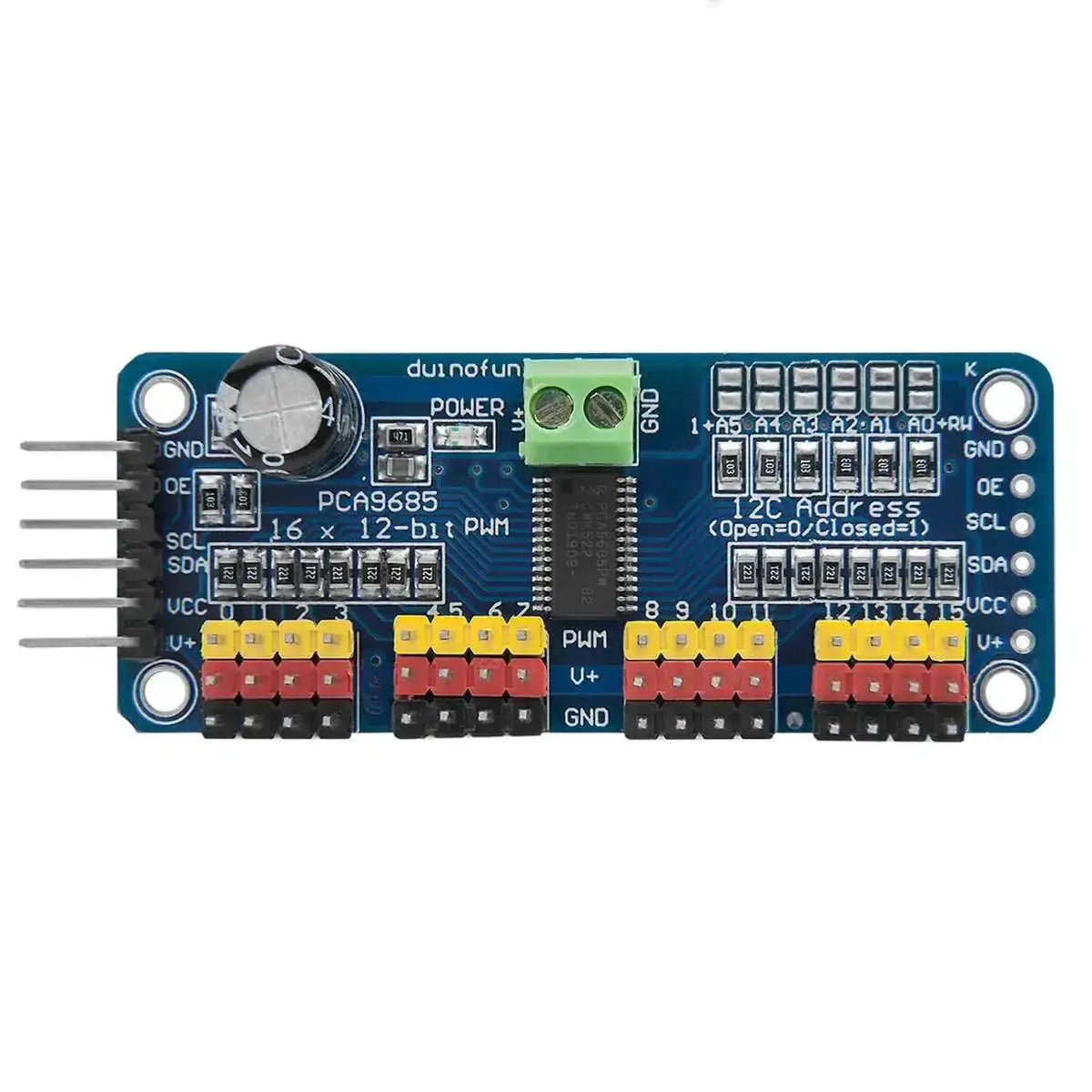

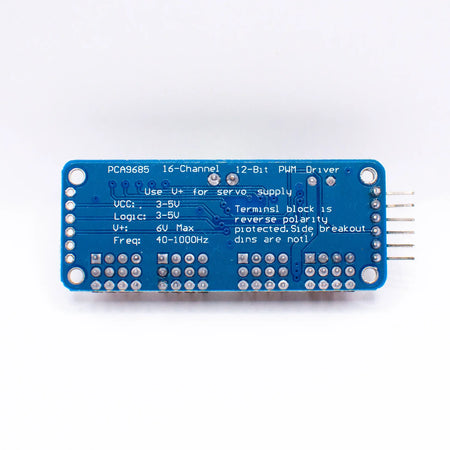

16-Channel 12-bit PWM Servo Driver PCA9685 Module

K-TECHNICS
In stock
KSh800.00

Secure checkout

Friendly support

Hassle-free returns

Take precise control of your servo motors and LEDs with the PCA9685 16-channel PWM driver module. Designed for efficiency and scalability, this module lets you control up to 16 servos using only two I2C pins, making it perfect for robotics, automation, and IoT projects.

Ideal for Arduino, Raspberry Pi, and other microcontroller platforms, the PCA9685 offloads PWM generation, ensuring smooth and jitter-free performance without burdening your main processor.

Key Features & Technical Details:

  • 16 independent PWM channels
  • 12-bit resolution (4096 steps per channel)
  • I2C interface (only 2 pins required)
  • Adjustable PWM frequency (approx. 40Hz to 1000Hz)
  • Supports up to 62 modules on a single I2C bus (expandable to 992 outputs)
  • Dedicated external power input for servos (up to 6V)
  • Built-in clock for stable PWM signal generation
  • Compatible with Arduino, Raspberry Pi, ESP32, and more
  • Low power consumption and high efficiency

Applications:

  • Robotics (multi-servo control)
  • LED dimming and lighting systems
  • Automation projects
  • RC vehicles and animatronics
  • DIY electronics and prototyping

What’s in the Box:

  • 1 × PCA9685 16-Channel PWM/Servo Driver Module
