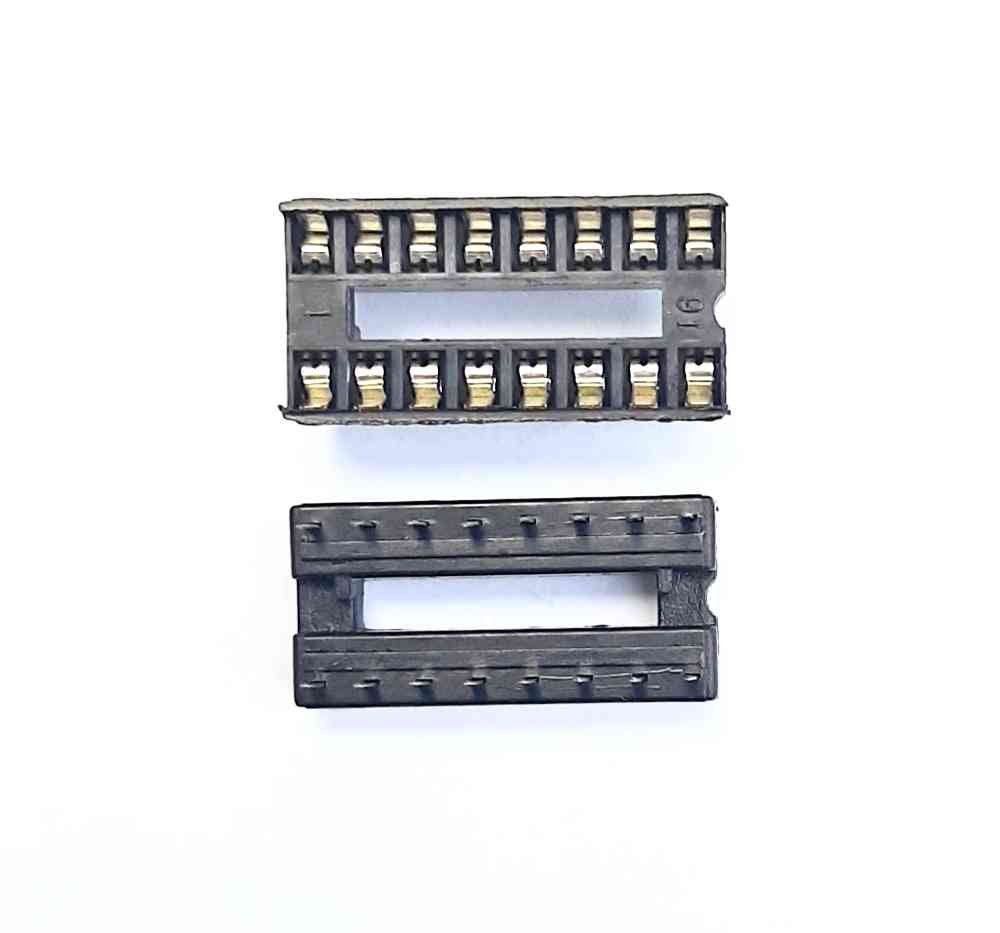

16-Pin DIP IC Socket Adaptor (0.300" Narrow Body - Through-Hole)

When your custom printed circuit board utilizes standard 16-pin integrated circuits—such as the classic CD4000-series CMOS logic, 74HC series shift registers, the L293D quadruple half-H driver, or multiplexers like the CD4051—the 16-Pin DIP IC Socket is an indispensable component. Instead of soldering your sensitive silicon directly to the PCB and risking fatal thermal damage from your soldering iron, you permanently mount this rugged, heat-resistant thermoplastic socket to your board. Once the board is fully assembled, cooled, and cleaned of flux, you simply press your pristine IC into the socket's tensioned metallic contacts.

Beyond acting as a thermal shield during assembly, this socket makes hardware debugging, prototyping, and field repairs incredibly efficient. 16-pin chips like the L293D are frequently used to drive inductive loads like DC motors and stepper motors. Because they handle relatively high currents and flyback voltages, they are highly susceptible to burning out if a motor stalls or shorts. With a socket in place, you do not need to desolder 16 delicate pins to resurrect the board; you just pry out the burnt chip and snap a fresh replacement directly into the socket.

Key Features & Functional Advantages:

• Zero-Heat Installation: Completely isolates your integrated circuits from the destructive heat of manual hand-soldering, wave-soldering, and hot-air rework stations.

• Instantaneous Chip Swapping: Allows for immediate replacement of damaged high-current motor drivers or rapid swapping of logic chips during iterative hardware testing.

• Standardized 0.1" Pitch: The pins are perfectly spaced at 2.54mm (0.1 inches) apart, dropping flawlessly into standard perfboards, stripboards, and solderless breadboards.

• 0.300" Row Spacing: Specifically sized for the standard "narrow body" 16-pin footprint utilized by the vast majority of 16-pin DIP logic and driver ICs.

• Dual-Wipe Contacts: Features tensioned, dual-leaf metallic springs inside each pin slot that aggressively grip the flat legs of the IC, ensuring a highly reliable, low-resistance electrical connection even under vibration.

Perfect For:

• Motor Control Boards: The mandatory physical mount for L293D or SN754410 motor drivers used to safely drive small DC motors and stepper motors from a microcontroller.

• I/O Expansion & Multiplexing: Provides a safe, reusable housing for 74HC595 shift registers (for driving LEDs) or CD4051 analog multiplexers (for reading multiple sensors on a single ADC pin).

• DIY Audio & Synthesizers: An excellent, secure mount for classic 16-pin audio ICs and bucket-brigade delay chips used in custom guitar pedals and analog synths.

• Logic Gate Prototyping: Ensures that classic AND/OR/NAND logic gates can be safely inserted, removed, and reused across multiple permanent perfboard projects without risking the chips.

Technical Specifications:

• Pin Count: 16 Pins (2 rows of 8)

• Pin Pitch (Spacing between adjacent pins): 2.54 mm (0.1")

• Row Spacing (Distance between the two rows): 7.62 mm (0.300" - Narrow Body)

• Mounting Type: Through-Hole (PTH)

• Contact Style: Dual-Wipe / Leaf Spring (Standard)

• Housing Material: Black Thermoplastic (UL94V-0 Rated)

• Contact Material: Tin-plated Phosphor Bronze

• IC Compatibility: Any standard 16-pin, 0.300" wide DIP integrated circuit.
