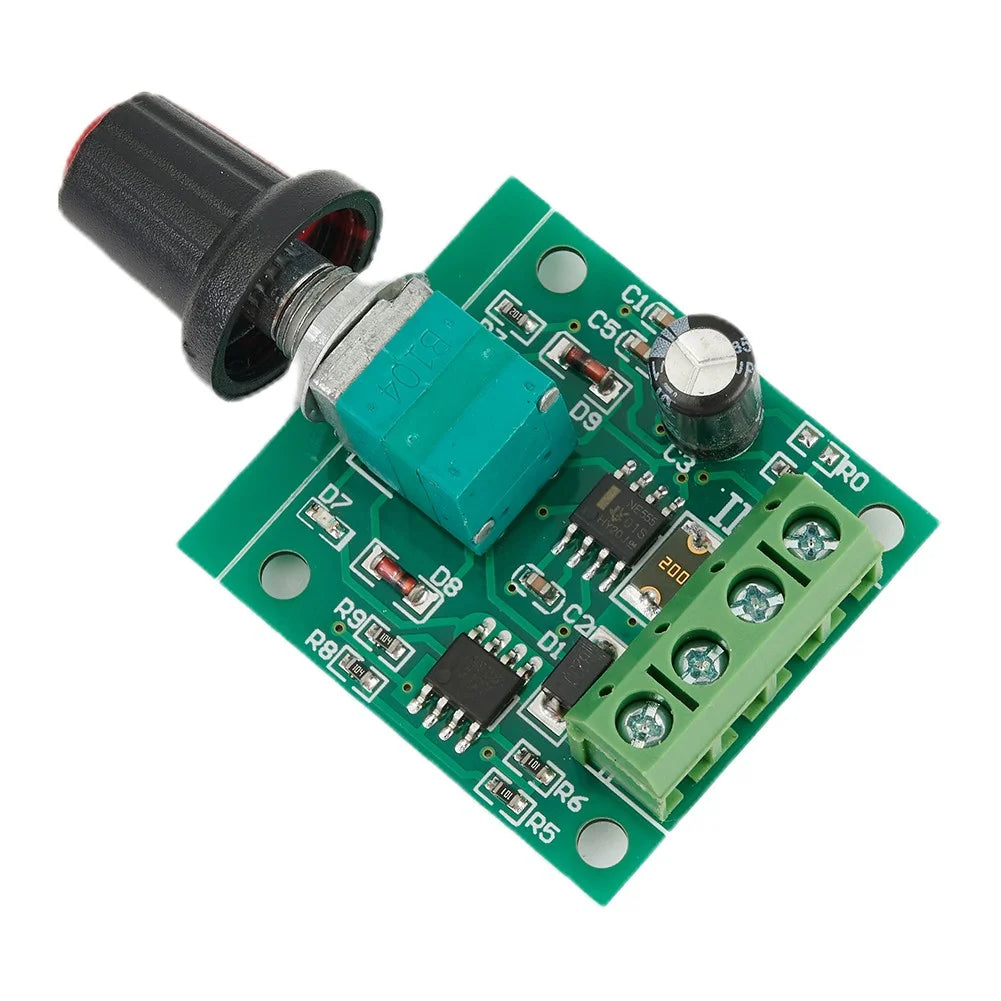

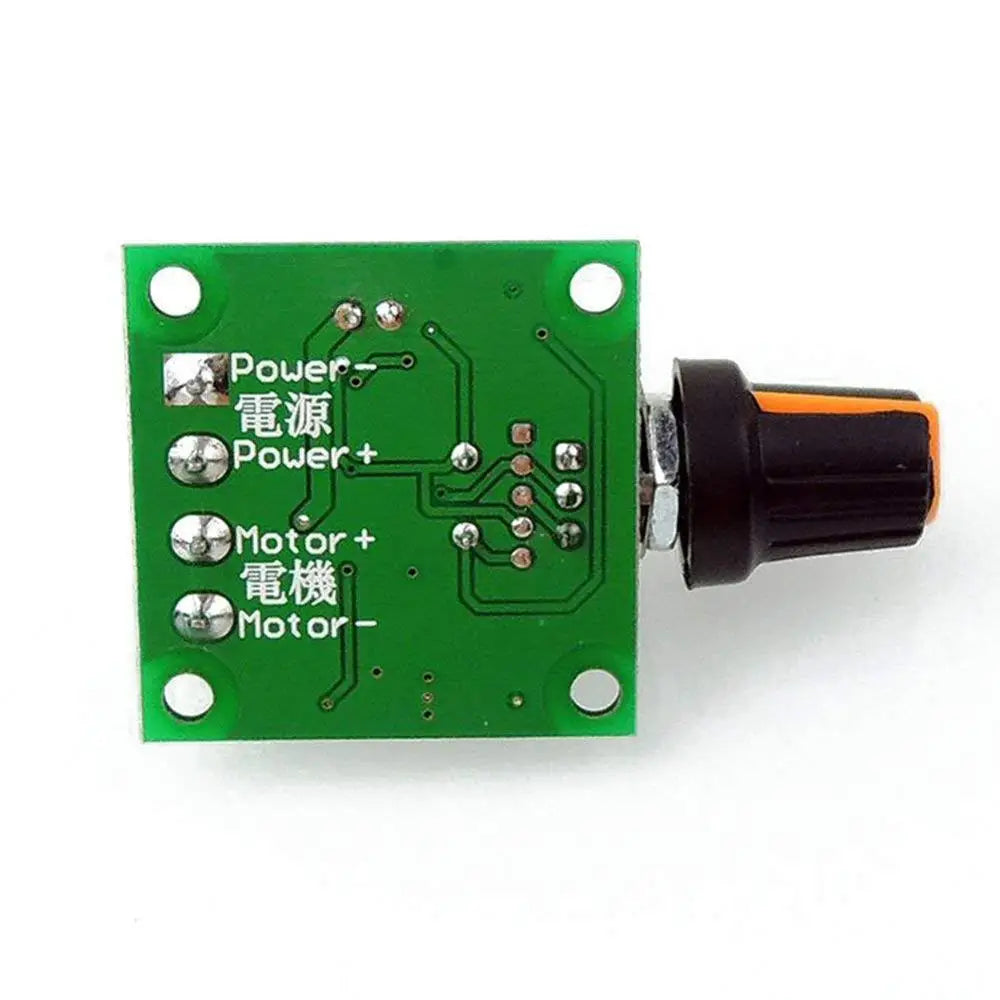

1803BK Mini PWM DC Motor Speed controller Regulator

K-TECHNICS
Out of stock
KSh400.00

Secure checkout

Friendly support

Hassle-free returns

The 1803BK DC Motor Speed Regulator is an ultra-compact, low-voltage module designed to control the speed of small brushed DC motors or adjust the brightness of low-power LEDs using Pulse Width Modulation (PWM). It is widely favored in hobby electronics, small robotics, and DIY automation due to its built-in safety features and plug-and-play simplicity.

Core Technical Specifications
  • Input Supply Voltage: 1.8V to 15V DC (Note: Powering above 12V is not universally recommended by all manufacturers to prevent overheating).
  • Maximum Continuous Current: 2A
  • Maximum Output Power: 30W
  • PWM Duty Cycle: Fully adjustable from 0% to 100% via the onboard potentiometer knob.
  • Dimensions: 32 mm × 32 mm × 15 mm
  • Weight: Approximately 14 grams
