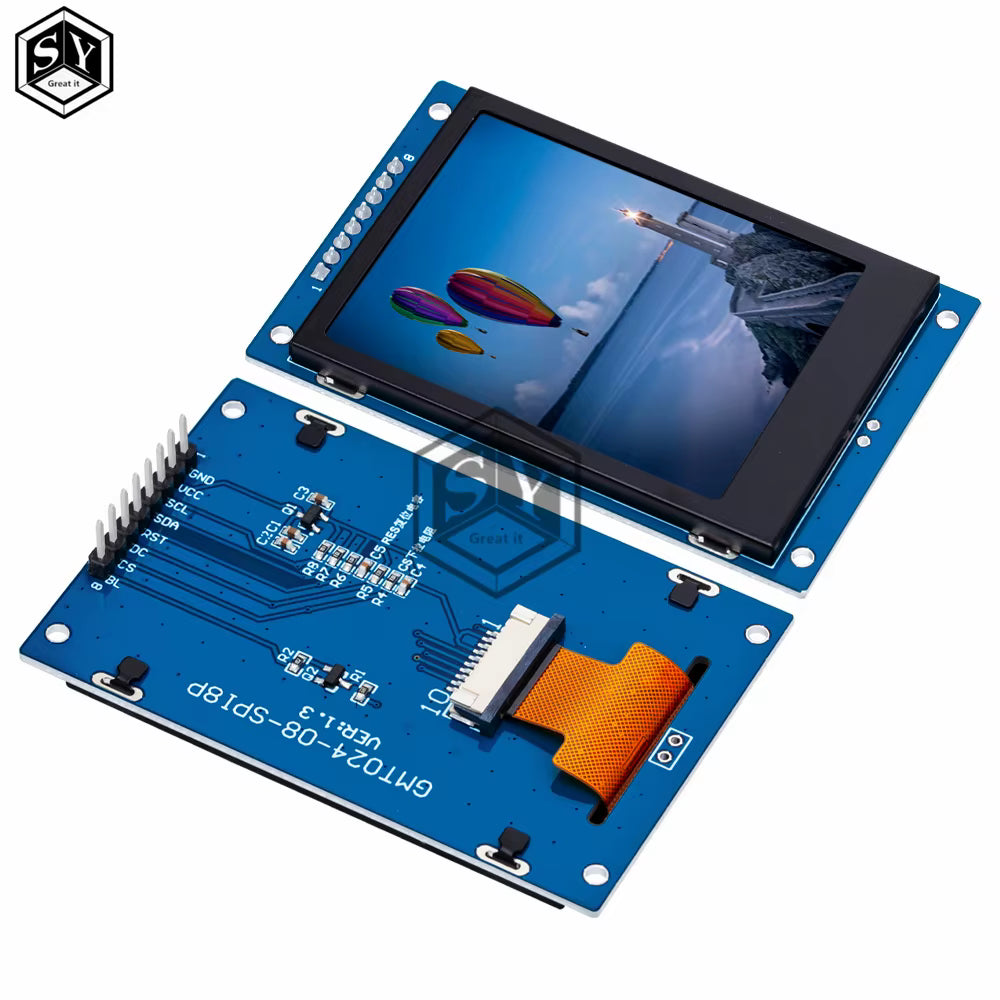

2.4″ inch 240*320 SPI TFT LCD Module Display Screen with ST7789 Driver

K-TECHNICS
Out of stock
KSh1,500.00

Secure checkout

Friendly support

Hassle-free returns

The 2.4″ 240x320 SPI TFT LCD Module driven by the ST7789 IC is a high-resolution, full-color ⁠IPS display panel widely used for rich graphical user interfaces (GUIs) in microcontroller projects.
Key Technical Specifications
  • Screen Size: 2.4 inches diagonal
  • Resolution: 240 x 320 pixels (QVGA)
  • Driver IC: ST7789 / ST7789V
  • Display Technology: IPS (In-Plane Switching) providing vivid 16-bit/18-bit color depth and 170° wide viewing angles.
  • Interface: 4-wire Serial Peripheral Interface (SPI)
  • Operating Voltage: 3.3V (VCC and Logic)
Typical 8-Pin SPI Pinout Guide

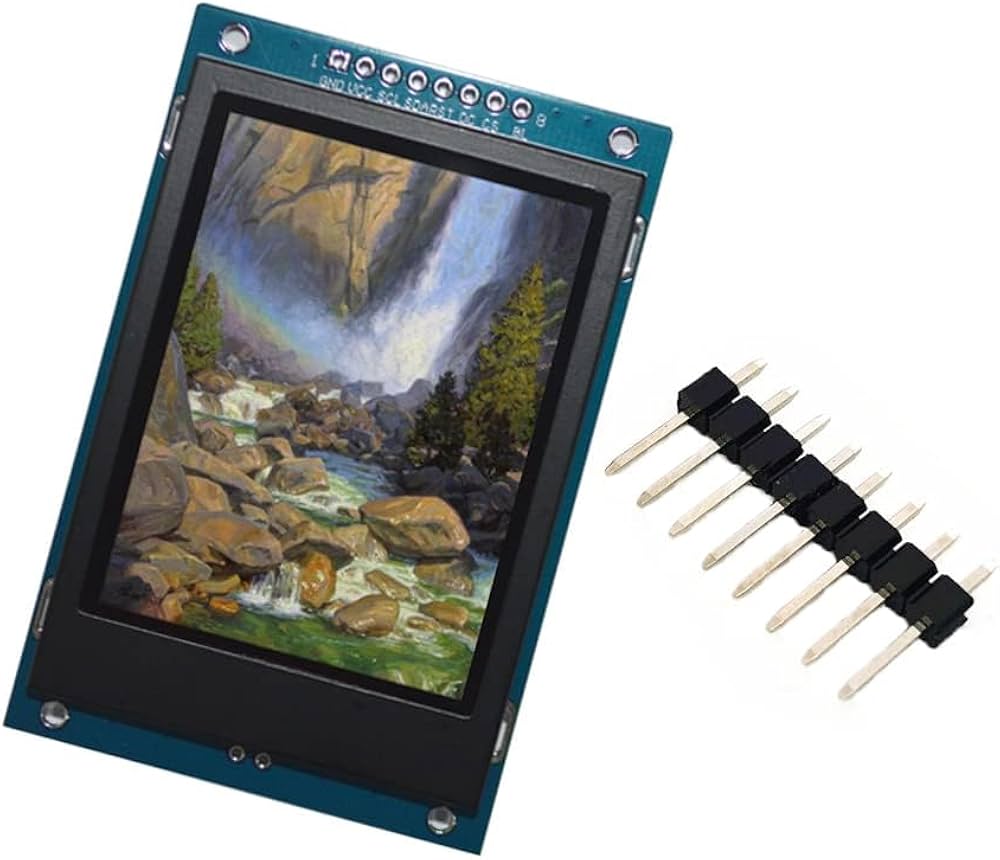

Most generic breakout boards for this module expose an 8-pin header:
  • GND: Power Ground.
  • VCC: Power supply (Connect to 3.3V; some boards with an onboard regulator can accept 5V).
  • SCL / SCK: SPI Clock input.
  • SDA / MOSI: SPI Master Out Slave In data line.
  • RES / RST: Reset pin (used to initialize the screen).
  • DC / RS: Data/Command selection pin.
  • CS: Chip Select pin (enables/disables the SPI device).
  • BLK / LED: Backlight control pin (connect to 3.3V for always-on, or a PWM pin for brightness control).
