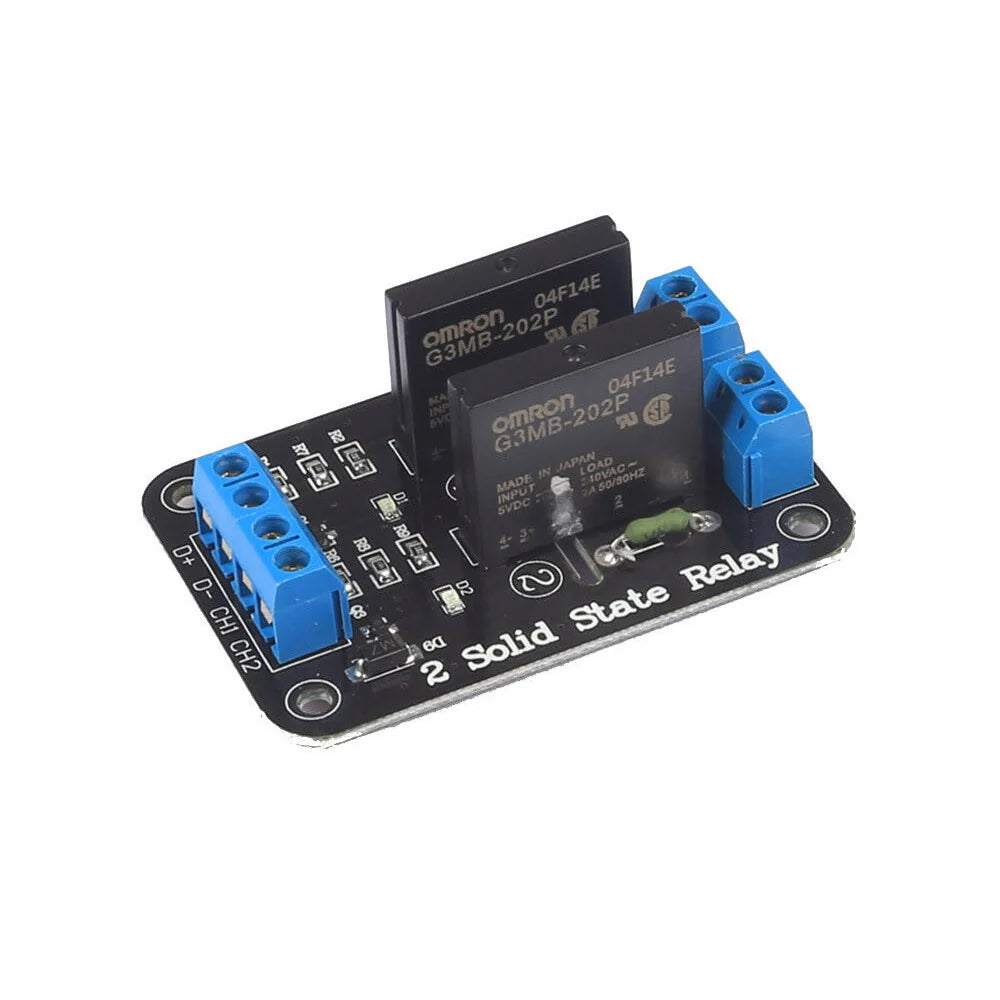

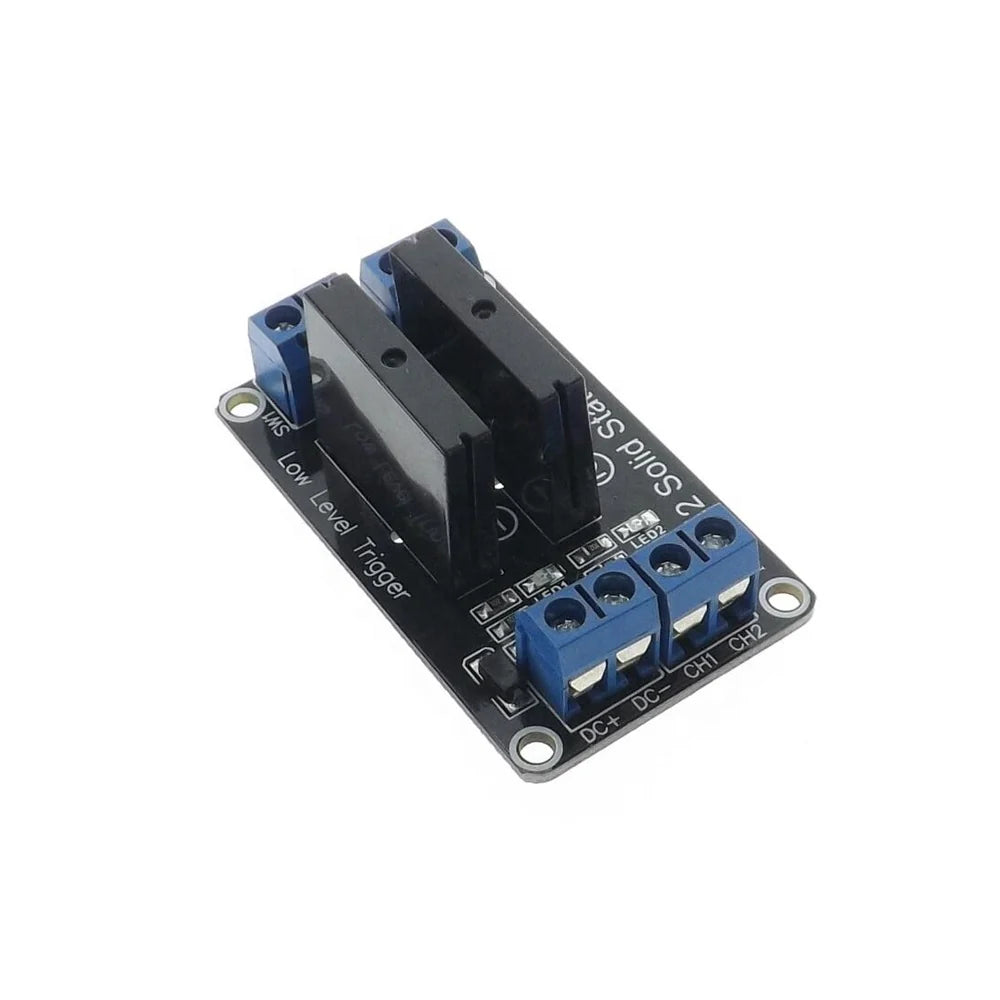

2 Channel 5V SSR G3MB-202P 2A Solid State Relay Module

K-TECHNICS
In stock
KSh600.00

Secure checkout

Friendly support

Hassle-free returns

The 2-Channel 5V SSR G3MB-202P 2A Solid State Relay Module is a compact, silent electronic switching board designed for microcontrollers. It allows low-voltage digital circuits to safely control mains-powered AC devices up to 2 Amperes per channel without any moving mechanical parts.
Technical Specifications
The standard module utilizes original Omron G3MB-202P IC components with these default ratings:
  • Operating Input Voltage: 5 VDC (operational between 4 V and 6 V).
  • Operating Signal Current: Approximately 12.5 mA to 16 mA per channel.
  • Maximum Load Voltage: 100 V to 240 VAC (50/60 Hz).
  • Maximum Load Current: 2 A continuous per channel.
  • Trigger Type: Low-Level Trigger (0 V to 2.5 V turns the relay ON; 3.3 V to 5 V turns it OFF).
  • Switching Method: Zero-Cross function built-in, suppressing electrical noise by activating exactly when the AC voltage crosses 0 V.
