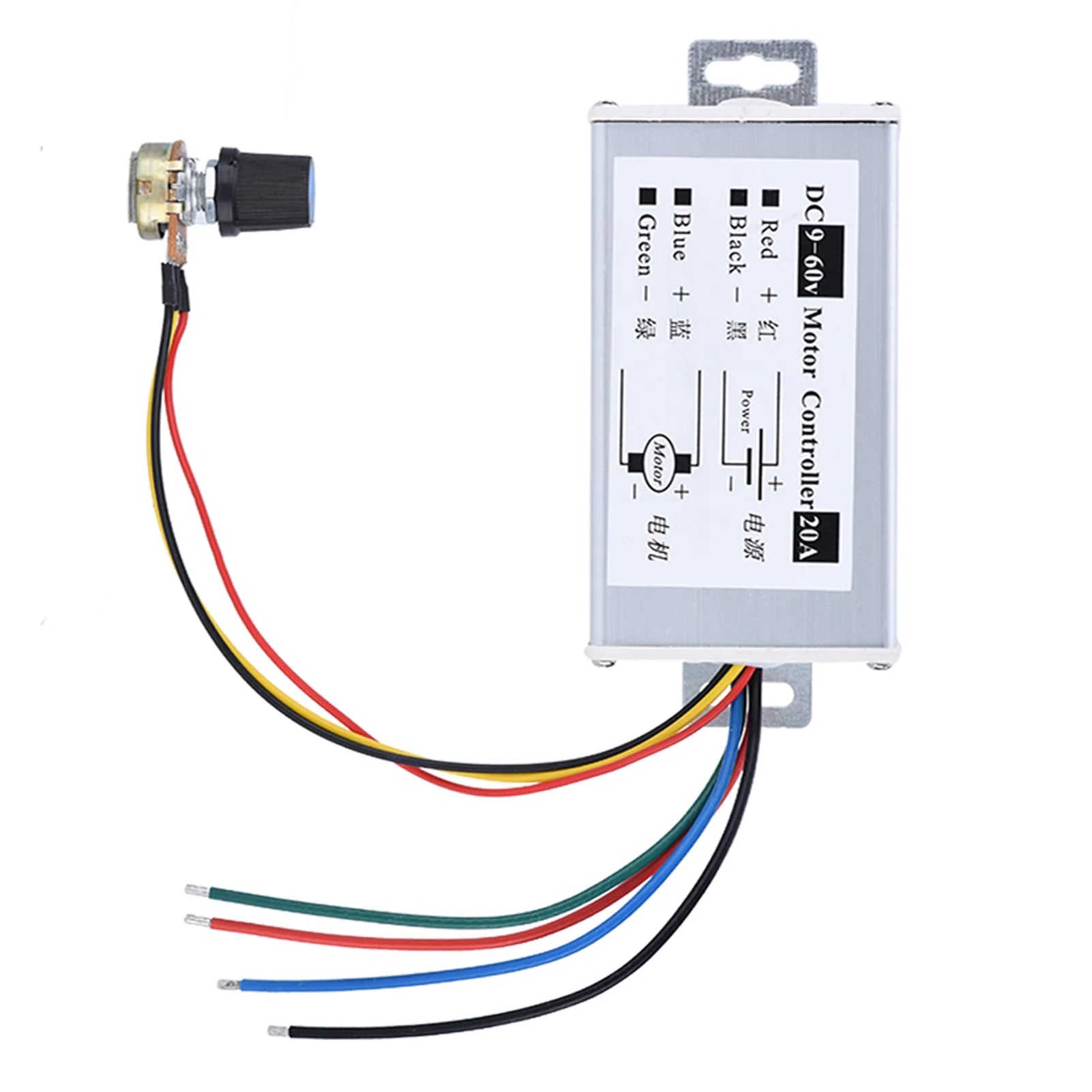

20A PWM DC Motor Speed Regulator Module (9V-60V)

The 20A PWM DC Motor Speed Regulator Module (9V-60V) is suitable for the DC brushed motor (or DC load) within 20A.
It comes with the metal shell and connective label, which makes it very easy to install and use.
It has potentiometer with adjust speed switch function, and button switch function.
Note: Before you attempt to wire the controller, make sure power is off.

Features:

• Adjustable speed range: 0%-100%.

• Speed adjustment way: Potentiometer.

• Output voltage: Linear under load.

• Speed control type: Basins.

• Output voltage: Load Linear

• Type: Adjusting flow

• The motor running condition adjustment: Forward /Stop / Reverse

• Reverse polarity protection: Yes.

• Suitable Motor: DC brush motors.

Specifications:-

•  Driver Model: 20A PWM DC Motor Speed Regulator

• Operating Voltage (VDC): 9 ~ 60

• Peak Current (A): 20

• Continuous Current (A): 18

• Continuous power: 1200W

• PWM frequency: 25KHz.

• No. of Channels: 1

• Battery Protection Mode: No

• Thermal Protection: Yes

• LED Indicator: Yes

• Cable Length (cm): 13

• Cooling Fan: No

• Sheild: No- can be used with Wire connection

• Speed Control: Yes

• Polarity Protection: Yes

• Dimensions in mm (LxWxH): 90 x 50 x 35

• Weight (gm): 135

Package Includes:-

 1x20A PWM DC Motor Speed Regulator Module (9V-60V)
