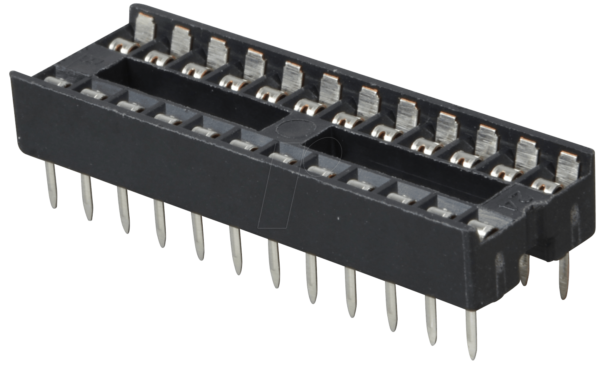

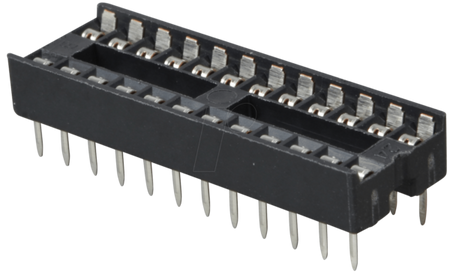

24-Pin DIP IC Socket Adaptor (Available in 0.300" Narrow & 0.600" Wide Body - Through-Hole)

When your custom PCB designs graduate to utilizing complex 24-pin integrated circuits—such as dedicated Analog-to-Digital Converters (ADCs), EEPROMs, or specialized multi-channel LED drivers—the 24-Pin DIP IC Socket is an absolute necessity. Instead of subjecting these expensive, highly sensitive pieces of silicon directly to the extreme heat of your soldering iron, you permanently mount this rugged, heat-resistant thermoplastic socket to your board. Once the surrounding components are soldered and the flux is cleaned away, you simply press your pristine IC into the tensioned metallic contacts.

Unlike smaller pin counts, 24-pin ICs are unique because they commonly exist in two distinct widths: the 0.300" "Skinny DIP" (often used for modern SRAM and ADCs) and the 0.600" Wide Body (traditionally used for EPROMs and older microcontrollers). Regardless of the width, using a socket transforms your hardware development cycle. If an unexpected voltage spike during a high-power telemetry test damages your main metering IC, you do not need to spend an hour meticulously desoldering 24 separate pins. You simply extract the damaged chip with an IC puller and snap a fresh one right into the socket.

Key Features & Functional Advantages:

• Zero-Heat Assembly: Completely isolates your high-value, heat-sensitive integrated circuits from the destructive thermal shock of manual hand-soldering and hot-air rework.

• Instantaneous Swapping: Allows for immediate component replacement, which is critical during iterative prototype testing where firmware tweaks might require physically swapping out ROMs or EEPROMs.

• Standardized 0.1" Pitch: The pins are perfectly spaced at 2.54mm (0.1 inches) apart, dropping flawlessly into standard perfboards, stripboards, and solderless breadboards.

• Dual-Wipe Contacts: Features heavy-duty, dual-leaf metallic springs inside each pin slot. These aggressively grip both sides of the IC's legs, ensuring a highly reliable, low-resistance electrical connection that withstands mechanical vibration.

• Two Width Variants: Available in both 0.300" (Narrow/Skinny) and 0.600" (Wide) row spacing to perfectly match the specific physical footprint of your chosen IC.

Perfect For:

• Energy Metering Prototypes: The safest physical housing for mounting specialized 24-pin energy measurement ICs and high-resolution ADCs when developing custom AC/DC telemetry hardware.

• Memory Expansion Boards: Provides a secure, reusable mount for 24-pin EEPROMs and SRAM chips in custom data-logging nodes where memory ICs may need to be physically swapped for reading.

• Custom Display Drivers: Highly useful for socketing large 24-pin LED matrix drivers or complex shift registers on permanent perfboard installations.

• Vintage Audio & Computing: The standard, low-cost replacement part for restoring classic synthesizers, drum machines, and 8-bit computers that utilize socketed 24-pin sound and memory chips.

Technical Specifications:

• Pin Count: 24 Pins (2 rows of 12)

• Pin Pitch (Spacing between adjacent pins): 2.54 mm (0.1")

• Row Spacing Options: 7.62 mm (0.300" - Narrow Body) OR 15.24 mm (0.600" - Wide Body)

• Mounting Type: Through-Hole (PTH)

• Contact Style: Dual-Wipe / Leaf Spring (Standard)

• Housing Material: Black Thermoplastic (UL94V-0 Rated)

• Contact Material: Tin-plated Phosphor Bronze

• IC Compatibility: Any standard 24-pin DIP integrated circuit (ensure you select the correct row spacing for your specific chip).
