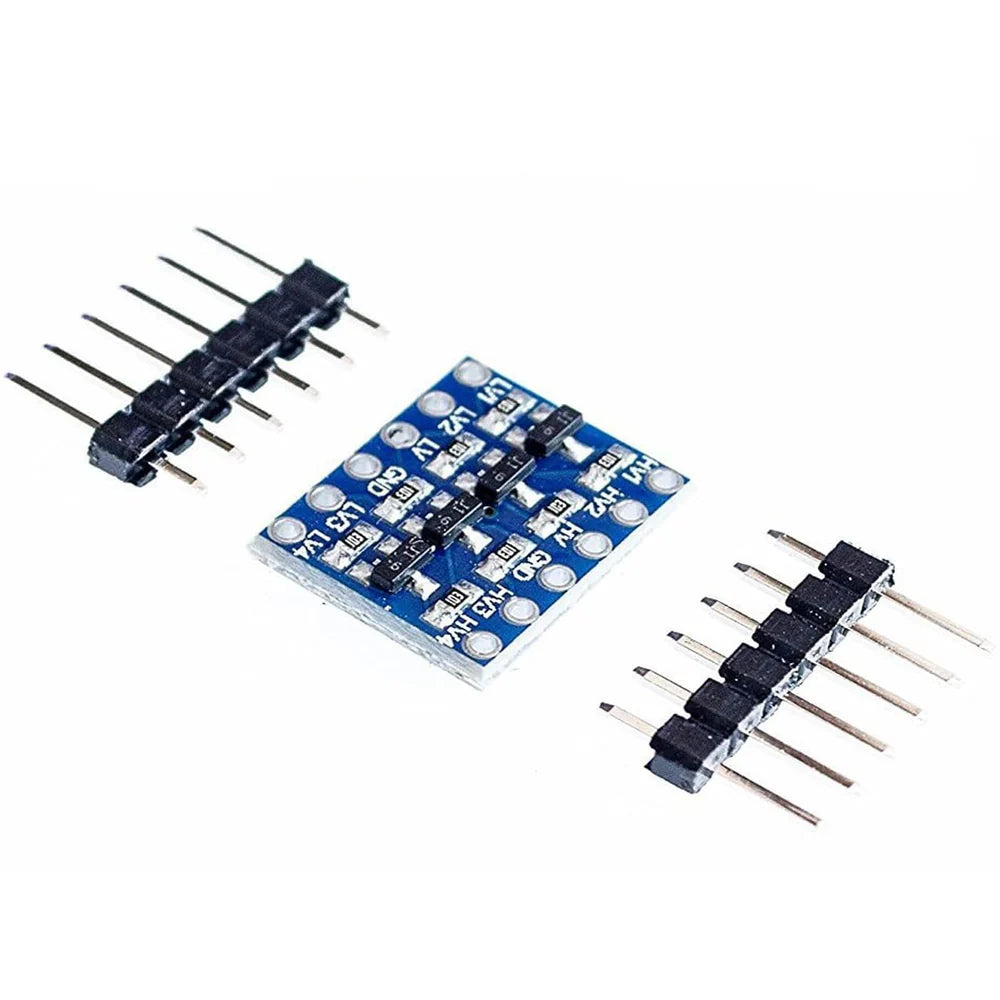

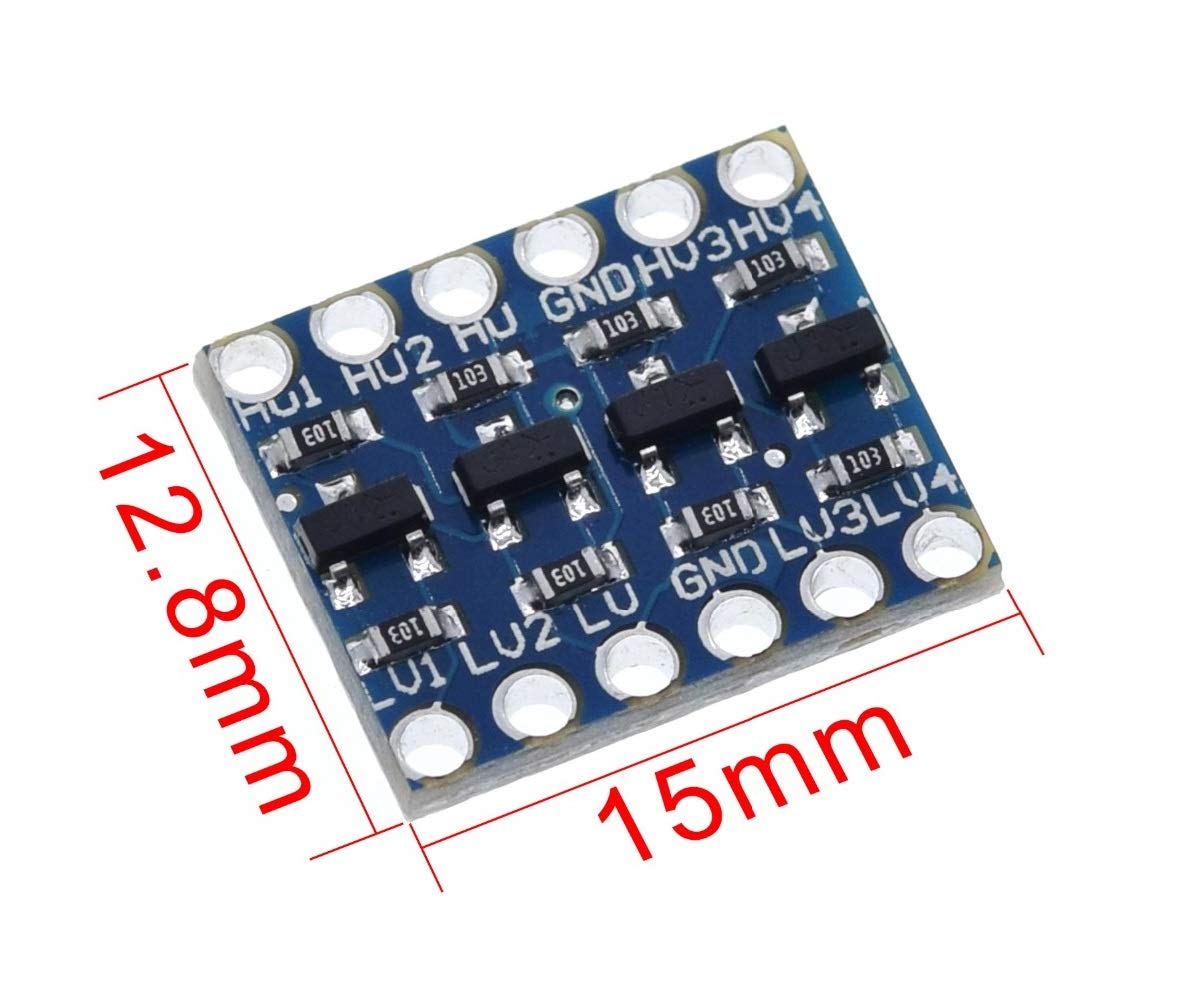

4 Channel IIC I2C Logic Level Converter Bi-Directional Module 5V to 3.3V

K-TECHNICS
Out of stock
KSh150.00

Secure checkout

Friendly support

Hassle-free returns

A 4-Channel Bi-Directional Logic Level Converter safely shifts digital signals between 5V and 3.3V, protecting lower-voltage microcontrollers (like ESP32 or Raspberry Pi) from higher-voltage devices (like standard Arduinos or 5V sensors).

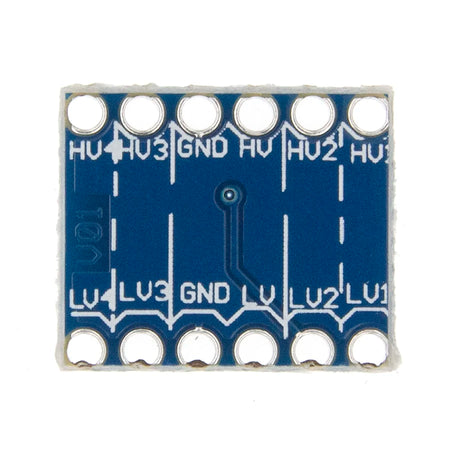

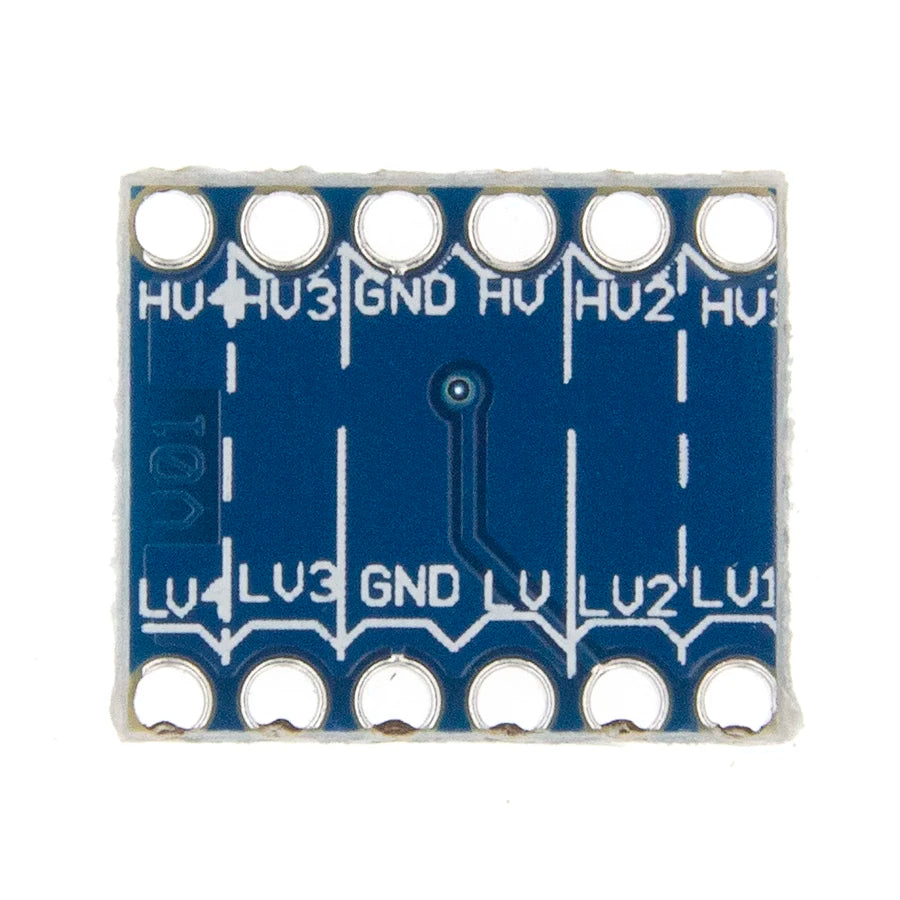

Pin Connections
  • HV: 5V Power Supply
  • LV: 3.3V Power Supply
  • GND: Common Ground (connect to both devices)
  • HV1 to HV4: 5V Data Pins
  • LV1 to LV4: 3.3V Data Pins
  • Protocols: Works with I2C, SPI, UART, and 1-Wire.
