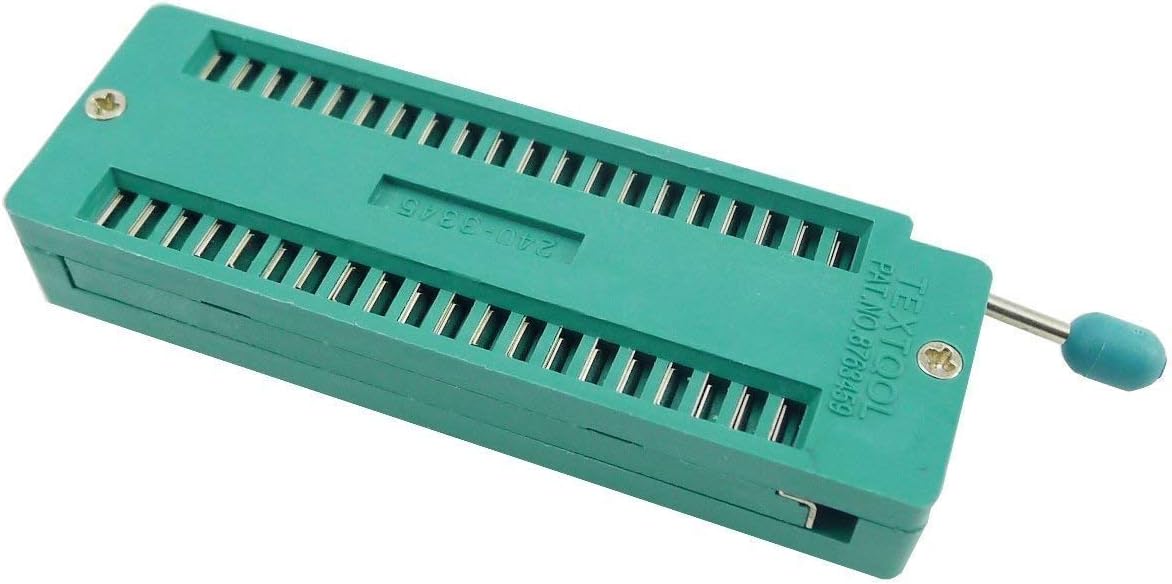

40-Pin ZIF Socket (Zero Insertion Force - Locking IC Seat)

While standard 40-pin DIP sockets are excellent for permanent installation on a finished circuit board, they have a major drawback: inserting and removing a massive 40-pin microcontroller requires significant force. Doing this repeatedly inevitably leads to bent pins, damaged silicon, and worn-out socket contacts. Enter the 40-Pin ZIF (Zero Insertion Force) Socket, commonly referred to as a locking IC seat. This oversized, lever-actuated socket is designed specifically for environments where integrated circuits need to be swapped in and out dozens, hundreds, or even thousands of times.

The magic of the ZIF socket lies in its mechanical lever. When the lever is raised, the internal metallic contacts spread wide open. You can drop an expensive ATmega1284P or a classic Z80 processor into the socket with literally zero physical resistance. Once the chip is seated, pushing the lever down mechanically clamps the internal contacts tightly against the legs of the IC, creating a flawless, low-resistance electrical connection. When you are burning bootloaders onto a fresh batch of microcontrollers for a multi-tier production run, this locking seat turns a tedious, high-risk chore into a rapid, assembly-line process.

Key Features & Functional Advantages:

• Zero Insertion Force: Completely eliminates the risk of bending or snapping the delicate legs of your expensive microcontrollers during insertion and extraction.

• Lever-Actuated Locking: Provides an incredibly secure, high-pressure mechanical grip on the IC legs, ensuring perfect data transmission during high-speed firmware uploads.

• Universal Width Compatibility: Unlike standard sockets, the internal clamping mechanism of a 40-pin ZIF socket is uniquely designed to accept both 0.300" (Narrow Body) and 0.600" (Wide Body) DIP chips, making it a universal tool for everything from 8-pin ATtiny chips to 40-pin ATmega chips.

• Extreme Cycle Life: Engineered with heavy-duty plastics and robust internal springs designed to survive tens of thousands of insertion cycles without degrading.

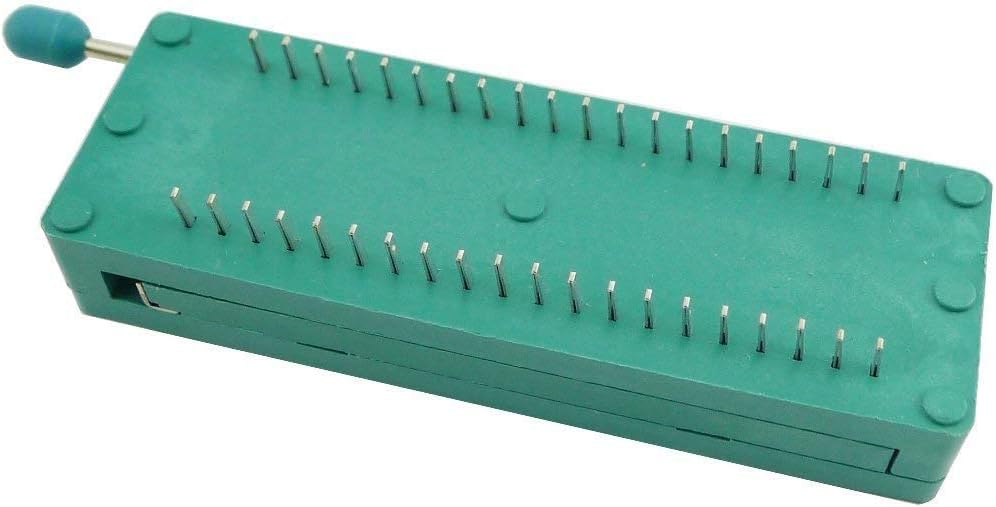

• Standard 0.1" Output Pitch: The bottom pins of the ZIF socket plug directly into a standard breadboard or perfboard, allowing you to easily build your own custom programming jigs.

Perfect For:

• Production Programming Jigs: The mandatory centerpiece for building a custom "Arduino as ISP" shield dedicated to rapidly flashing hex files onto bare microcontrollers before soldering them onto commercial PCBs.

• Universal IC Programmers: The exact style of socket found on professional EEPROM and microcontroller programmers (like the popular TL866II Plus or T48).

• Component Salvage & Testing: Invaluable for rapidly testing trays of salvaged logic gates, optocouplers, or operational amplifiers to verify they still work before using them in a new design.

• Iterative Firmware Prototyping: Ideal for complex gateway or telemetry projects where the main processor must be physically moved between the circuit board and an external programmer constantly during the debugging phase.

Technical Specifications:

• Pin Count: 40 Pins (2 rows of 20)

• Pin Pitch (Output): 2.54 mm (0.1")

• Accepted IC Pitch: 2.54 mm (0.1")

• Accepted IC Widths: Universal (Accepts both 0.300" Narrow and 0.600" Wide DIP packages)

• Mechanism: Mechanical Lever Lock (Zero Insertion Force)

• Mounting Type: Through-Hole (PTH)

• Housing Material: High-Durability Thermoplastic (Usually green or blue)

• Contact Material: Gold or Tin-plated Beryllium Copper
