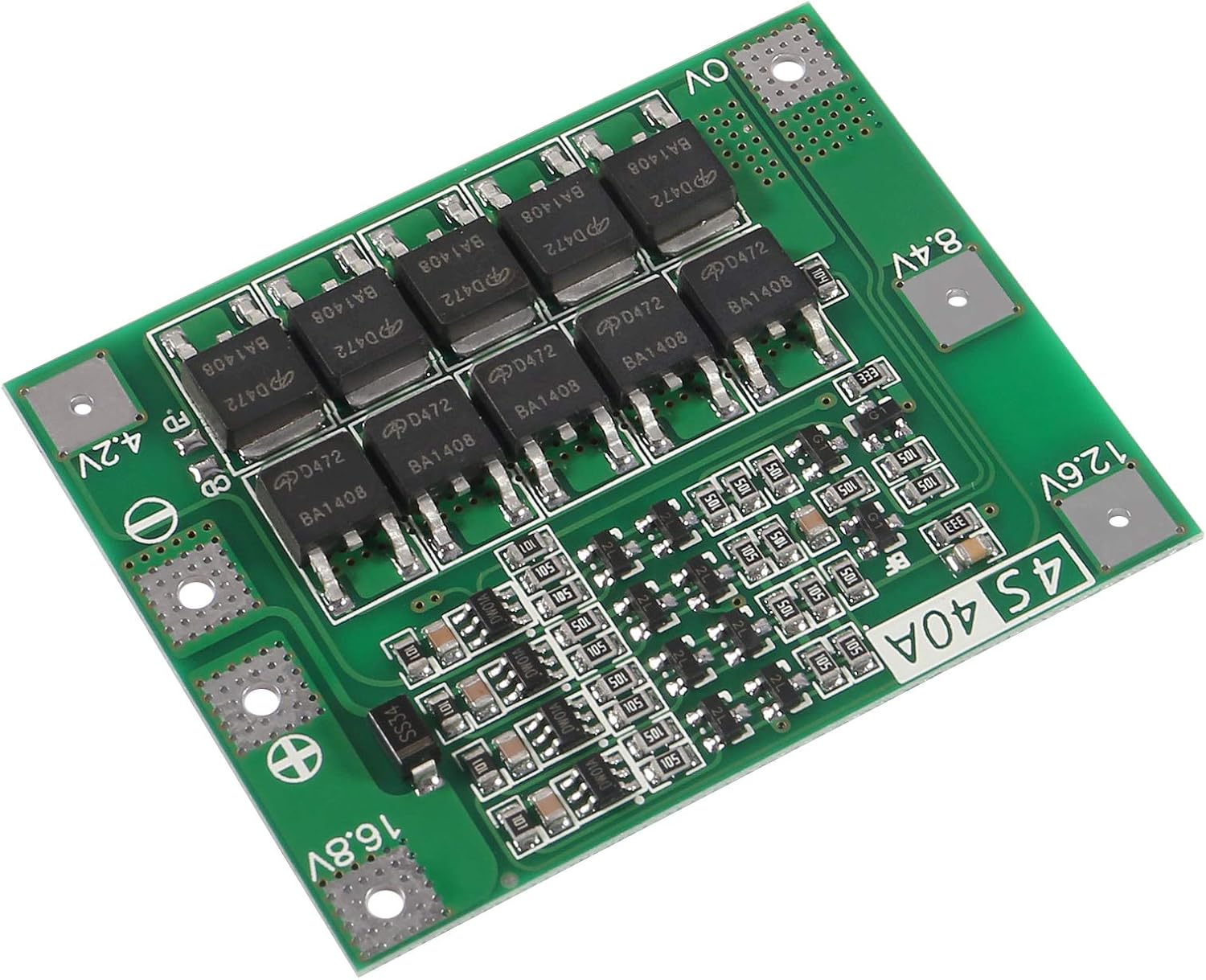

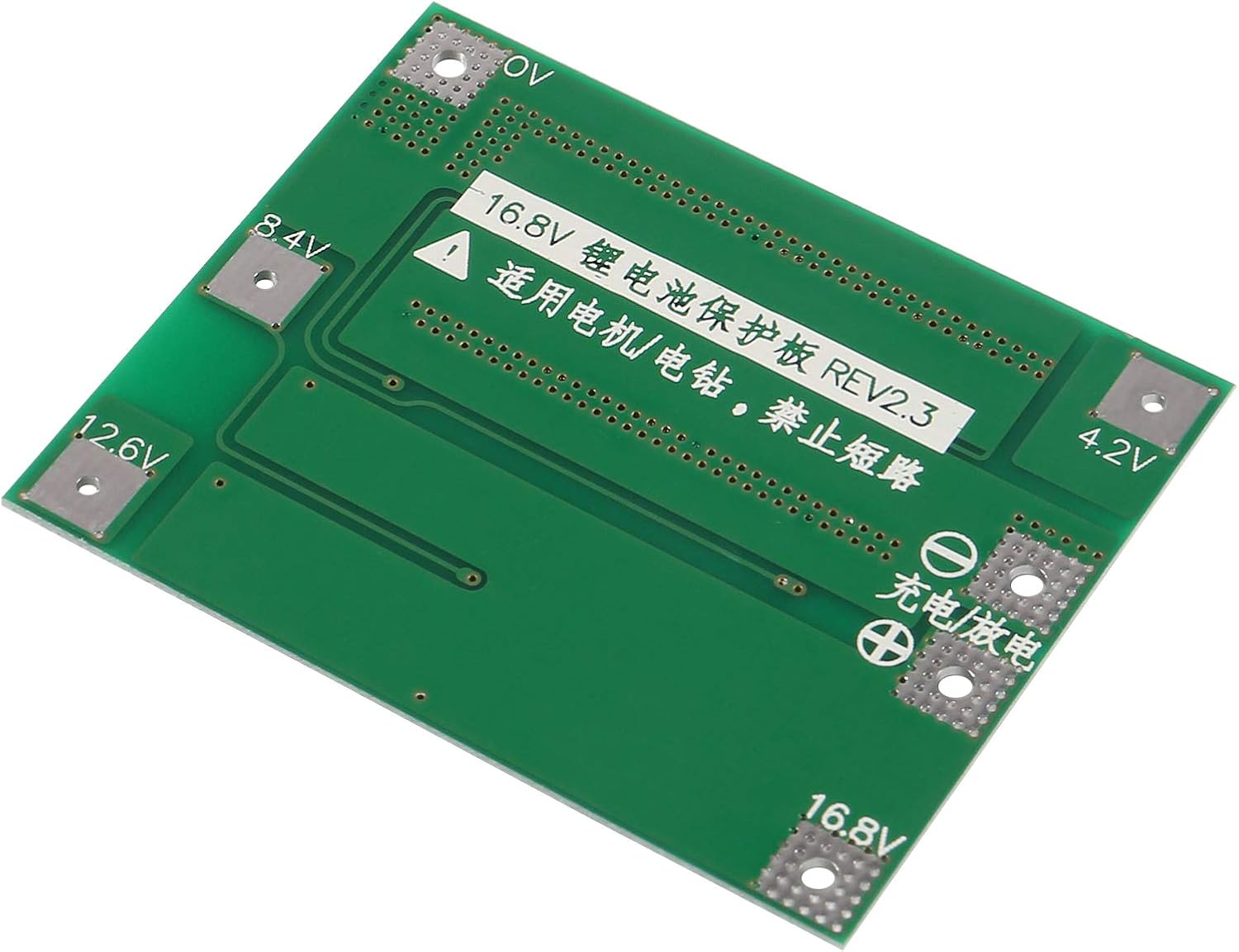

4S 40A BMS Lithium-Ion Battery Protection Board with Cell Balancing (Enhanced Version / 14.8V)

The 4S 40A BMS "Enhanced Version" is a highly versatile battery management system designed for 4-cell series (4S) Lithium-Ion battery packs. Striking the ideal middle ground between low-power 20A boards and bulky 100A industrial units, this 40A board is specifically engineered to handle the demanding electrical spikes of mid-sized DC motors. This makes it the undisputed go-to module for repairing, rebuilding, or upgrading cordless power tool batteries and high-power handheld vacuums.

The "Enhanced" designation indicates that this board has been upgraded with specialized MOSFETs designed to handle heavy inductive loads and sudden current surges without falsely triggering the short-circuit protection—a common issue with standard protection boards when pulling the trigger on a drill. Furthermore, it features an integrated active cell balancing circuit that equalizes the voltage across all four series cells during the charging phase, ensuring maximum pack capacity and preventing premature cell failure.

Key Features & Functional Advantages:

• Enhanced Motor Compatibility: Upgraded circuitry prevents the BMS from falsely tripping and shutting down when subjected to the sudden, massive current spikes generated by starting heavy DC motors.

• 40A Continuous Discharge: Safely sustains heavy electrical loads up to 40 Amps, providing plenty of headroom for demanding applications without generating excessive, dangerous heat.

• Active Cell Balancing: Automatically bleeds off excess voltage (at roughly 40mA per cell) from faster-charging cells during the top-off phase, keeping all four tiers perfectly synchronized at 4.2V.

• Comprehensive 4-Tier Protection: Constantly monitors the pack to instantly sever the connection in the event of over-voltage (over-charging), under-voltage (deep discharging), over-current, or a hard short-circuit.

• Compact Footprint: Despite its high current rating, the board maintains a slim, flat profile that easily slides into the tight plastic casings of standard commercial power tool batteries.

Perfect For:

• Cordless Power Tool Rebuilds: The absolute best choice for replacing the dead internal circuitry in 14.4V/14.8V cordless drills, impact drivers, and circular saws.

• High-Power Handheld Vacuums: Upgrades the internal power supplies of cordless vacuum cleaners to run on modern, high-capacity 18650 or 21700 lithium-ion cells.

• Mid-Sized Robotics: Provides a rugged, unthrottled power path for 12V-class robotic chassis utilizing multiple high-torque geared motors.

• Portable Audio Amplifiers: Protects the internal 4S lithium power supply inside custom-built, high-wattage Bluetooth boomboxes.

Technical Specifications:

• Configuration: 4S (4 Cells in Series)

• Supported Chemistry: Lithium-Ion (18650, 21700, etc.) with 3.7V nominal / 4.2V peak rating

• Nominal Voltage: 14.8V

• Full Charge Voltage: 16.8V (Requires a dedicated 16.8V CC/CV lithium charger)

• Maximum Continuous Current: 40A

• Peak / Instantaneous Current: ~80A (For motor start-up spikes)

• Overcharge Protection Threshold: 4.25V ±0.05V per cell

• Over-Discharge Cut-off Threshold: 2.5V ±0.05V per cell

• Balancing Current: ~40mA per cell

• Dimensions: Approximately 45 mm x 60 mm x 3 mm
