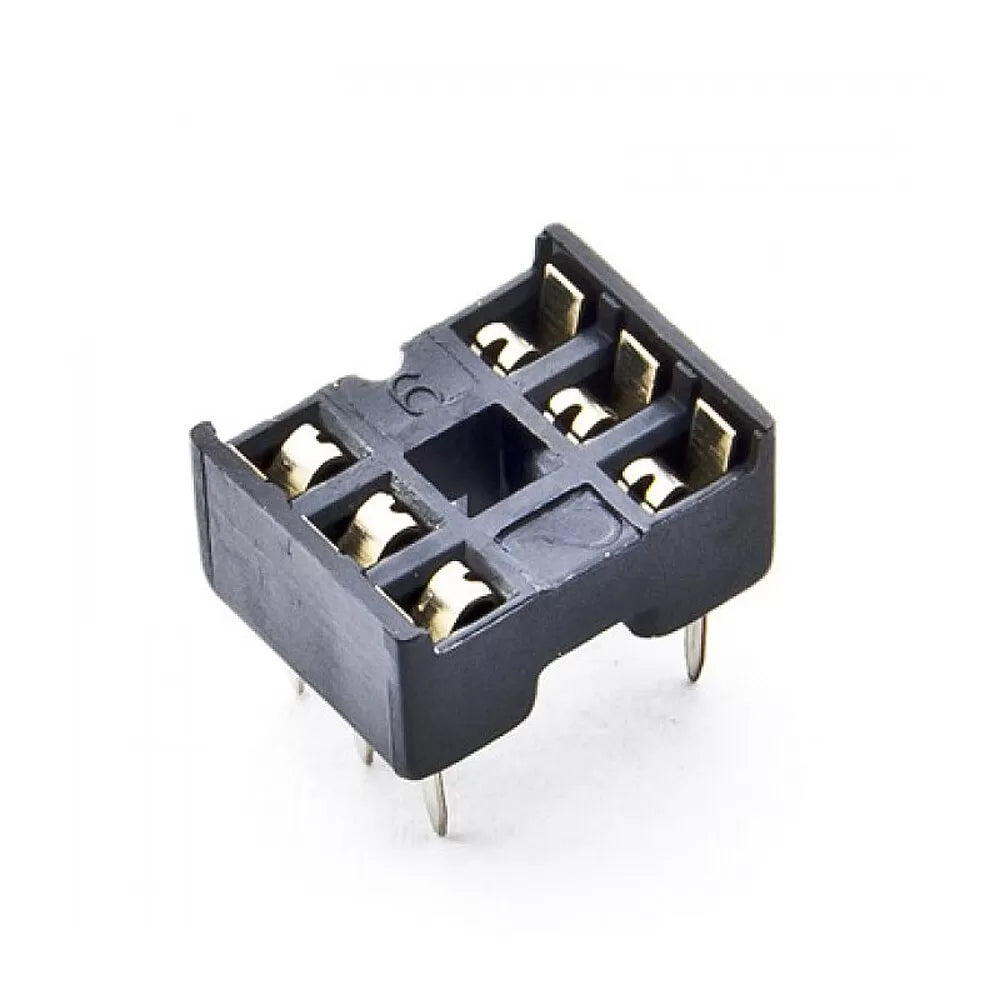

6-Pin DIP IC Socket Adaptor (0.300" Narrow Body - Through-Hole)

When you are integrating small, 6-pin integrated circuits into a permanent printed circuit board or a perfboard prototype, the 6-Pin DIP IC Socket is a mandatory inclusion. Rather than risking thermal damage to your sensitive silicon by applying a hot soldering iron directly to the chip's legs, you solder this durable thermoplastic socket to your board instead. Once the board has cooled and been cleaned of flux, you simply snap your IC directly into the socket's tensioned metallic contacts.

This specific 6-pin configuration is incredibly common in power isolation and signal switching circuits, as it perfectly fits standard opto-isolators (like the PC817, 4N35, and MOC3021) and small 6-pin amplifiers. Beyond heat protection during assembly, using a socket makes troubleshooting and repairs instantaneous. If a voltage spike burns out your optocoupler during a heavy motor-switching event, you do not need to desolder anything. You simply pull the dead chip out and push a new one in, saving your custom circuit board from the trash bin.

Key Features & Functional Advantages:

• Zero-Heat Assembly: Completely isolates your sensitive, low-cost ICs from the extreme temperatures of manual hand-soldering and wave-soldering processes.

• Instant Chip Swapping: Allows for rapid replacement of blown components, which is especially critical for optocouplers that frequently act as the sacrificial barrier between high-voltage loads and delicate microcontrollers.

• Standardized 0.1" Pitch: The pins are perfectly spaced at 2.54mm (0.1 inches) apart, dropping flawlessly into standard perfboards, stripboards, and breadboards.

• 0.300" Row Spacing: Sized exactly for standard "narrow body" 6-pin DIP chips.

• Dual-Wipe Contacts: Features tensioned, dual-leaf metallic springs inside each pin slot that aggressively grip the flat legs of the IC, ensuring a highly reliable, low-resistance electrical connection.

Perfect For:

• Optocoupler Isolation: The standard physical mount for integrating PC817, 4N25, or MOC-series optoisolators when separating high-voltage AC circuits from 5V Arduino logic.

• Custom Relay Boards: An excellent safety buffer when building DIY relay driver boards for home automation and IoT projects.

• Guitar Effect Pedals: Highly useful for mounting small 6-pin operational amplifiers or specific dual-transistors where builders may want to swap out different chips to change the audio "flavor" of the pedal.

• Educational Prototyping: Ensures that students can safely insert, remove, and reuse components without requiring advanced desoldering wick or solder suckers.

Technical Specifications:

• Pin Count: 6 Pins (2 rows of 3)

• Pin Pitch (Spacing between adjacent pins): 2.54 mm (0.1")

• Row Spacing (Distance between the two rows): 7.62 mm (0.300" - Narrow Body)

• Mounting Type: Through-Hole (PTH)

• Contact Style: Dual-Wipe / Leaf Spring

• Housing Material: Black Thermoplastic (UL94V-0 Rated)

• Contact Material: Tin-plated Phosphor Bronze

• IC Compatibility: Any standard 6-pin, 0.300" wide DIP integrated circuit.
