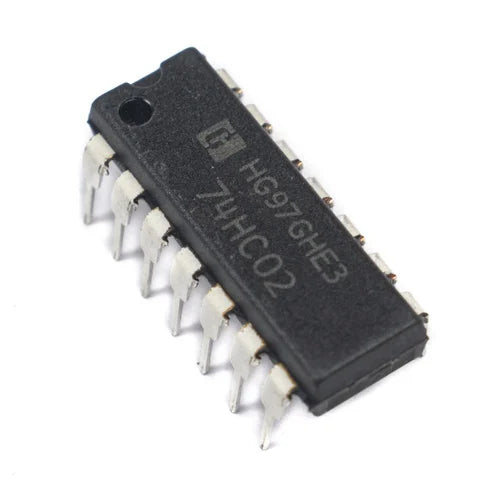

74HC02 (Quad 2-Input NOR Gate IC - 14-Pin DIP Package)

When your digital logic requires an action to happen only when all other conditions are completely quiet or off, the 74HC02 is the integrated circuit you need. This classic 14-pin chip houses four completely independent, 2-input NOR (NOT-OR) gates. A NOR gate follows a strict and highly useful truth table: its output will only turn ON (High) if Input A and Input B are both OFF (Low). If either input, or both inputs, receive a High signal, the output is immediately forced Low.

The "HC" designation signifies High-Speed CMOS technology, giving this chip the blazing switching speeds of vintage TTL logic but with the ultra-low power consumption and wide voltage tolerance of modern silicon. Operating comfortably anywhere from 2.0V to 6.0V, it bridges standard 5V logic and modern 3.3V systems seamlessly. Beyond basic decision-making, the NOR gate is famous in computing history as the foundational building block for the "SR (Set-Reset) Latch"—the fundamental circuit used to create physical memory states from raw logic gates.

Key Features & Functional Advantages:

• Four Independent Gates: Packs four separate 2-input NOR gates into a single 14-pin footprint, allowing you to execute multiple parallel logic operations or build dual SR latches on one chip.

• High-Speed CMOS (HC) Architecture: Delivers high-speed propagation with virtually zero quiescent power draw, making it highly efficient for always-on, battery-powered alarm or logic circuits.

• Wide Operating Voltage: Operates flawlessly across a 2.0V to 6.0V range, ensuring plug-and-play compatibility with nearly every modern hobbyist microcontroller.

• High Noise Immunity: The CMOS inputs naturally resist false triggering from electrical interference, providing rock-solid logic states in messy, wire-heavy breadboard environments.

• Breadboard Native: The 0.1-inch (2.54mm) pin pitch drops flawlessly into any solderless breadboard, perfboard, or standard 14-pin DIP socket.

Perfect For:

• SR Flip-Flops (Latches): The absolute standard hardware for cross-coupling two gates together to build basic 1-bit memory cells and custom hardware debouncing circuits for mechanical switches.

• Fail-Safe Alarm Logic: Easily triggers a "System OK" green LED only when neither Sensor A nor Sensor B is detecting a fault.

• Homebrew 8-Bit Computers: An indispensable component for hobbyists building custom instruction decoders, memory addressing logic, and clock gating in DIY CPU builds.

• Educational STEM Kits: The perfect hands-on tool for teaching students the principles of De Morgan's laws, Boolean algebra, and universal logic gates (since any other logic gate can technically be built using only NOR gates).

Technical Specifications:

• Logic Family: 74HC (High-Speed CMOS)

• Logic Function: NOR Gate (NOT-OR)

• Number of Gates: 4 (Quad)

• Number of Inputs: 2 per gate

• Operating Supply Voltage (Vcc): 2.0V to 6.0V

• Maximum Output Current: ~5.2 mA (per pin at 5V)

• Propagation Delay: ~9 ns (Typical at 5V)

• Package / Case: 14-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
