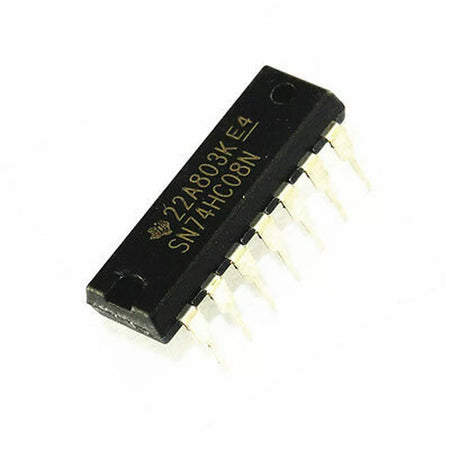

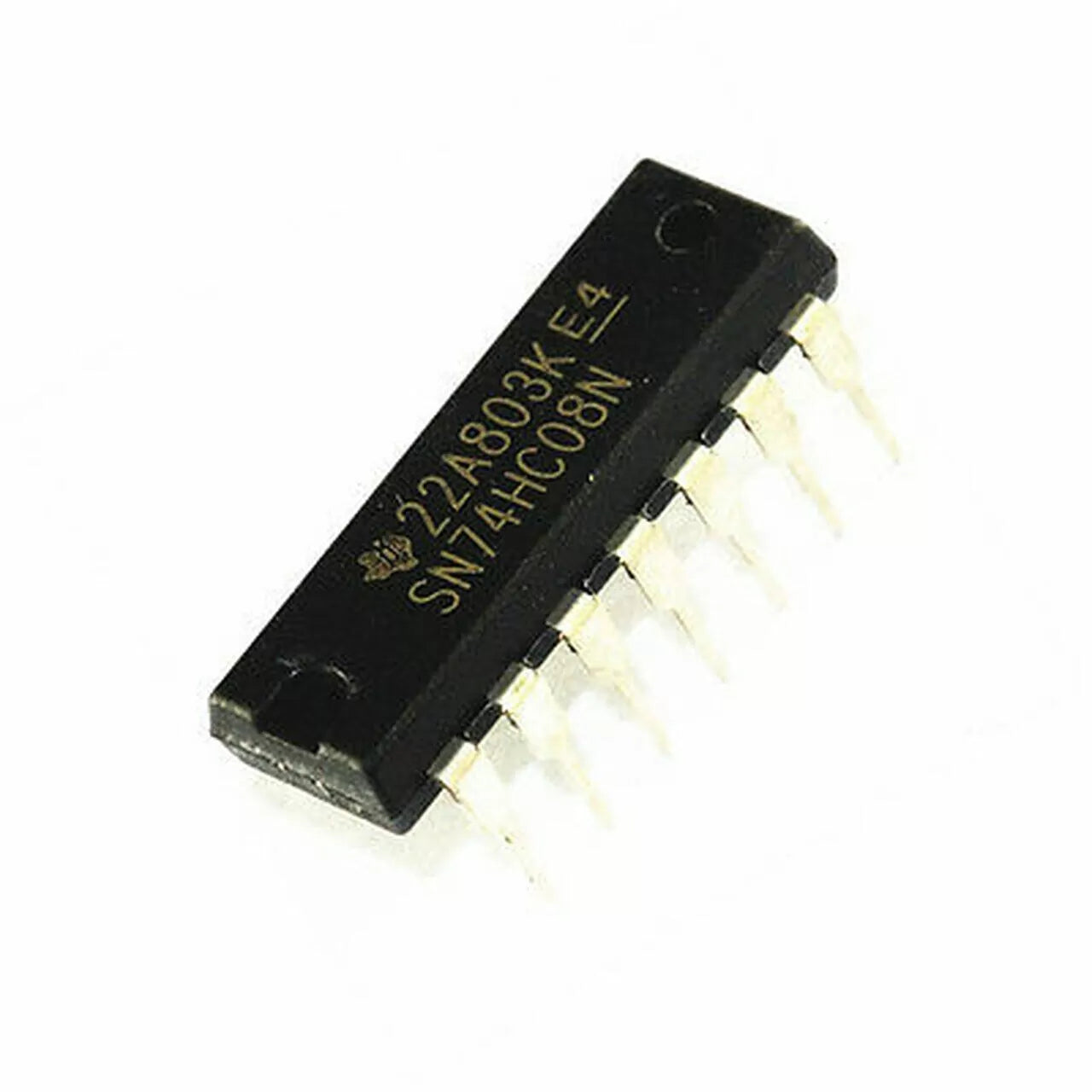

74HC08 (Quad 2-Input AND Gate IC - 14-Pin DIP Package)

Before microcontrollers could be programmed with complex "IF/THEN" statements in C++, engineers built those exact same logical decisions directly into the hardware using discrete logic gates. The 74HC08 is the quintessential "AND" gate integrated circuit. It contains four completely independent, 2-input AND gates housed within a single 14-pin through-hole package. An AND gate follows a very simple but powerful truth table: the output will only turn ON (High) if both Input A and Input B are also ON (High). If either input is Low, the output remains Low.

The "HC" in the part number stands for High-Speed CMOS. This is a critical distinction from older 74LS (Low-power Schottky) chips. It means the 74HC08 draws practically zero quiescent current (making it highly efficient for battery-powered circuits), offers excellent immunity to electrical noise, and can operate across a wide voltage range from 2.0V to 6.0V. Whether you are building an 8-bit computer from scratch, safely gating a high-speed clock signal, or combining multiple security sensors into a single trigger line, the 74HC08 is an indispensable, bulletproof component for your parts bin.

Key Features & Functional Advantages:

• Four Independent Gates: Packs four separate 2-input AND gates into a single 14-pin footprint, allowing you to run multiple parallel logic operations simultaneously on one chip.

• High-Speed CMOS (HC) Architecture: Delivers the blistering switching speeds of older TTL logic but with the ultra-low power consumption and high input impedance of modern CMOS technology.

• Wide Operating Voltage: Operates flawlessly anywhere from 2.0V up to 6.0V, making it perfectly compatible with both standard 5V Arduino logic and modern 3.3V ESP32/STM32 logic levels.

• High Noise Immunity: CMOS inputs are highly resistant to false triggering from electrical noise, ensuring your logic states remain rock-solid in messy prototype environments.

• Breadboard Native: The 0.1-inch (2.54mm) pin pitch drops perfectly into any solderless breadboard or standard 14-pin DIP socket for rapid, hassle-free prototyping.

Perfect For:

• Sensor Combiners: Easily triggers an alarm or activates a relay only when two independent conditions are met (e.g., "Motion Detected" AND "It is Nighttime").

• Clock Signal Gating: A classic technique for enabling or cleanly cutting off a fast oscillating clock signal to a microprocessor or counter circuit using a secondary control pin.

• Homebrew 8-Bit Computers: The standard hardware for building custom instruction decoders and memory addressing logic in DIY Z80 or 6502 computer builds.

• Educational STEM Kits: The absolute best hands-on method for teaching students Boolean algebra, truth tables, and fundamental digital logic design.

Technical Specifications:

• Logic Family: 74HC (High-Speed CMOS)

• Logic Function: AND Gate

• Number of Gates: 4 (Quad)

• Number of Inputs: 2 per gate

• Operating Supply Voltage (Vcc): 2.0V to 6.0V

• Maximum Output Current: ~5.2 mA (per pin at 5V)

• Propagation Delay: ~9 ns (Typical at 5V)

• Package / Case: 14-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
