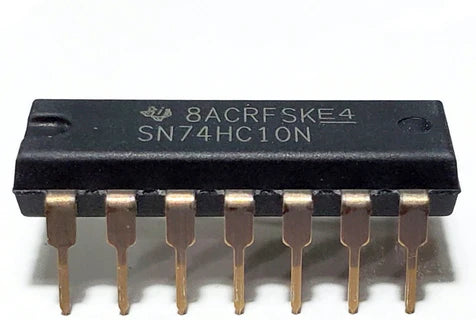

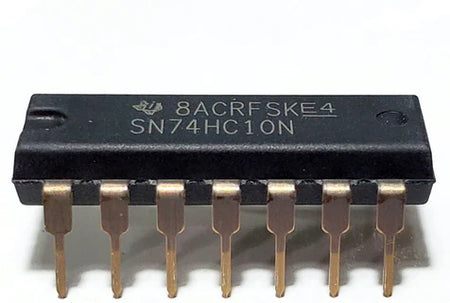

74HC10 (Triple 3-Input NAND Gate IC - 14-Pin DIP Package)

When your digital logic circuit requires an action to be blocked or triggered based on a complex combination of three distinct hardware events, cascading standard 2-input gates can quickly clutter your PCB or breadboard layout. The 74HC10 is the elegant, space-saving solution. This classic 14-pin integrated circuit packs three completely independent 3-input NAND (Not-AND) gates onto a single piece of silicon. A 3-input NAND gate operates on a highly specific truth table: its output remains HIGH for almost all states, dropping cleanly to a logic LOW only when Input A, Input B, and Input C are all simultaneously driven HIGH.

Because the NAND gate is a recognized "universal gate" in digital design, combinations of this single chip can be cleverly wired to replicate any other basic logic operation—including AND, OR, NOT, and NOR functions. Built on Nexperia/Toshiba standard High-Speed CMOS (HC) architecture, the 74HC10 combines the blistering nanosecond propagation delays of old-school TTL logic with the exceptional power efficiency and high noise immunity of modern CMOS systems. Operating smoothly on any supply voltage between 2.0V and 6.0V, it serves as a highly reliable, low-power interface between microcontrollers, memory arrays, and hardware sensors.

Key Features & Functional Advantages:

• Three Independent 3-Input Gates: Offers three separate triple-input blocks inside a single 14-pin footprint, allowing you to monitor multi-layered sensor arrays without using extra logic chips.

• Universal Gating Capabilities: Acts as a foundational logic block; multiple gates can be interconnected to form complex flip-flops, encoders, decoders, and custom data registers.

• High-Speed CMOS (HC) Architecture: Delivers high-speed switching frequencies with an ultra-low quiescent current draw (typically 2µA), preserving precious battery runtime on remote telemetry platforms.

• Excellent Noise Immunity: Built-in input clamp diodes and stable CMOS switching thresholds protect your digital signals from false triggers in electrically noisy motor-driver or power-supply environments.

• Breadboard Native (14-DIP): Standard 0.1-inch (2.54mm) pin pitch fits seamlessly into any standard solderless breadboard, perfboard, or 14-pin low-profile DIP IC socket.

Perfect For:

• Multi-Condition Safety Interlocks: The standard hardware-level choice for triggering safety alerts or cutting power only when three conditions are simultaneously met (e.g., "Door Closed" AND "Pressure Nominal" AND "Emergency Stop Inactive").

• Address Decoding & Memory Mapping: Essential for custom hardware designers needing to decode multi-bit address lines to enable specific RAM, ROM, or I/O banks in DIY microcomputer builds.

• Hardware-Based S-R Latches: Easily cross-coupled to build hardware memory flip-flops and bounce-free mechanical switch filters.

• Educational Digital Labs: A fantastic teaching tool for instructing students on multi-variable Boolean algebra, truth tables, and advanced digital gating logic.

Technical Specifications:

• Logic Family: 74HC (High-Speed CMOS)

• Logic Function: NAND Gate

• Number of Gates: 3 (Triple)

• Number of Inputs: 3 per gate

• Operating Supply Voltage (Vcc): 2.0V to 6.0V DC

• Maximum Output Current: ±5.2 mA (Sufficient for logic driving and standard signaling)

• Propagation Delay: ~9 ns to 15 ns (Typical at 5V)

• Package / Case: 14-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
