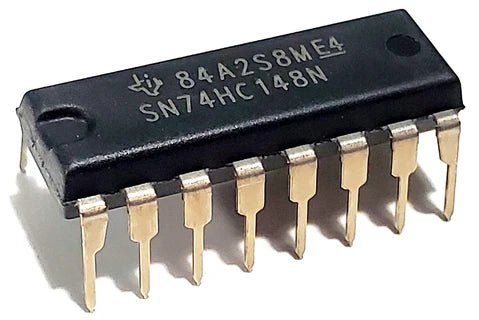

74HC148 (8-Line to 3-Line Priority Encoder IC - 16-Pin DIP Package)

When designing complex control panels, custom keyboards, or diagnostic arrays, monitoring 8 individual buttons or fault sensors typically eats up 8 precious GPIO pins on your microcontroller. The 74HC148 is the classic silicon solution to this pin-scarcity problem. It is an 8-line to 3-line priority encoder. It looks at 8 independent input lines and condenses them into a clean, 3-bit binary code output.

The absolute superpower of this chip lies in the word Priority. If you were using a standard encoder and two buttons were pressed at the exact same millisecond, the chip would glitch out and output garbage data. The 74HC148 solves this through integrated hardware prioritization: if multiple inputs are triggered simultaneously, it completely ignores the lower-numbered pins and cleanly outputs the binary address of the highest-order active pin (with Input 7 having the absolute highest priority). Built on High-Speed CMOS technology, it operates across a wide 2.0V to 6.0V range, handling complex hardware prioritization in mere nanoseconds while drawing virtually zero power when idle.

Key Features & Functional Advantages:

• 8-to-3 Line Data Compression: Encodes 8 individual input lines into a highly efficient 3-bit parallel binary format, freeing up 5 GPIO pins on your processor.

• True Hardware Priority Logic: Automatically resolves input conflicts on the fly, ensuring your system always responds to the most critical, highest-numbered sensor first.

• Cascadable Architecture: Features dedicated Enable Input (EI) and Enable Output (EO) pins, allowing you to easily chain multiple 74HC148 chips together to build 16-to-4 or 32-to-5 line encoder blocks.

• Master Status Flag (GS Pin): Includes a Group Signal (GS) output pin that instantly flags your microcontroller whenever any valid input is triggered, acting as an excellent master interrupt driver.

• Breadboard Native (16-DIP): Standard 0.1-inch (2.54mm) pin pitch allows it to drop effortlessly into any solderless breadboard, prototyping board, or 16-pin IC socket.

Perfect For:

• Hardware Interrupt Expansion: The standard choice for pooling multiple critical sensor or error lines down into a single master interrupt trigger for an Arduino or ESP32.

• Custom Control Panels & Macro Pads: Efficiently decodes multi-button inputs, control panels, and navigation switches without burning through your processor's pin count.

• Rotary Switch Decoding: Transforms physical, multi-position mechanical rotary switches into a tidy, microcontroller-readable binary format.

• Educational Logic Training: An essential teaching tool for demonstrating binary encoding, priority ranking, and cascading logic systems in digital electronics labs.

Technical Specifications:

• Logic Family: 74HC (High-Speed CMOS)

• Logic Function: 8-Line to 3-Line Priority Encoder

• Input Configuration: 8 Active-LOW Inputs

• Output Configuration: 3-Bit Active-LOW Binary Output + GS + EO

• Operating Supply Voltage (Vcc): 2.0V to 6.0V

• High-Speed Propagation Delay: ~15 ns (Typical at 5V)

• Maximum Output Current: ~5.2 mA per pin

• Package / Case: 16-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
