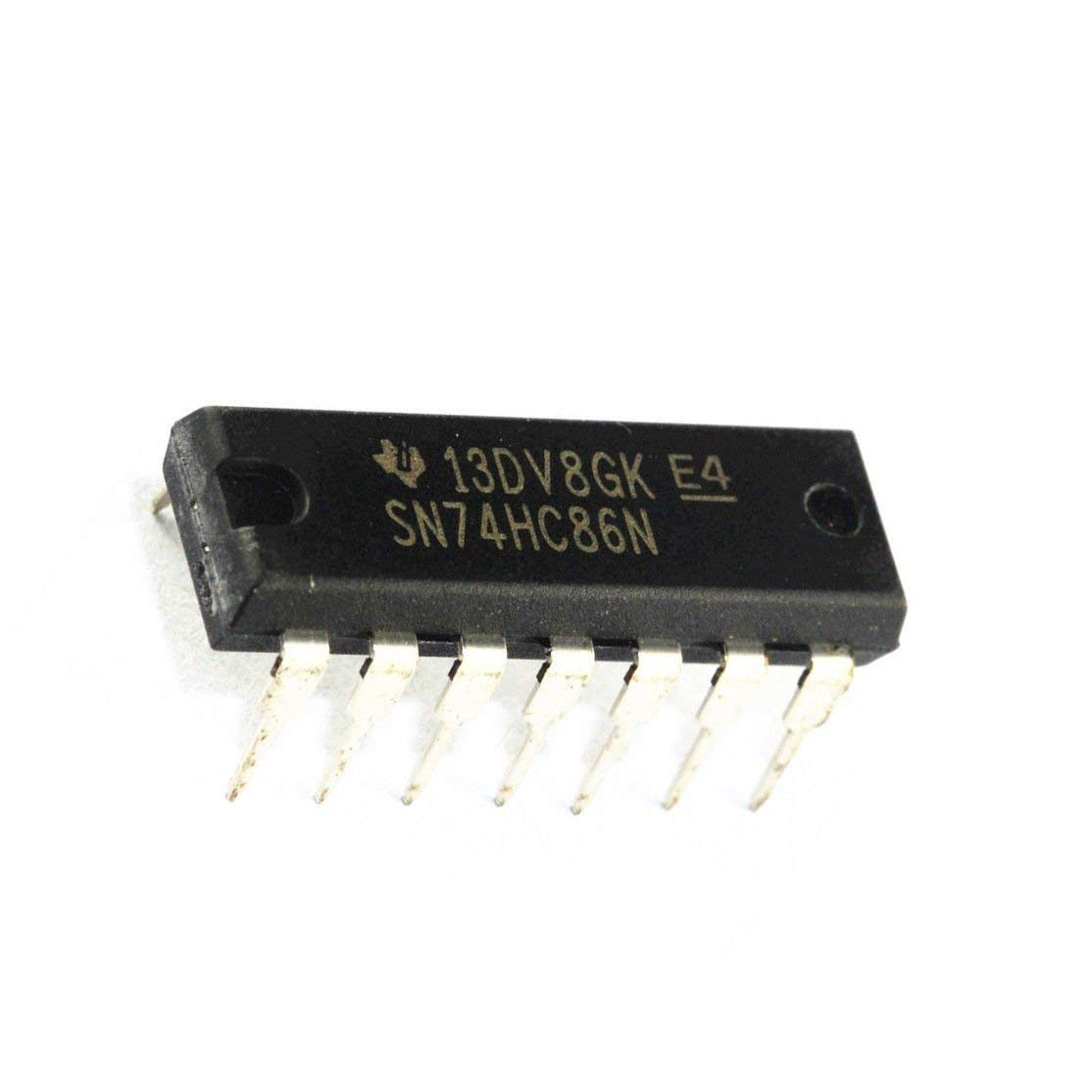

74HC86 (Quad 2-Input Exclusive-OR / XOR Gate IC - 14-Pin DIP Package)

When your electronic project requires a strict conditional check where an action triggers if and only if two inputs are completely different, standard logic blocks like OR gates won't suffice. The 74HC86 is the industry-standard silicon solution. This classic 14-pin integrated circuit houses four completely independent 2-input Exclusive-OR (XOR) gates.

Built on Nexperia/Toshiba standard High-Speed CMOS (HC) architecture, the 74HC86 delivers the blazing nanosecond switching propagation speeds of traditional TTL circuits while drawing practically zero quiescent current when idling. This makes it highly sought after for dense prototyping on always-on, battery-backed automation nodes. Operating seamlessly across a wide 2.0V to 6.0V range, it serves as a bulletproof digital logic interface capable of directly bridging 3.3V IoT platforms like the ESP32 with traditional 5V hardware controllers.

Key Features & Functional Advantages:

• Four Independent Gates: Packs four separate 2-input XOR blocks into a compact 14-pin layout, offering enough internal hardware paths to construct a functional 2-bit binary adder on a single chip.

• Dynamic Controlled Inversion: By wiring one input pin permanently HIGH, the gate converts into a classic NOT inverter for the opposite pin. If tied permanently LOW, the input passes through unchanged. This allows you to toggle signal states dynamically using a single GPIO line.

• High-Speed CMOS Architecture: Propagates data signals across gates in a lightning-fast 11 ns (typical at 5V), handling high-speed data streams or high-frequency clock distributions smoothly.

• Rugged Input Clamping Protection: Integrated input clamp diodes safeguard the internal CMOS circuitry against static discharge and minor voltage overshoots, improving longevity.

• Breadboard Native (14-DIP): Standard 0.1-inch (2.54mm) pin pitch fits effortlessly into standard solderless breadboards, perfboards, and low-profile 14-pin IC sockets.

Perfect For:

• Arithmetic Logic Units (ALUs): The fundamental silicon component required for engineering hardware-level full-adders and subtractors in homebrew 8-bit computer designs.

• Parity Generation & Error Checking: Extensively utilized in serial communication hardware setups to evaluate data byte consistency and inject or verify parity bits.

• Phase Comparators & Wave Matching: Ideal for processing analog square waves to detect fractional alignment offsets or phase shifts between dual-rail reference signals.

• Hardware Signal Encryption: Serves as the elementary building block for physical bitwise data scrambling arrays and encryption key hardware masks.

Technical Specifications:

• Logic Family: 74HC (High-Speed CMOS)

• Logic Function: XOR Gate (Exclusive-OR)

• Number of Gates: 4 (Quad)

• Number of Inputs: 2 per gate

• Operating Supply Voltage ($V_{CC}$): 2.0V to 6.0V DC

• Maximum Output Current: $\pm$5.2 mA (Sufficient for logic signaling and driving indicator LEDs)

• Propagation Delay: ~11 ns (Typical at 5V)

• Package / Case: 14-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)
