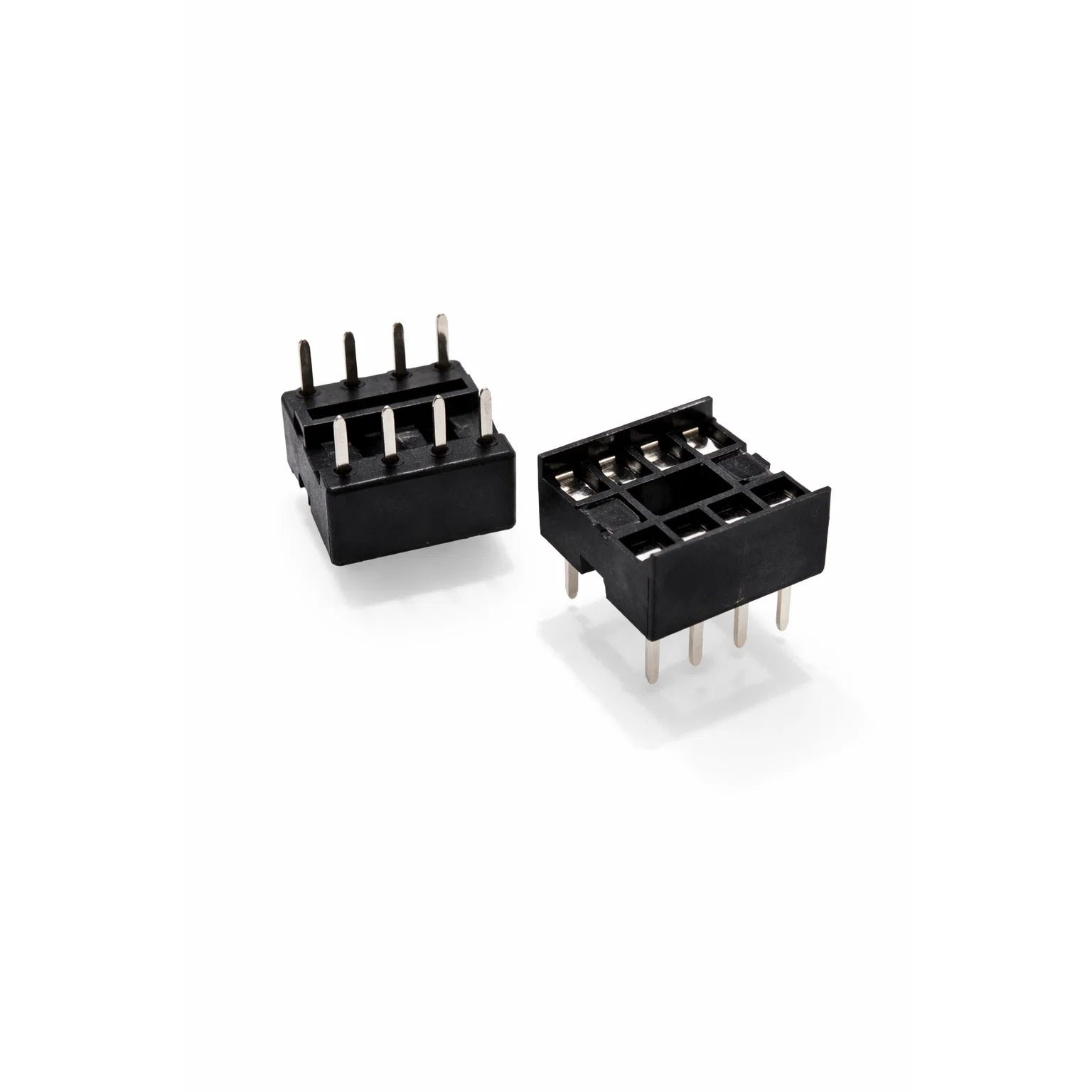

8-Pin DIP IC Socket Adaptor (0.300" Narrow Body - Through-Hole)

When working with the most famous, foundational chips in electronics—such as the legendary NE555 Timer, the ATtiny85 microcontroller, or classic operational amplifiers like the LM358 and TL072—the 8-Pin DIP IC Socket is an absolute necessity for your custom circuit boards. Rather than exposing these delicate pieces of silicon directly to the extreme, potentially fatal temperatures of your soldering iron, you permanently solder this rugged thermoplastic socket to your PCB or perfboard. Once the board has cooled, you simply snap your IC safely into the tensioned metallic contacts.

Beyond thermal protection, an 8-pin socket provides unmatched flexibility for prototyping and repair. In the audio and guitar pedal community, using a socket for the main op-amp allows builders to perform "chip rolling"—instantly swapping out different 8-pin amplifiers to change the tonal flavor of the circuit without desoldering anything. For microcontroller projects, it allows you to effortlessly pull an ATtiny85 from your board, pop it into a USB programmer to update the firmware, and push it right back into the circuit.

Key Features & Functional Advantages:

• Zero-Heat Installation: Completely isolates your sensitive, heat-prone ICs from the thermal shock of manual hand-soldering and wave-soldering processes.

• Instantaneous Chip Swapping: Allows for rapid replacement of blown components or instantaneous swapping of operational amplifiers and EEPROMs for testing and tuning.

• Standardized 0.1" Pitch: The pins are perfectly spaced at 2.54mm (0.1 inches) apart, dropping flawlessly into standard perfboards, stripboards, and solderless breadboards.

• 0.300" Row Spacing: Sized exactly for standard "narrow body" 8-pin DIP chips, the most common footprint for small-scale analog and digital ICs.

• Dual-Wipe Contacts: Features tensioned, dual-leaf metallic springs inside each pin slot that aggressively grip the flat legs of the IC, ensuring a highly reliable, low-resistance electrical connection.

Perfect For:

• ATtiny85 Prototyping: The mandatory physical mount for incorporating 8-pin AVR microcontrollers into permanent DIY projects, allowing for easy removal for firmware updates.

• Guitar Pedal & Audio DIY: An absolute necessity for building custom fuzz and overdrive pedals, allowing builders to swap out different dual op-amps (like the JRC4558 or NE5532) to tune the sound.

• NE555 Timer Circuits: Provides a safe, reusable housing for the world's most popular timing chip when building permanent oscillators and PWM controllers.

• EEPROM Swapping: Highly useful in data-logging or repair scenarios where small 8-pin memory chips (like the 24C series) need to be physically removed for reading or writing.

Technical Specifications:

• Pin Count: 8 Pins (2 rows of 4)

• Pin Pitch (Spacing between adjacent pins): 2.54 mm (0.1")

• Row Spacing (Distance between the two rows): 7.62 mm (0.300" - Narrow Body)

• Mounting Type: Through-Hole (PTH)

• Contact Style: Dual-Wipe / Leaf Spring

• Housing Material: Black Thermoplastic (UL94V-0 Rated)

• Contact Material: Tin-plated Phosphor Bronze

• IC Compatibility: Any standard 8-pin, 0.300" wide DIP integrated circuit.
