9x7mm 9767 Electret Microphone

K-TECHNICS
Out of stock
KSh20.00

Secure checkout

Friendly support

Hassle-free returns

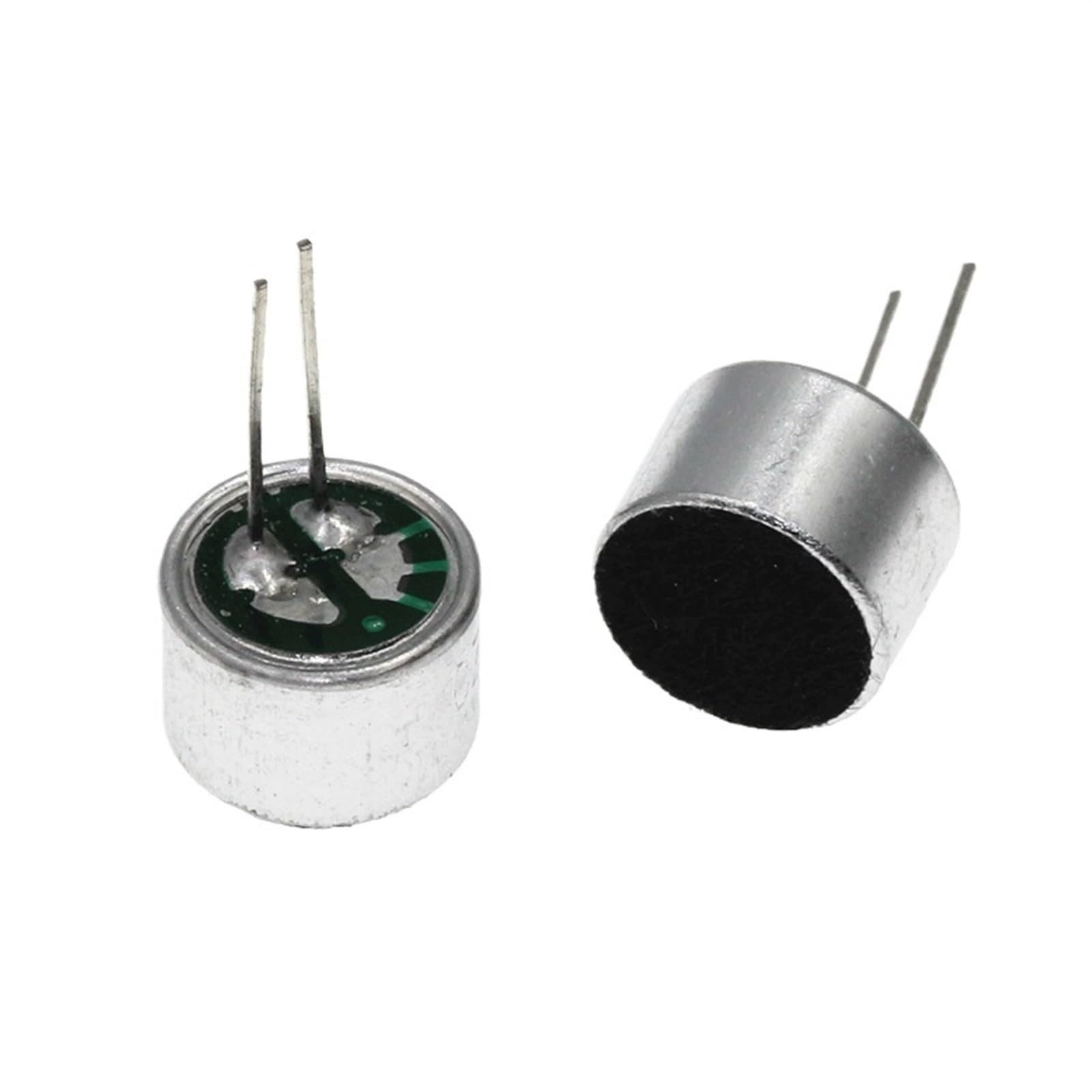

The 9767 Electret Microphone (9.7x7mm) is a standard miniature condenser capsule used for audio recording and voice sensing.
Core Specifications
  • Size: 9.7 mm diameter, 7.0 mm height.
  • Directivity: Omnidirectional (picks up sound from all directions).
  • Operating Voltage: 1.5V to 10V DC (3V typical).
  • Impedance: 2.2 kΩ.
  • Connection: 2-pin (solder pads or through-hole pins).
Pin Identification
  • Negative (-): Pin connected to the outer aluminum casing via small metal traces.
  • Positive (+): Isolated pin used for power and signal output.
Basic Wiring Setup
  1. Ground: Connect the negative pin to circuit ground.
  2. Power: Connect the positive pin to 3V–5V through a 2.2kΩ resistor to provide bias current.
  3. Signal Output: Link a 0.1µF to 10µF capacitor to the positive pin to block DC and output the audio signal.
