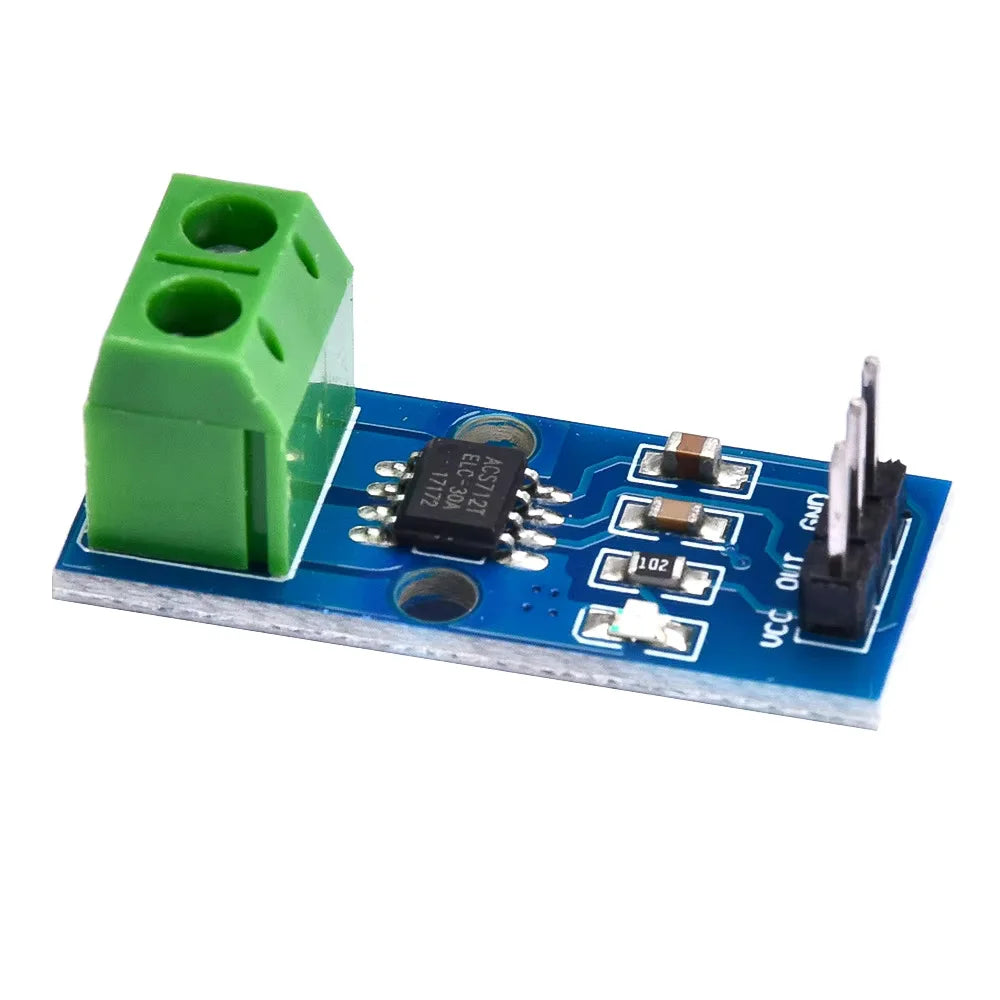

ACS712 30A CURRENT SENSOR MODULE

K-TECHNICS
In stock
KSh450.00

Secure checkout

Friendly support

Hassle-free returns

Monitor AC and DC current accurately with the ACS712 30A Current Sensor Module, a Hall-effect-based current sensing solution designed for microcontroller and embedded system projects. This module can measure currents up to ±30A while providing electrical isolation between the sensing circuit and the measured load, making it ideal for power monitoring, battery management, motor control, solar energy systems, and IoT applications.

The ACS712 sensor outputs an analog voltage proportional to the measured current, allowing easy integration with popular development platforms such as Arduino, STM32, ESP32, Raspberry Pi Pico, and other microcontrollers. Its compact design, low noise, and high reliability make it suitable for both hobbyist and professional applications.

Key Features

  • Measures AC and DC currents up to ±30A
  • Hall-effect sensing technology for electrical isolation
  • Analog voltage output proportional to current
  • Fast response time for real-time current monitoring
  • Low power consumption
  • Compatible with Arduino, STM32, ESP32, PIC, AVR, and other MCUs
  • Compact PCB design for easy installation
  • Suitable for battery, motor, inverter, and power monitoring projects

Specifications

  • Sensor IC: ACS712ELC-30A
  • Current Range: ±30A
  • Supply Voltage: 5V DC
  • Sensitivity: 66mV/A (typical)
  • Output Type: Analog Voltage
  • Isolation Voltage: 2.1kVRMS
  • Operating Temperature: -40°C to +85°C
  • Response Time: 5µs

Applications

  • Battery charging and discharging monitoring
  • Motor current measurement
  • Solar power systems
  • Power consumption monitoring
  • Overcurrent protection systems
  • Industrial automation and control
  • Robotics and embedded projects
