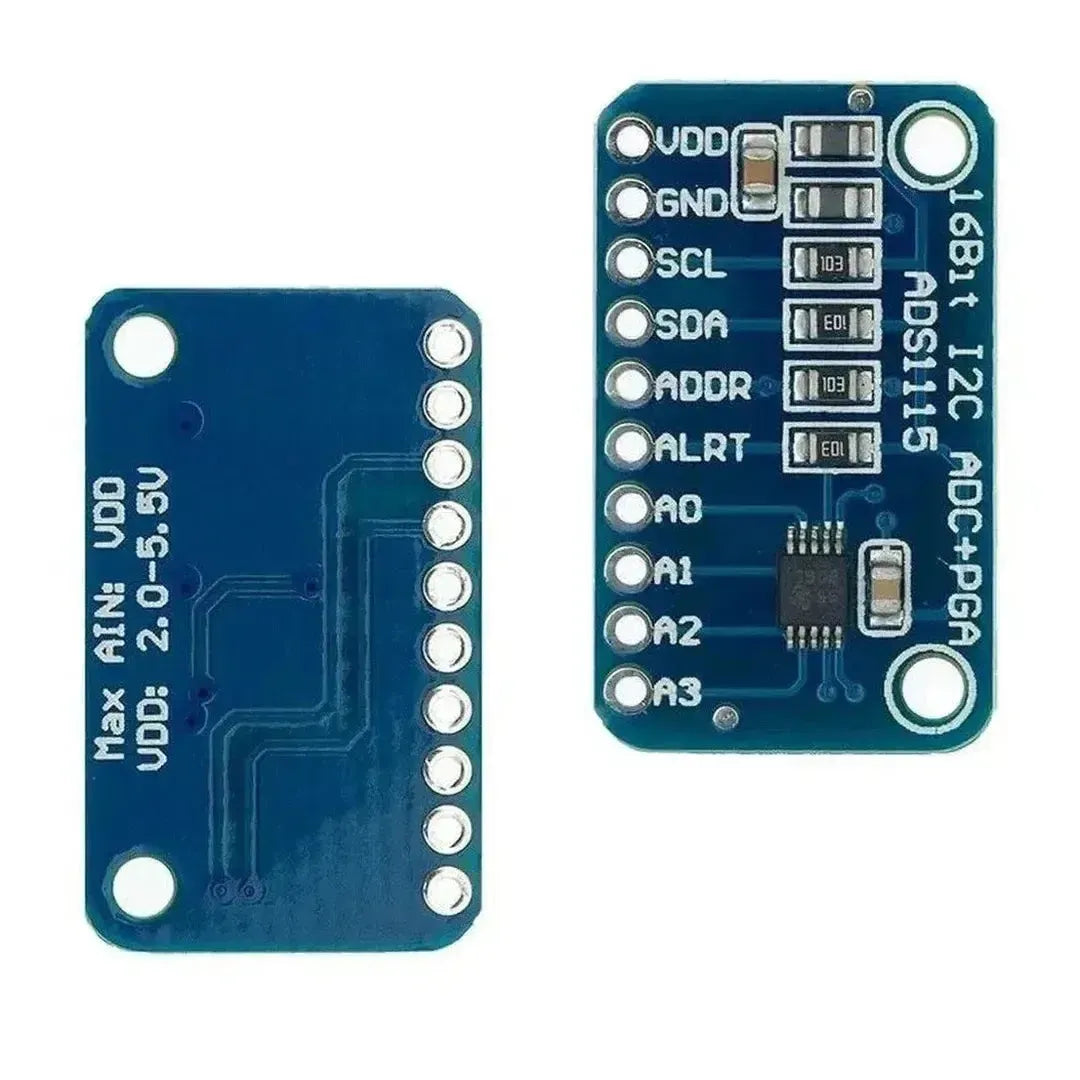

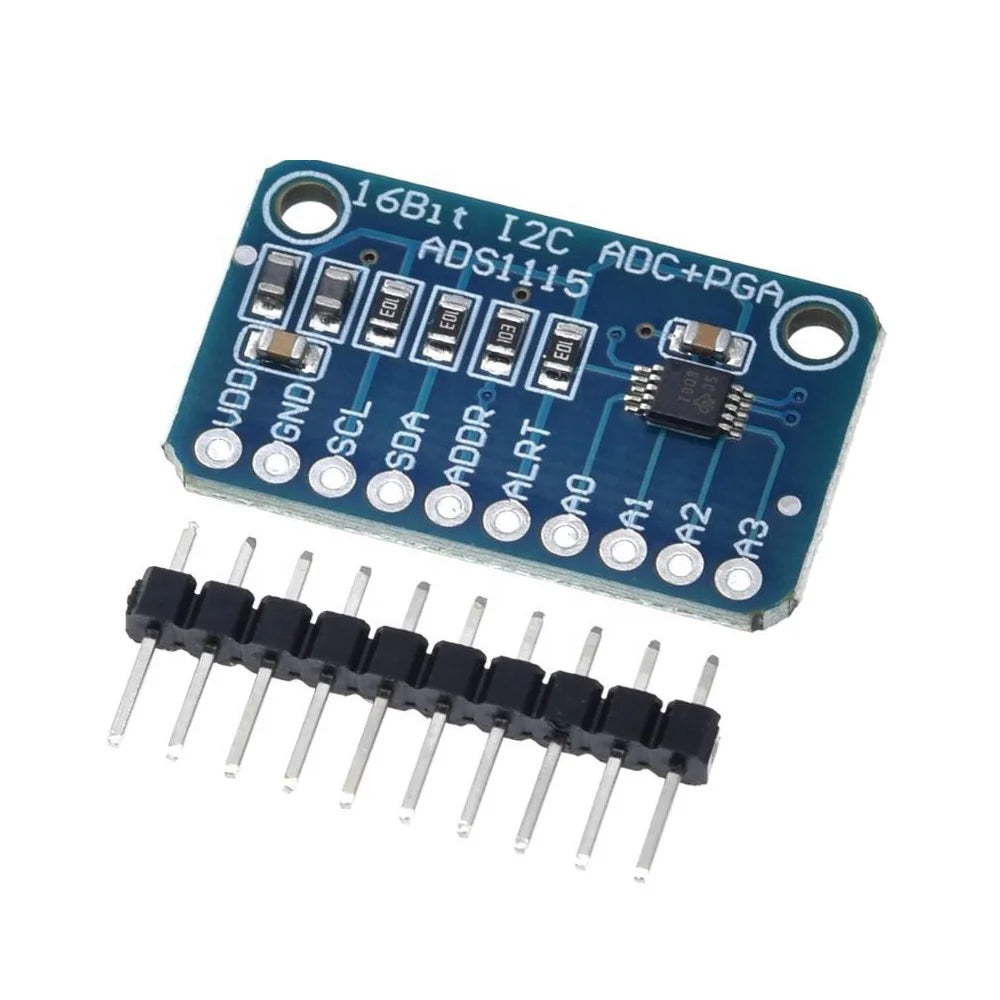

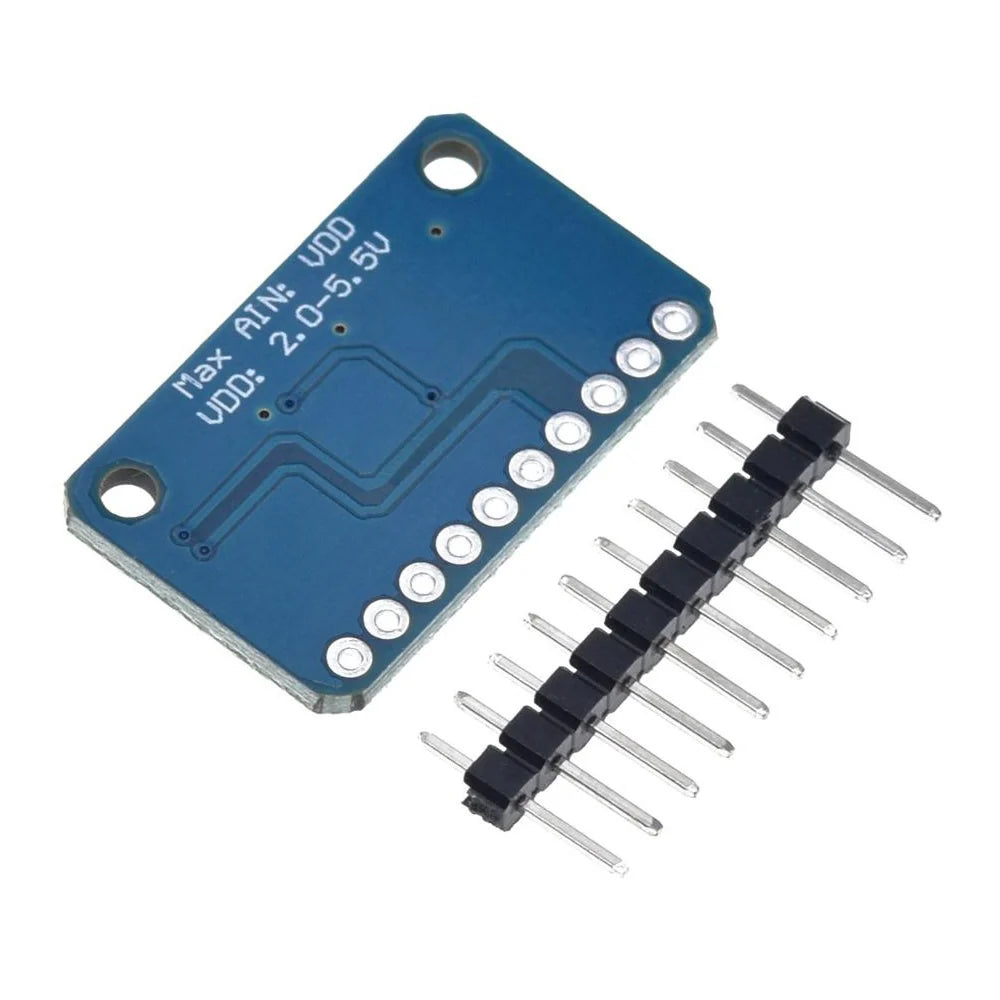

ADS1115 16 Bit I2C Module Precision ADC 4 Channel Development Board

K-TECHNICS
In stock
KSh600.00

Secure checkout

Friendly support

Hassle-free returns

Key Features

  • High-precision 16-bit analog-to-digital conversion
  • 4 single-ended input channels or 2 differential inputs
  • I2C communication interface for easy integration
  • Programmable gain amplifier (PGA) for enhanced sensitivity
  • Low power consumption for battery-powered projects
  • Wide operating voltage compatibility
  • Supports Arduino, Raspberry Pi, ESP32, STM32, and other development platforms
  • Compact module design for prototyping and embedded applications

Technical Specifications

  • ADC Resolution: 16-bit
  • Channels: 4 Single-Ended or 2 Differential Inputs
  • Interface: I2C
  • I2C Address: Configurable
  • Supply Voltage: 2.0V – 5.5V
  • Programmable Gain: Up to ±6.144V input range
  • Sampling Rate: Up to 860 Samples Per Second (SPS)
  • Operating Temperature: -40°C to +125°C

Applications

  • Sensor signal acquisition
  • Data logging systems
  • Industrial monitoring
  • IoT and smart automation projects
  • Battery voltage monitoring
  • Precision measurement systems
