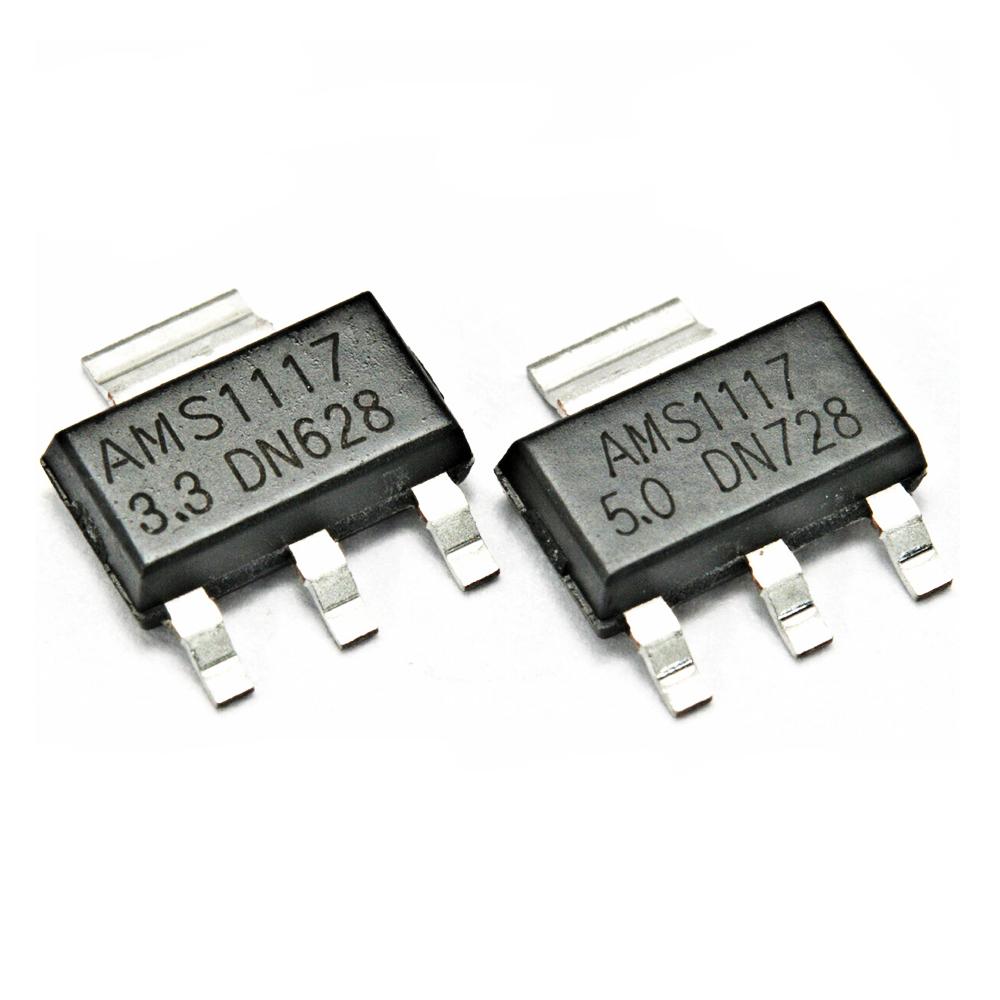

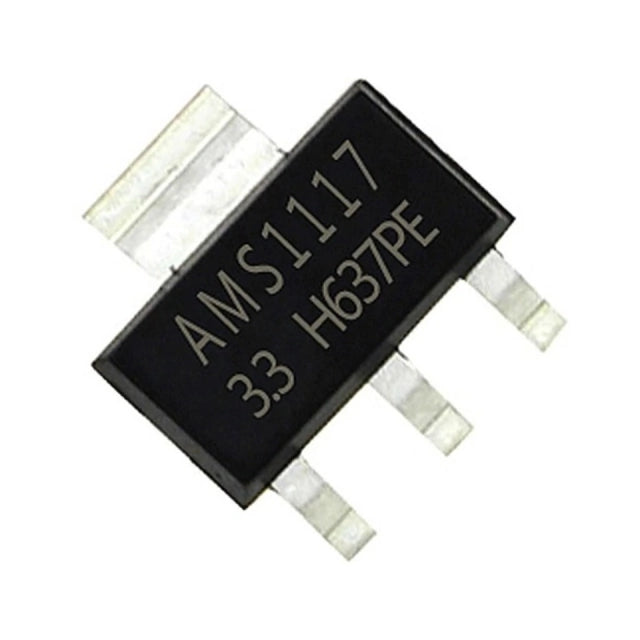

AMS1117-3.3V Voltage Regulator SOT-223

K-TECHNICS
In stock
KSh15.00

Secure checkout

Friendly support

Hassle-free returns

Technical Specifications:

  • Product Type: Linear Voltage Regulator (LDO)
  • IC Model: AMS1117-3.3
  • Output Voltage: 3.3V DC
  • Input Voltage Range: Up to 15V DC (typical)
  • Output Current: Up to 1A (with proper heat dissipation)
  • Dropout Voltage: Approx. 1.1V at full load
  • Regulation Type: Fixed Voltage
  • Package Type: SOT-223
  • Number of Pins: 3 + tab
  • Operating Temperature: -40°C to +125°C
  • Protection Features:
    • Over-temperature protection
    • Current limiting protection

Pin Configuration:

  • Pin 1: Ground (GND)
  • Pin 2: Output (3.3V)
  • Pin 3: Input (VIN)
  • Tab: Connected to Output (VOUT)
