Arduino Mega 2560 pro mini Development board

My Store
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

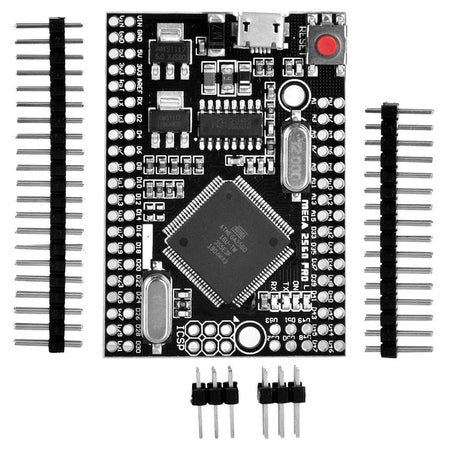

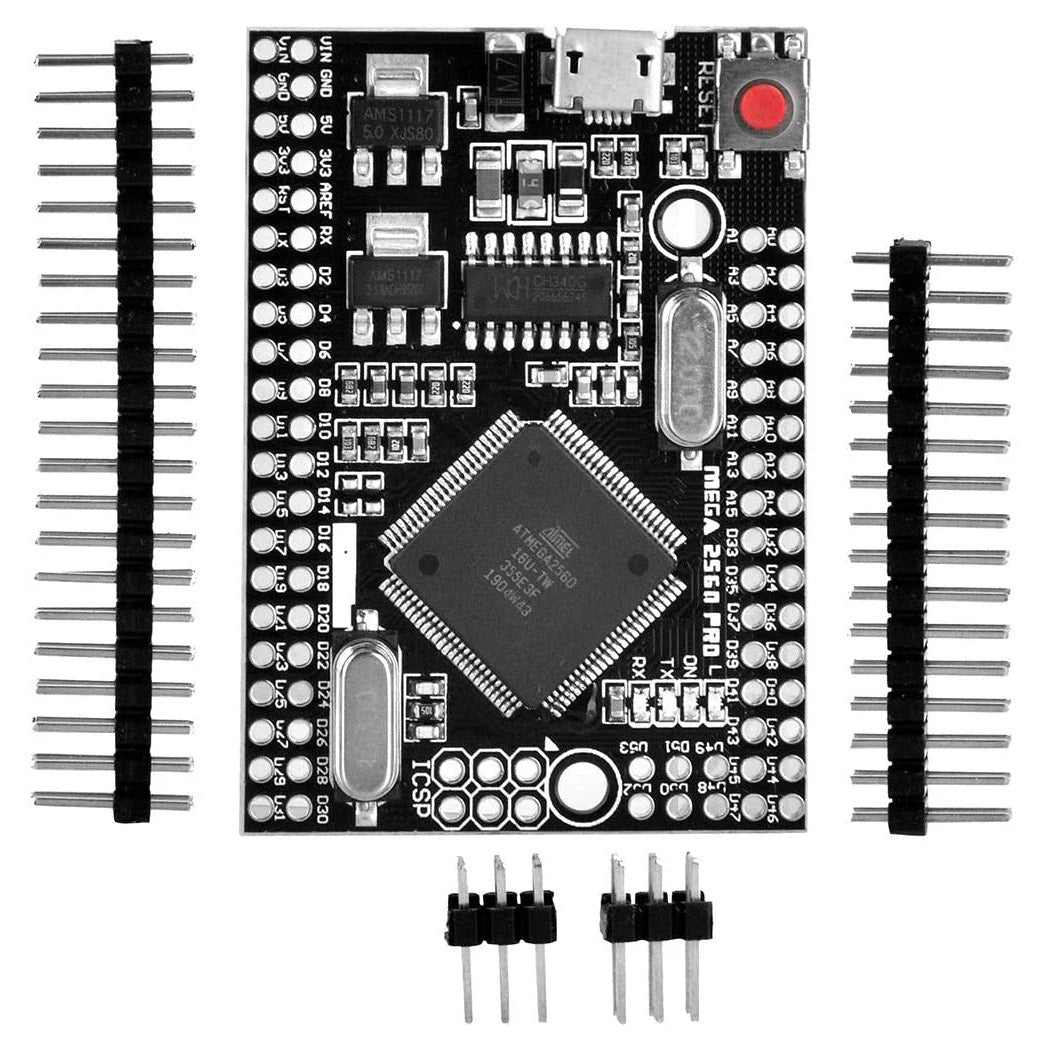

The Arduino Mega 2560 Pro Mini is a scaled-down, compact version of the standard Arduino Mega 2560 Rev3. It retains all the powerful memory and processing capabilities of the original but in a much smaller footprint (roughly 54mmx38mm), making it ideal for breadboards and space-constrained DIY projects.
Core Specifications
  • Microcontroller: ATmega2560 (16 MHz clock speed)
  • USB to TTL: CH340G (requires CH340 drivers on your PC)
  • Digital I/O Pins: 54 (15 can be used as PWM)
  • Analog Input Pins: 16
  • Memory: 256 KB Flash, 8 KB SRAM, and 4 KB EEPROM
  • Logic & Operating Voltage: 5V
  • Input Voltage (Recommended): 6V to 9V DC (up to 18V maximum via Vin/GND)
  • Max Output Current: 800mA (for both 5V and 3.3V LDO voltage regulators)
How to Use It
  1. Drivers: Because it utilizes the CH340G chip, you will need to install the CH340 driver on your computer before your Arduino IDE can recognize the board.
  2. Programming: Connect the board to your PC via a Micro-USB cable. In the Arduino IDE, select "Arduino Mega or Mega 2560" under the Tools > Board menu.
  3. Power Options: You can power the board directly through the Micro-USB cable or connect a regulated power supply (6V - 9V) to the Vin and GND pins
