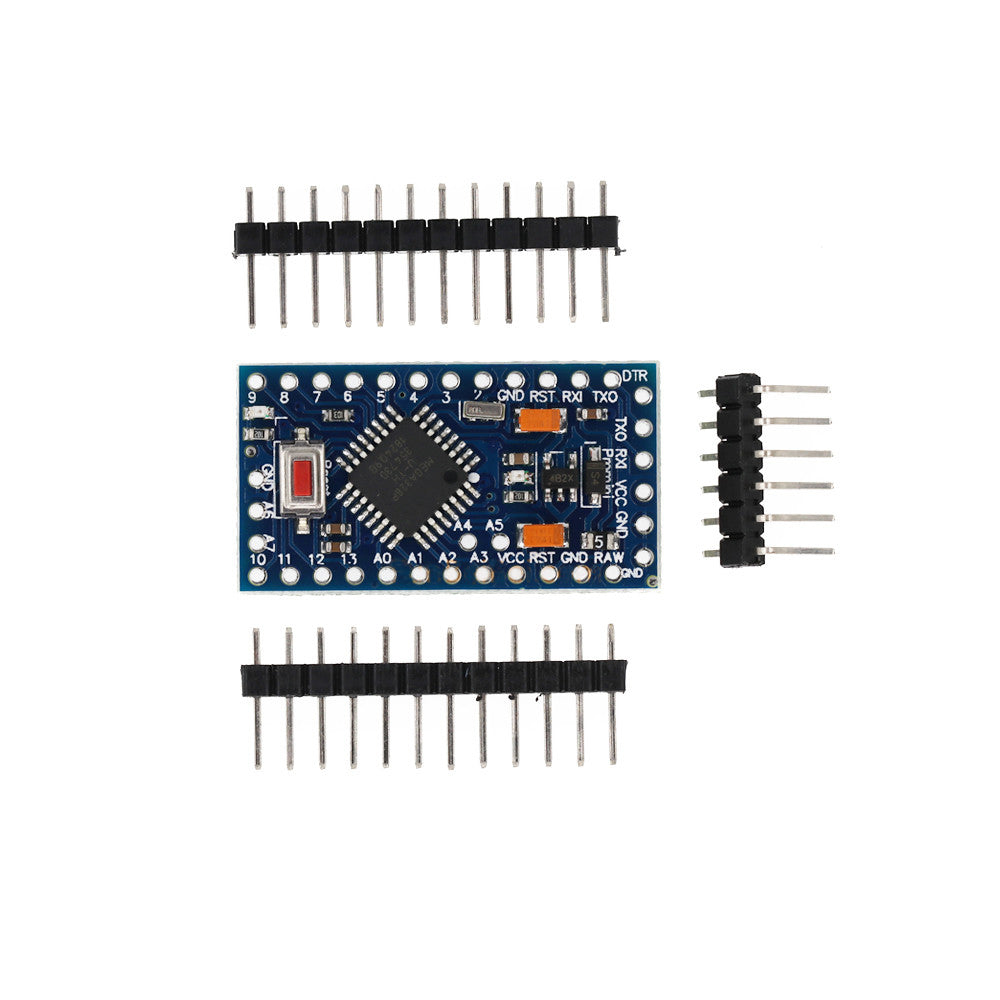

Arduino Pro Mini Atmega328 board 5V/16MHz

My Store
In stock
KSh700.00

Secure checkout

Friendly support

Hassle-free returns

The Arduino Pro Mini (5V/16MHz) is a compact, breadboard-friendly microcontroller board based on the ATmega328P chip. It operates at 5V logic with a 16MHz clock speed, making it an ideal choice for permanent, space-constrained DIY electronics and robotics projects.
Quick Specifications
  • Microcontroller: ATmega328P
  • Operating Voltage: 5V
  • Clock Speed: 16 MHz
  • Digital I/O Pins: 14 (6 provide PWM output)
  • Analog Input Pins: 8
  • Flash Memory: 32 KB (with 2 KB used by the bootloader)
  • SRAM: 2 KB
  • EEPROM: 1 KB
Powering the Board
The board features multiple power pins to accommodate different power sources: [
  • RAW: Connect an unregulated power supply here. The voltage can range from 3.4V to 12V DC, which the onboard regulator drops to 5V.
  • VCC: Connect a regulated 5V power supply directly to this pin.
  • GND: Ground pin.
Programming the Pro Mini
Because of its ultra-compact size, the Pro Mini lacks an onboard USB port. You will need an external USB-to-TTL serial cable (such as a PL2303HX or CP2102) to connect it to your PC.
  1. Connect the USB-to-TTL serial cable/TTL adapter to the 6-pin header at the edge of the board, matching the TXO and RXI pins.
  2. Ensure you have the Arduino IDE downloaded.
  3. In the IDE, go to Tools > Board and select Arduino Pro or Pro Mini.
  4. Set the Processor to ATmega328P (5V, 16MHz)
