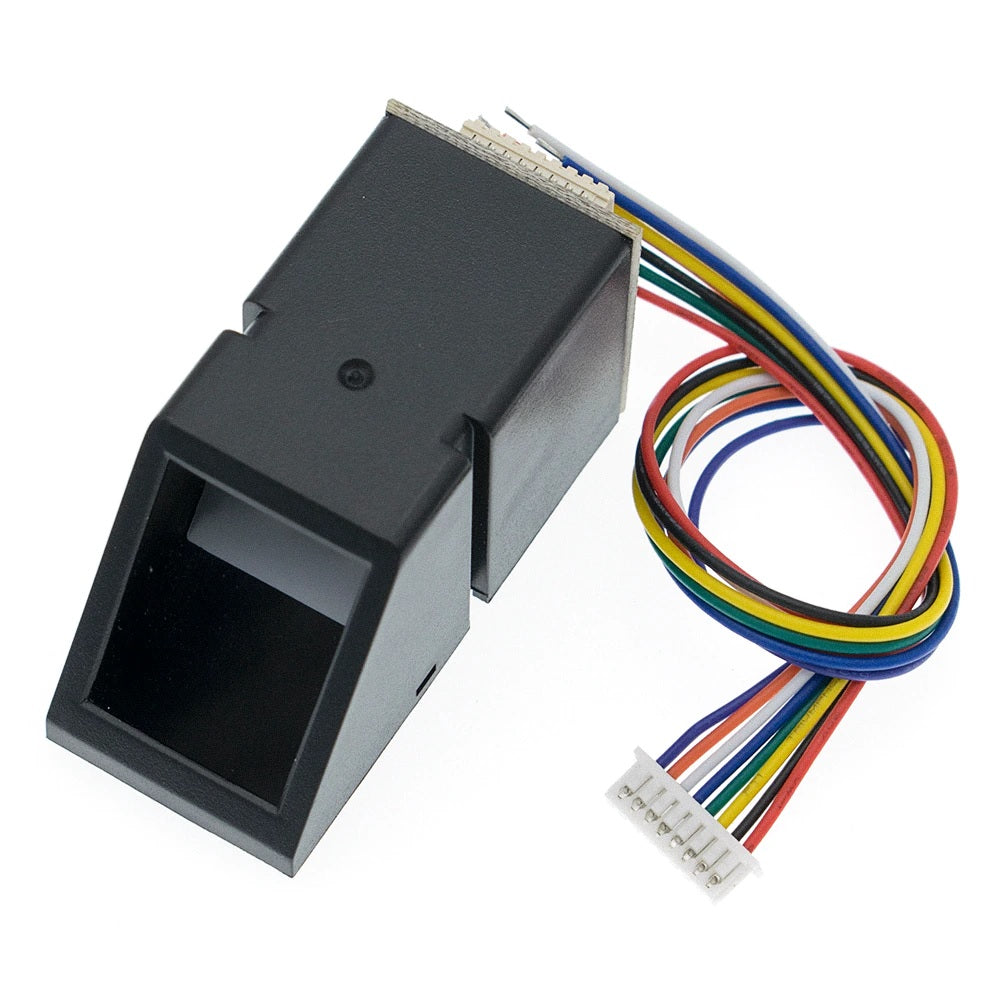

AS608 Optical Fingerprint Sensor

K-TECHNICS
In stock
KSh2,000.00

Secure checkout

Friendly support

Hassle-free returns

The AS608 Optical Fingerprint Sensor is an all-in-one biometric module that captures, processes, and matches fingerprints internally using an onboard DSP chip. It communicates via UART TTL serial with microcontrollers like Arduino, Raspberry Pi, and ESP32.
Technical Specifications
  • Operating Voltage: 3.3V to 5V DC
  • Storage Capacity: Up to 162 templates
  • Imaging Time: < 1.0 second
  • Default Baud Rate: 57600 bps
  • False Acceptance Rate: < 0.001%
  • False Rejection Rate: < 1.0%

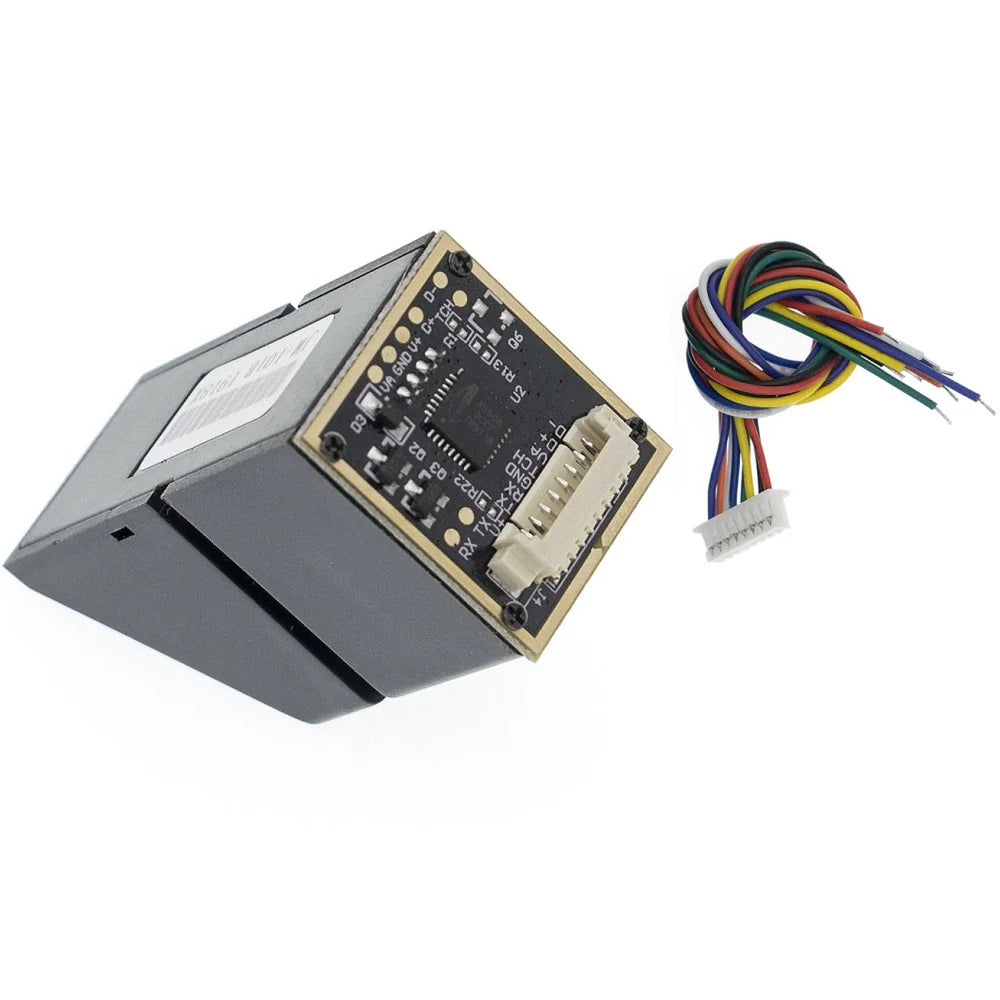

Pinout Configuration
  • VCC: Power Input (3.3V - 5V)
  • GND: Ground
  • TX: Serial Data Output
  • RX: Serial Data Input
How It Works
  • Enrollment: Converts two scans into a 512-byte template saved to flash memory.
  • Matching: Supports 1:1 matching or 1:N database searching.
