ATGM336H GPS & BDS Dual-Mode Navigation Module with Antenna

K-TECHNICS
In stock
KSh1,000.00

Secure checkout

Friendly support

Hassle-free returns

When standard GPS modules struggle to maintain a fix in challenging environments, the ATGM336H Dual-Mode Navigation Module delivers superior reliability. This advanced receiver simultaneously tracks both the US GPS and the Chinese BDS (Beidou) satellite constellations. By utilizing two networks at once, it significantly reduces Time-To-First-Fix (TTFF), increases positioning accuracy, and maintains a stable connection even in urban canyons or dense foliage.

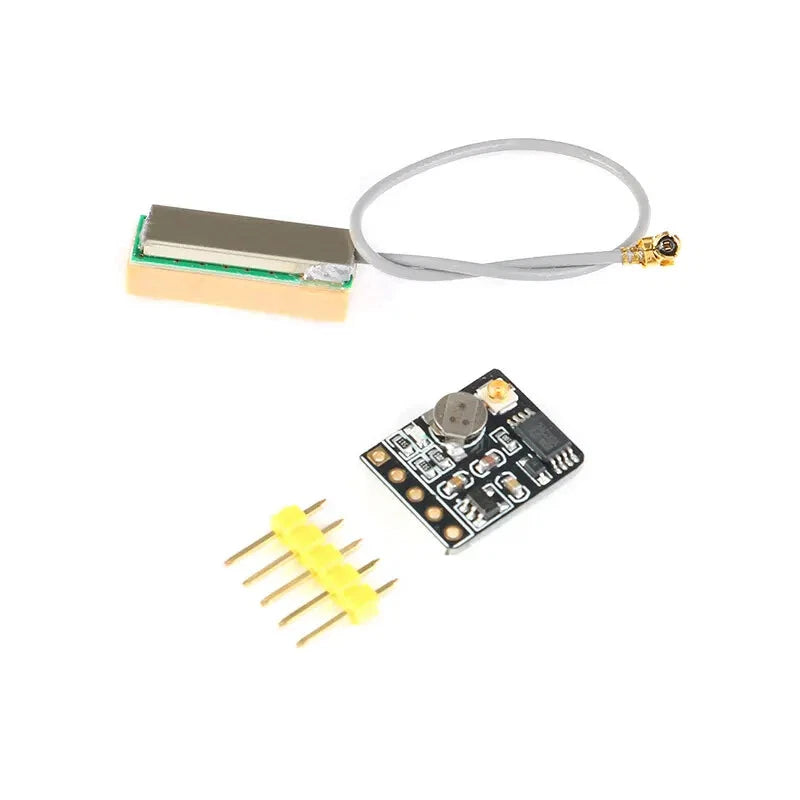

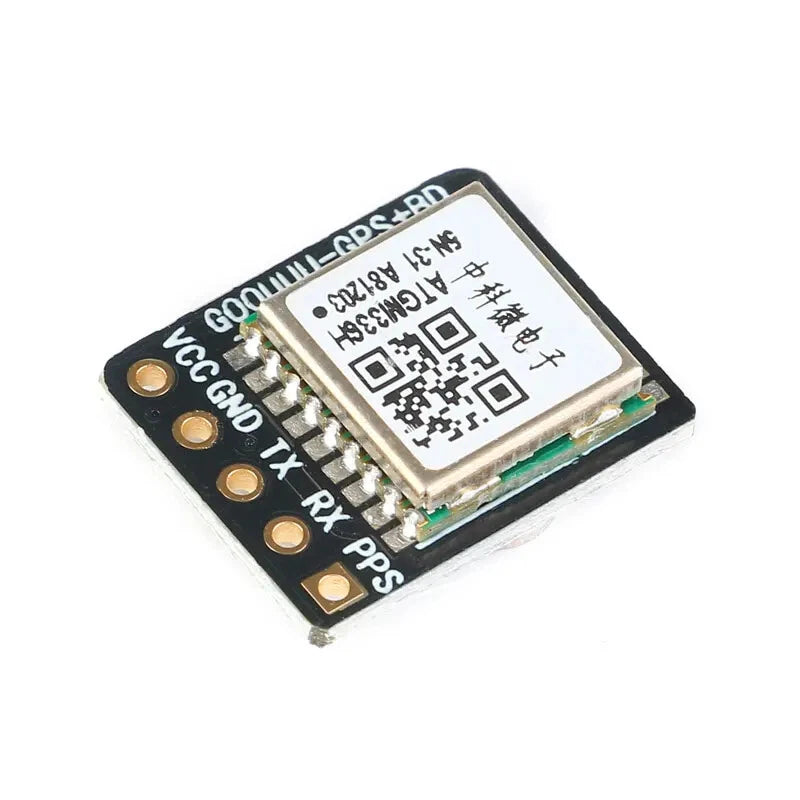

Often used as a direct, high-performance upgrade to older NEO-6M modules, the ATGM336H outputs standard NMEA data over a simple UART serial interface. It comes mounted on a breadboard-friendly breakout board with onboard voltage regulation, making it incredibly easy to connect to standard 3.3V or 5V microcontrollers like the Arduino, ESP32, or STM32.

Perfect For:

  • Drones & Autonomous Vehicles: Provide flight controllers and custom rovers with rock-solid navigation and reliable return-to-home coordinates.

  • Global Asset Tracking: Build highly accurate fleet management trackers, custom dashcams, or anti-theft devices for vehicles.

  • DIY Navigation Projects: Easily parse standard NMEA sentences to build custom digital speedometers, geocaching tools, or high-altitude weather balloons.

Technical Specifications:

  • Navigation Chip: ATGM336H-5N

  • Supported Constellations: GPS (L1) + BDS (B1) Dual-Mode

  • Operating Voltage: 3.3V to 5V DC

  • Communication Interface: UART (Default baud rate: 9600 bps)

  • Data Protocol: Standard NMEA 0183

  • Antenna Type: Includes active ceramic patch antenna (IPEX / U.FL connector)

  • Features: Onboard EEPROM and rechargeable coin cell backup battery for rapid hot starts

  • Positioning Accuracy: ~2.5 meters (CEP)
