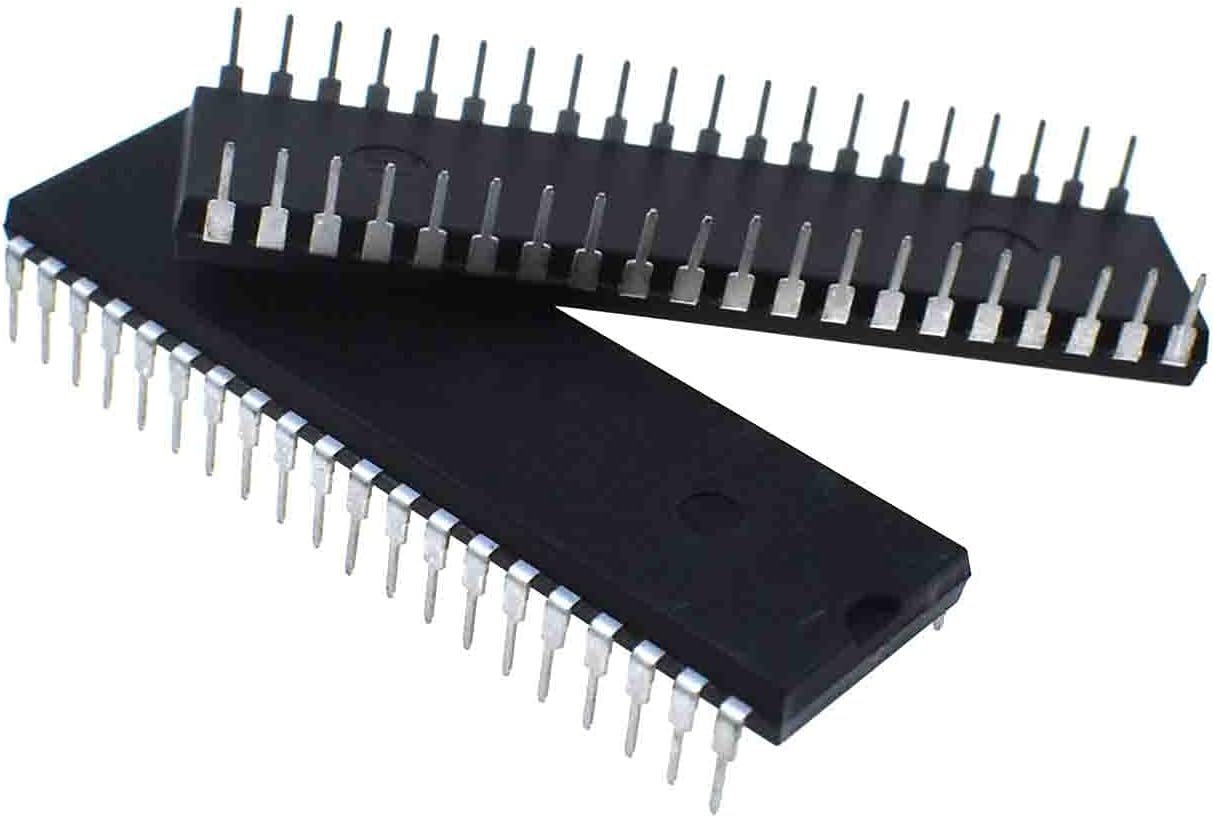

ATmega1284P-PU (8-Bit AVR Microcontroller - 40-Pin DIP Package)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

When a project completely outgrows the memory limits of the ATmega328P, but you still want the simplicity of a through-hole, 5V-tolerant 8-bit architecture, the ATmega1284P-PU is the ultimate upgrade. Often referred to in the maker community as the "MightyCore," this chip is a colossal step up in capability while maintaining the familiar AVR instruction set. It boasts a staggering 128KB of Flash memory and an enormous 16KB of SRAM—eight times the RAM of an Arduino Uno.

The "-PU" designation means this beast is housed in a massive 40-pin Dual In-line Package (DIP). While it takes up significant real estate on a breadboard, it rewards you with 32 programmable I/O pins, multiple hardware UARTs, and an abundance of PWM channels. It is the absolute best choice for complex DIY projects that require driving large LED matrices, parsing heavy JSON data from Wi-Fi modules, or running complex real-time operating systems (RTOS) without having to jump to a 3.3V ARM architecture.

Key Features & Functional Advantages:

  • Massive Memory Footprint: 128KB Flash and 16KB SRAM provide unparalleled headroom for data-heavy applications, graphics rendering buffers, and bloated communication libraries.

  • Dual Hardware UARTs: Features two completely independent hardware serial ports, making it effortless to communicate with a PC and a GPS/Bluetooth module simultaneously without relying on CPU-intensive SoftwareSerial.

  • Extensive I/O: 32 general-purpose I/O pins give you the freedom to connect numerous sensors, relays, and displays without needing external shift registers or I2C expanders.

  • Breadboard Compatible (DIP-40): The 0.1-inch pin pitch allows for easy prototyping on large breadboards or permanent installation in a 40-pin IC socket.

  • Robust 5V Logic: Natively operates at 5V, allowing for direct interfacing with classic industrial sensors, 5V relays, and older character LCDs without level shifters.

Perfect For:

  • Advanced DIY Electronics: The go-to chip for building custom retro gaming consoles, complex 3D printer controllers, and multi-axis CNC machines.

  • Heavy Data Logging: The massive 16KB of SRAM allows for huge data buffers before writing to an SD card, ensuring zero data loss during high-speed telemetry collection.

  • Complex Display Driving: Easily handles the large memory buffers required to drive color TFT screens and complex dot-matrix LED displays natively.

  • "MightyCore" Arduino Projects: Fully supported by the third-party "MightyCore" Arduino hardware package, allowing you to use familiar IDE libraries with a massively upgraded chip.

Technical Specifications:

  • Core Processor: 8-Bit AVR RISC (PicoPower)

  • Maximum Clock Speed: 20 MHz

  • Program Memory (Flash): 128 KB

  • SRAM: 16 KB

  • EEPROM: 4 KB

  • Operating Voltage Range: 1.8V – 5.5V

  • Total I/O Pins: 32

  • Analog-to-Digital Converter (ADC): 8 Channels, 10-bit resolution

  • Communication Interfaces: 2 x UART/USART, 1 x SPI, 1 x I2C (Two-Wire Interface)

  • Hardware Timers: Four total (Two 8-bit, Two 16-bit)

  • Package / Case: 40-DIP (0.600", 15.24mm width)

  • Mounting Type: Through-Hole (PTH)
