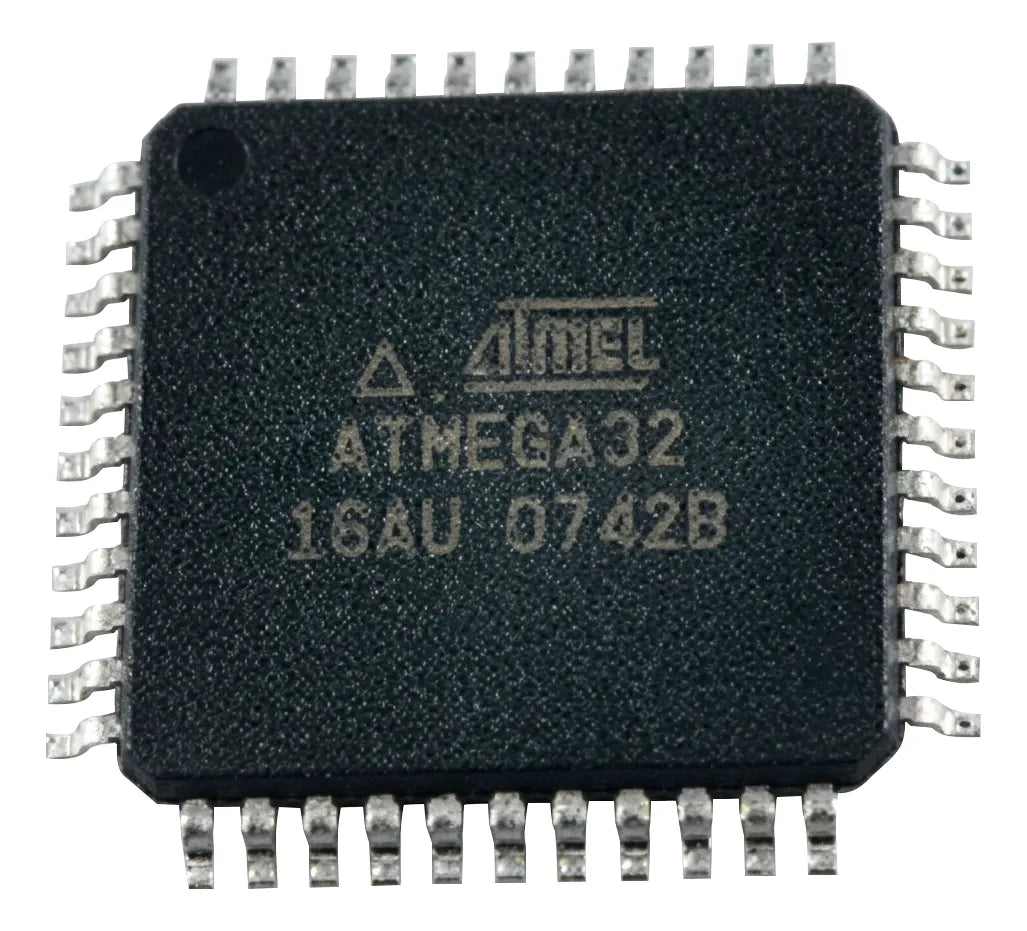

ATMEGA32-16AU (8-Bit AVR Microcontroller with JTAG - 44-TQFP SMD Package)

When your custom PCB design hits an I/O bottleneck with standard 28-pin or 32-pin microcontrollers, but you don't necessarily need the massive memory overhead of an ATmega2560 or ATmega1284P, the ATMEGA32-16AU sits in the perfect "Goldilocks" zone. While it shares the same 32KB of Flash memory and 2KB of SRAM as the ubiquitous ATmega328P, its architecture is vastly expanded physically. Housed in a 44-pin Thin Quad Flat Package (TQFP), it exposes four complete 8-bit ports, delivering a total of 32 programmable I/O pins.

One of the most critical advantages this chip holds over smaller AVRs is its integrated IEEE 1149.1 compliant JTAG interface. Instead of relying solely on "Serial.print" statements to figure out why your code is crashing, you can connect a JTAG debugger (like an Atmel-ICE) to step through your C/C++ firmware line-by-line, set hardware breakpoints, and inspect memory registers in real-time. Rated for 16MHz operation at 5V, the ATmega32-16AU is a highly reliable, electrically robust microcontroller favored in legacy industrial designs and custom multi-sensor gateway boards.

Key Features & Functional Advantages:

• Expanded I/O Capacity: Provides 32 general-purpose input/output lines, allowing you to drive multiple 7-segment displays, read massive matrix keypads, or control banks of relays without needing external shift registers.

• Integrated JTAG Debugging: Features a dedicated JTAG port for extensive on-chip debugging and boundary-scan capabilities, drastically speeding up firmware development for complex state machines.

• Surface-Mount TQFP-44: The 0.8mm pin pitch on this surface-mount package balances high pin density with ease of assembly, making it suitable for both automated PCB fabrication and skilled hand-soldering.

• Robust 5V Tolerance: Operates cleanly at 5V logic levels, ensuring seamless interfacing with rugged industrial sensors, 5V LCD modules, and older TTL logic gates.

• Rich Analog & Digital Peripherals: Equipped with an 8-channel 10-bit ADC, three hardware timers, and dedicated hardware interfaces for SPI, UART, and I2C (TWI).

Perfect For:

• Multi-Sensor Telemetry Nodes: The ideal controller for custom PCBs that need to simultaneously read dozens of analog environmental sensors and relay the data via UART to a wireless modem.

• Industrial Control Systems: Historically favored in rugged automation environments for reading limit switches, managing relay banks, and running precise timing loops.

• Custom User Interfaces: Easily provides the vast number of pins required to directly drive multiplexed LED arrays and read mechanical button matrices on custom control panels.

• Embedded Systems Education: A fantastic chip for transitioning away from the Arduino IDE to learn bare-metal C programming, register manipulation, and live hardware debugging via JTAG.

Technical Specifications:

• Core Processor: 8-Bit AVR RISC

• Maximum Clock Speed: 16 MHz

• Program Memory (Flash): 32 KB

• SRAM: 2 KB

• EEPROM: 1 KB

• Operating Voltage Range: 4.5V – 5.5V (Required for reliable 16MHz operation; down to 2.7V for lower clock speeds)

• Total I/O Pins: 32

• Analog-to-Digital Converter (ADC): 8 Channels, 10-bit resolution

• Communication Interfaces: 1 x UART/USART, 1 x SPI, 1 x I2C (Two-Wire Interface), 1 x JTAG

• Hardware Timers: Three total (Two 8-bit, One 16-bit)

• Package / Case: 44-TQFP (Thin Quad Flat Package)

• Mounting Type: Surface Mount (SMD/SMT)

• Operating Temperature: -40°C to 85°C (Industrial)
