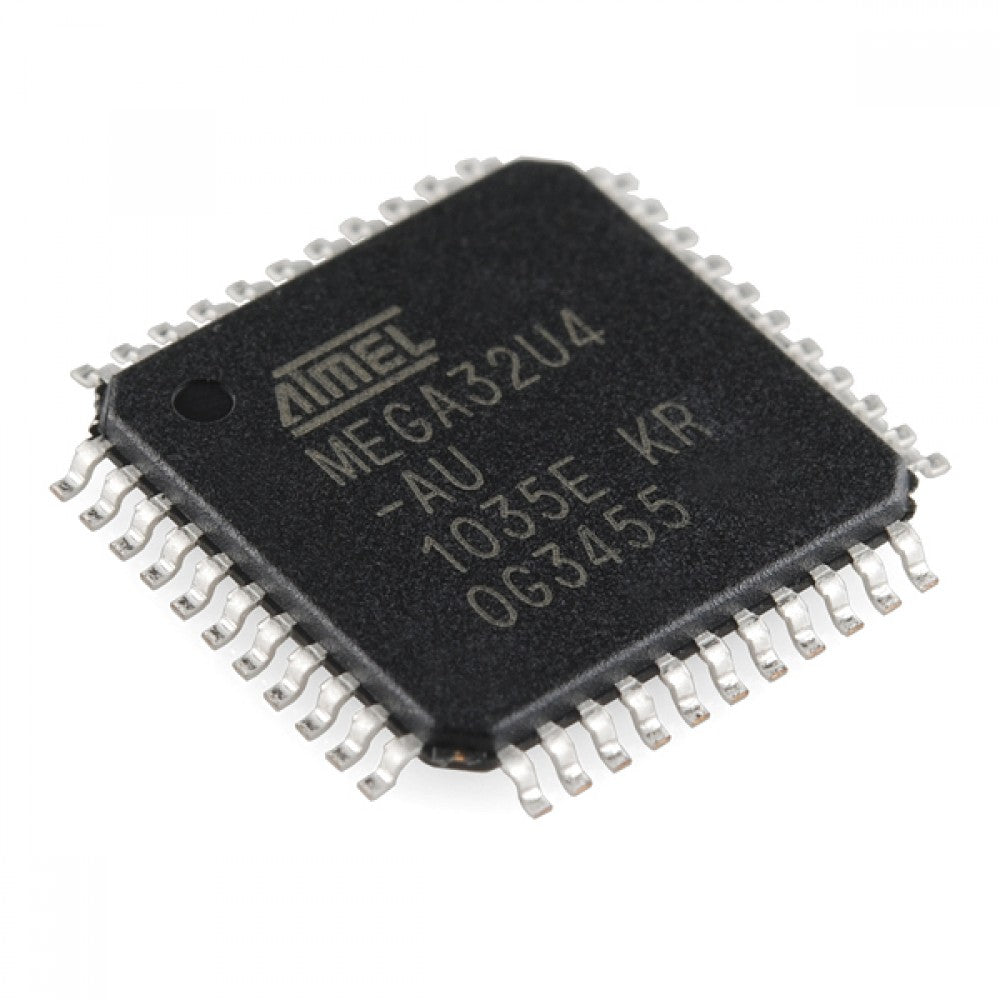

ATMEGA32U4-AU (8-Bit AVR Microcontroller with Native USB - TQFP-44 SMD Package)

When your project needs to talk directly to a computer without jumping through hoops, the ATMEGA32U4-AU is the microcontroller you want on your board. What sets this chip entirely apart from the standard ATmega328P is its massive killer feature: a built-in, full-speed USB 2.0 transceiver. This completely eliminates the need to include a separate, external USB-to-Serial converter chip (like an FT232RL or CH340) in your circuit. By handling USB communication natively, it saves valuable PCB real estate, reduces your Bill of Materials (BOM), and allows the chip to natively emulate standard Human Interface Devices (HID).

Housed in a 44-pin Thin Quad Flat Package (TQFP), this surface-mount IC offers a highly forgiving 0.8mm pin pitch that is well within the realm of hand-soldering for DIY prototypes, yet perfectly suited for automated pick-and-place production runs. As the silicon heart of the wildly popular Arduino Leonardo and Pro Micro development boards, it benefits from massive community support and drop-in code libraries, making it incredibly easy to program as a custom mouse, macro keyboard, or MIDI controller right out of the box.

Key Features & Functional Advantages:

• Native USB 2.0 Interface: Plugs straight into a PC and can instantly act as a virtual COM port, a standard HID keyboard/mouse, or a plug-and-play MIDI device without requiring custom PC drivers.

• Streamlined BOM: By removing the need for a secondary USB-to-UART bridge chip, your PCB designs become smaller, cheaper, and less complex to route.

• Differential ADC Channels: Unlike basic AVRs, the 32U4 features a programmable gain stage and differential analog inputs, making it far superior for reading raw, unamplified signals from audio sensors or load cells.

• Generous Memory Footprint: Comes equipped with 32KB of Flash memory and 2.5KB of SRAM, providing plenty of overhead for complex USB descriptor libraries and demanding C/C++ firmware.

• Hardware Multiplier: Features a built-in 2-cycle hardware multiplier, significantly speeding up math-heavy operations and sensor data processing compared to older 8-bit chips.

Perfect For:

• Custom PC Peripherals: The absolute go-to processor for designing custom mechanical keyboards, macro-pads, flight simulator panels, and arcade joystick controllers.

• DIY MIDI Instruments: Flawlessly handles the timing and USB protocol required to build custom DJ mixers, synthesizer keyboards, and digital drum kits.

• Arduino-Compatible PCB Design: The perfect chip for migrating a breadboarded "Pro Micro" project onto a professional, single-board surface-mount design.

• Hardware Dongles & Security Keys: Easily programmed to act as a secure, standalone USB dongle for automated password injection or script execution.

Technical Specifications:

• Core Processor: 8-Bit AVR RISC

• Maximum Clock Speed: 16 MHz

• Program Memory (Flash): 32 KB (Note: 4KB is typically reserved if using a standard bootloader)

• SRAM: 2.5 KB

• EEPROM: 1 KB

• Operating Voltage Range: 2.7V – 5.5V

• Total I/O Pins: 26

• Analog-to-Digital Converter (ADC): 12 Channels, 10-bit resolution (Includes differential channels with programmable gain)

• Communication Interfaces: 1 x Native USB 2.0 (Full Speed), 1 x UART/USART, 1 x SPI, 1 x I2C (Two-Wire Interface)

• Package / Case: 44-TQFP (Thin Quad Flat Package)

• Mounting Type: Surface Mount (SMD/SMT)

• Operating Temperature: -40°C to 85°C (Industrial)
