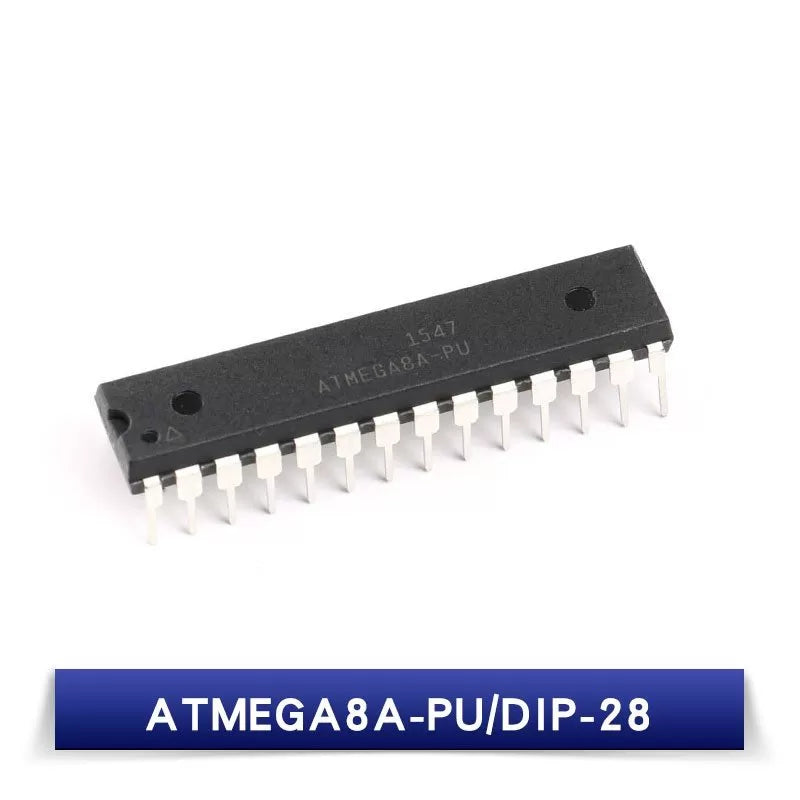

ATMEGA8A-PU (8-Bit AVR Microcontroller - DIP-28 Package)

While surface-mount chips are excellent for final production, the ATMEGA8A-PU is the undisputed king of the maker's workbench. This microcontroller utilizes the exact same reliable, cost-effective 8-bit AVR silicon as its surface-mount counterpart, but it is housed in a traditional 28-pin Dual In-line Package (DIP). This through-hole form factor means it perfectly spans the center trench of a standard solderless breadboard, allowing you to instantly prototype circuits, test firmware, and interface with sensors without needing to solder a single pin or use breakout boards.

The ATmega8A-PU is highly favored in environments where component swapping is a necessity. By soldering a standard 28-pin IC socket into your perfboard or custom PCB, you can easily press this chip into place. If a high-voltage mistake lets the "magic smoke" out during testing, you simply pry the dead chip out of the socket and push a fresh one in—no desoldering required. It delivers 8KB of Flash memory, rock-solid hardware timers, and native support for SPI, I2C, and UART communications, making it an incredibly versatile brain for your 5V logic projects.

Key Features & Functional Advantages:

• Breadboard Native: The 0.1-inch (2.54mm) pin pitch allows for effortless insertion into standard prototyping breadboards and through-hole prototyping boards (perfboards).

• Socket Compatible: Ideal for permanent installations using a 28-pin DIP socket, ensuring the microcontroller can be easily removed for firmware updates via an external programmer or replaced if damaged.

• Robust 5V Tolerance: Operates natively up to 5.5V, meaning you can interface it directly with traditional 5V relays, character LCDs, and classic TTL logic gates without requiring level shifters.

• Cost-Effective Prototyping: Provides the familiar architecture of the AVR family (similar to the Arduino Uno's ATmega328P) at a lower cost for projects that do not require massive amounts of program memory.

• Low Power Consumption: Features a highly efficient architecture with multiple sleep modes, making it suitable for battery-powered desktop gadgets and standalone data loggers.

Perfect For:

• Rapid Breadboard Prototyping: The best starting point for testing new circuit topologies and verifying C/C++ firmware logic before committing to a custom printed circuit board.

• Educational STEM Kits: The standard format for university engineering labs and high school electronics classes, as it requires zero specialized surface-mount soldering skills to use.

• DIY Hobbyist Projects: A fantastic, budget-friendly controller for custom alarm clocks, sensor readouts, basic automation, and interactive art installations.

• Legacy Hardware Repair: A direct drop-in replacement for reviving older electronic equipment or retrofitting older AVR-based circuit boards.

Technical Specifications:

• Core Processor: 8-Bit AVR RISC

• Maximum Clock Speed: 16 MHz

• Program Memory (Flash): 8 KB

• SRAM: 1 KB

• EEPROM: 512 Bytes

• Operating Voltage Range: 2.7V – 5.5V

• Total I/O Pins: 23

• Analog-to-Digital Converter (ADC): 6 Channels, 10-bit resolution (Note: The DIP-28 package has 2 fewer ADC channels than the TQFP package)

• Communication Interfaces: 1 x UART/USART, 1 x SPI, 1 x I2C (Two-Wire Interface)

• Package / Case: 28-DIP (0.300", 7.62mm width)

• Mounting Type: Through-Hole (PTH)

• Operating Temperature: -40°C to 85°C (Industrial)
