C2272 315MHz 4 Channel Wireless RF Remote Control Transmitter Receiver Module

K-TECHNICS
In stock
KSh700.00

Secure checkout

Friendly support

Hassle-free returns

Key Features:

  • 315MHz wireless RF remote control system
  • 4 independent control channels
  • Includes transmitter and decoder receiver board
  • ASK modulation for reliable RF communication
  • Fixed-code encoder design
  • Wireless range up to 100m (open field)
  • Four digital output channels (D0–D3)
  • Valid transmission indicator output (VT)
  • Low power consumption
  • Easy integration with relay modules and microcontrollers

Remote Control Transmitter Specifications:

  • Operating Voltage: DC 12V
  • Battery Type: 27A / 12V battery (1 piece)
  • Operating Current: Approx. 10mA at 12V
  • Transmitting Frequency: 315MHz
  • Modulation Mode: ASK (Amplitude Shift Keying)
  • Encoder Type: Fixed Code
  • Transmission Power: 10mW at 12V
  • Transmission Distance: 50–100m (open field)
  • Receiver Sensitivity Requirement: Approx. -100dBm

Decoder Receiver Board Specifications:

  • Operating Voltage: DC 5V
  • Receiving Frequency: 315MHz
  • Receiver Sensitivity: -98dB
  • Number of Channels: 4 Channels
  • Output Pins:
    • VT – Valid transmission signal output
    • D3 – Data output channel 3
    • D2 – Data output channel 2
    • D1 – Data output channel 1
    • D0 – Data output channel 0
    • +5V – Power input
    • GND – Ground
  • Module Dimensions: 41 × 22 × 6.6 mm

How It Works:

  • Each button on the remote corresponds to one receiver output:
    • Button 1 → D0 output HIGH
    • Button 2 → D1 output HIGH
    • Button 3 → D2 output HIGH
    • Button 4 → D3 output HIGH
  • When a valid signal is received, the VT pin outputs HIGH, which can be used to trigger a relay or control circuit.

Package Includes:

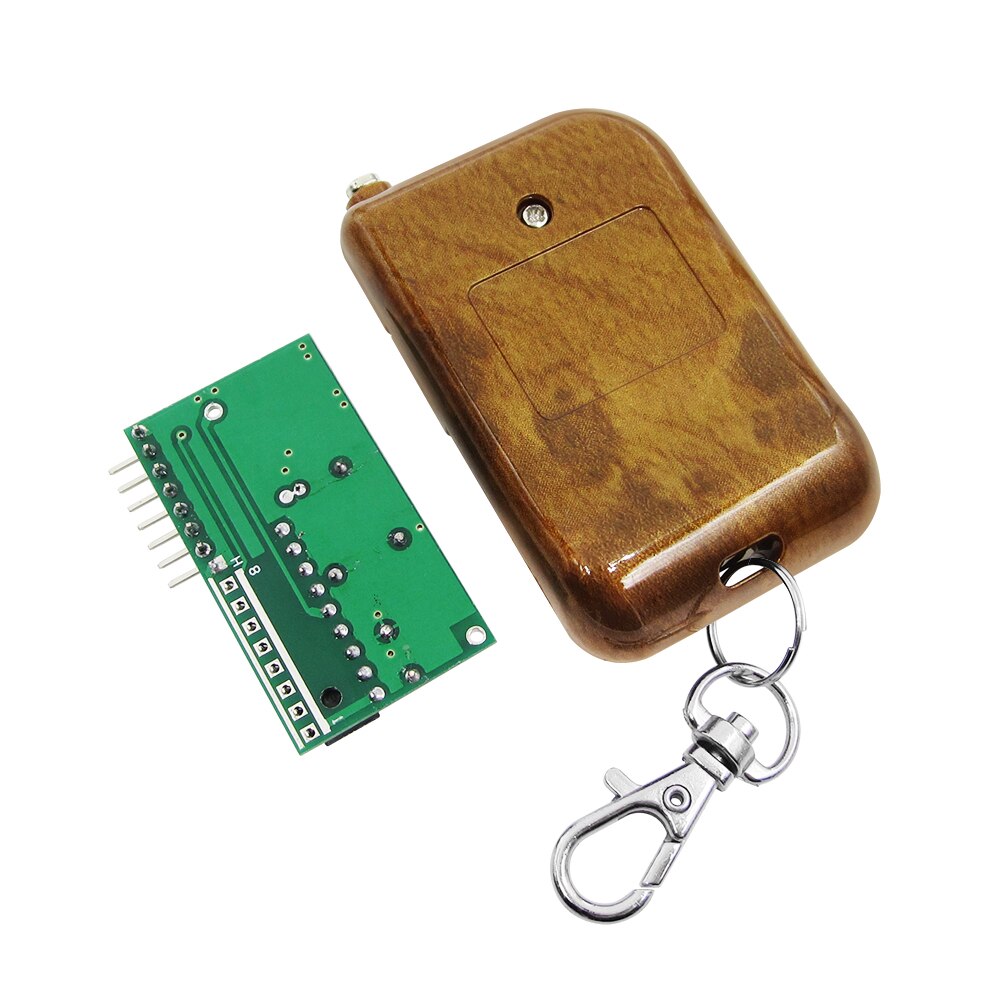

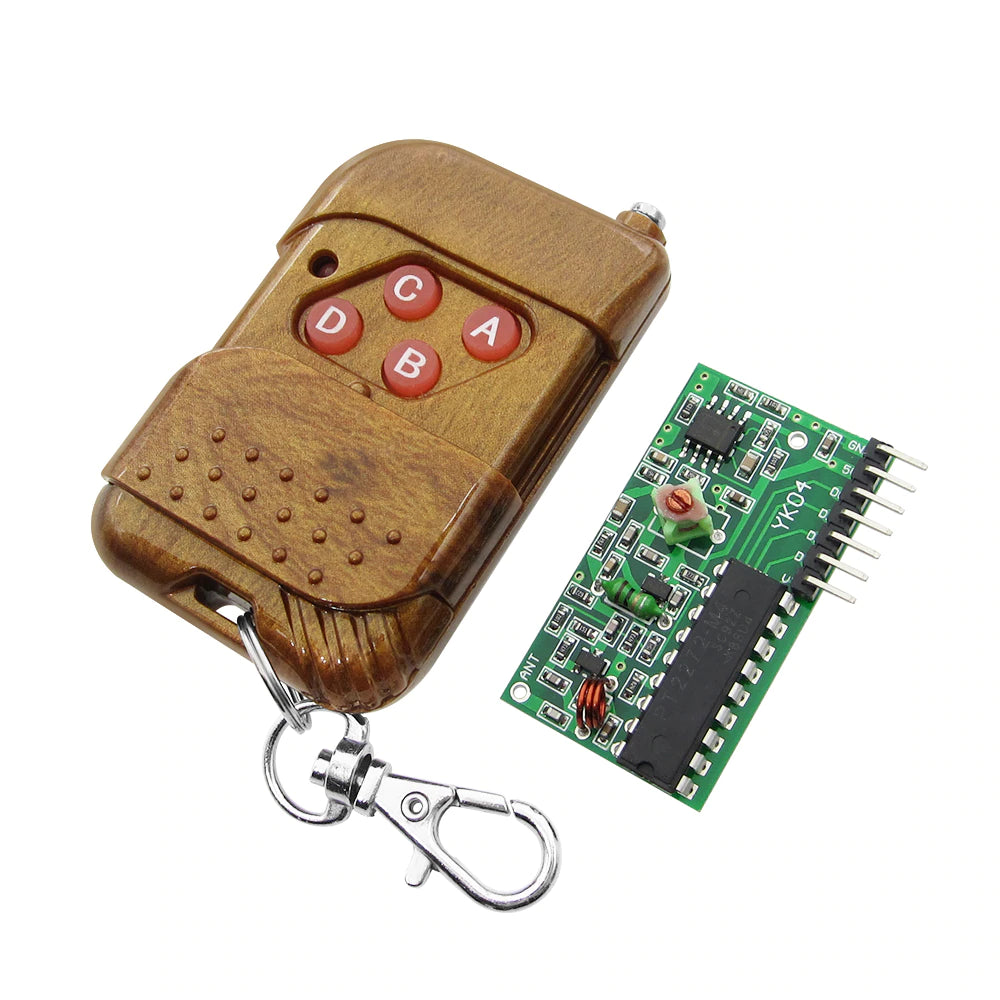

  • 1 × 315MHz 4-Button RF Remote Transmitter
  • 1 × 4-Channel RF Decoder Receiver Module
