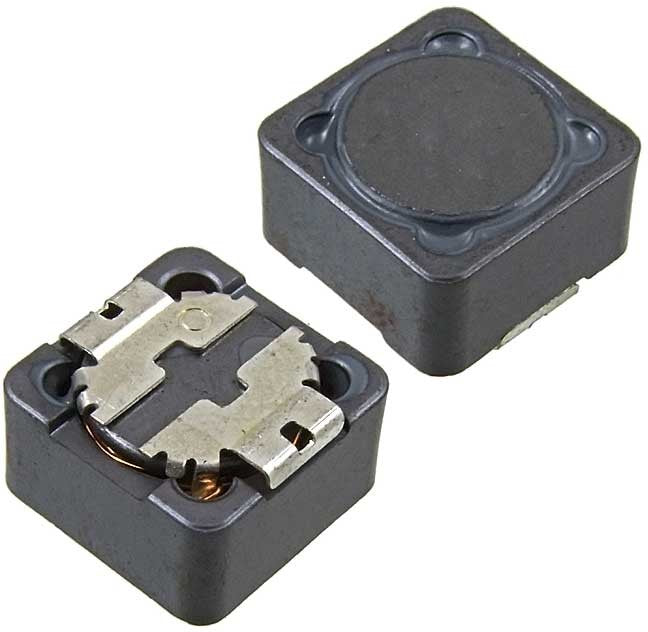

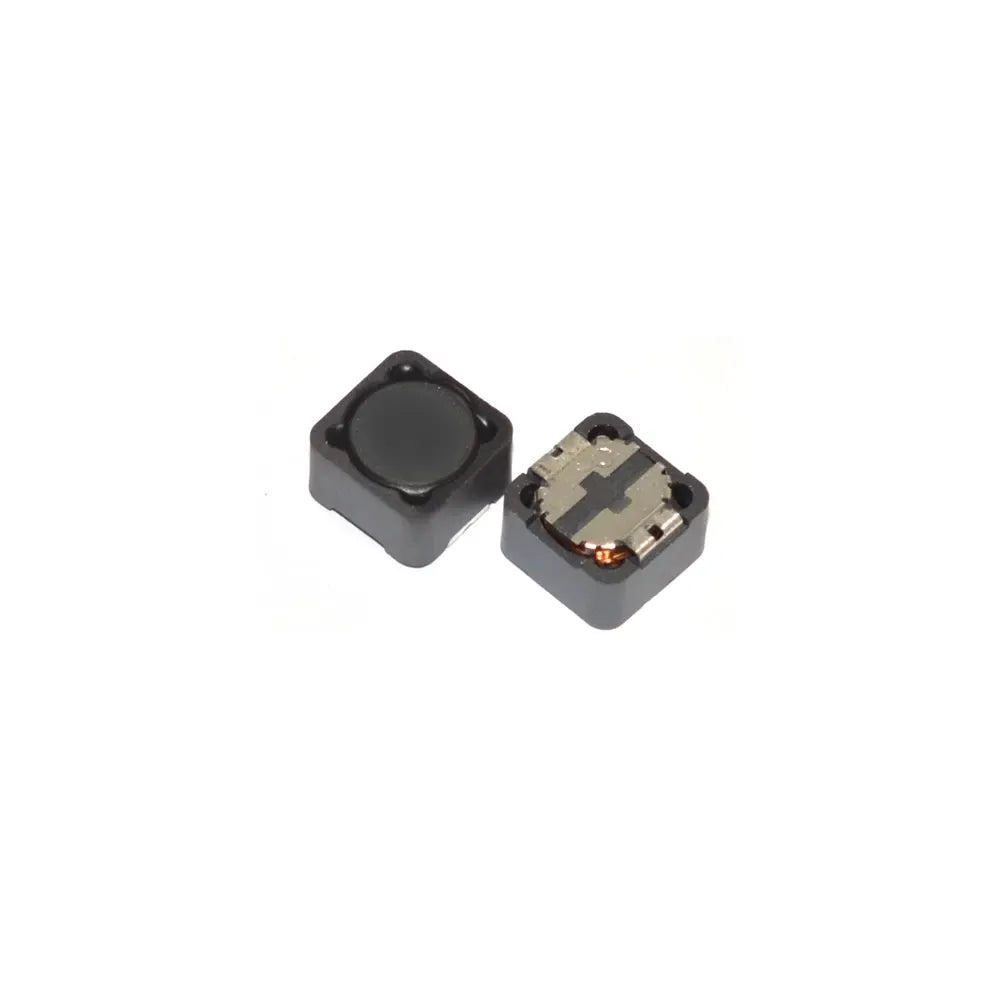

CDRH127 SMD Power Inductor (12×12×7 mm) – Multiple Inductance Values

K-TECHNICS
Inductance

Secure checkout

Friendly support

Hassle-free returns

Designed with a compact 12×12×7 mm footprint, this shielded inductor is ideal for space-constrained applications requiring stable current handling and efficient energy storage.

🔧 Key Features

  • Compact SMD Design: 12×12×7 mm footprint for easy PCB integration
  • Magnetically Shielded: Minimizes EMI for cleaner circuit performance
  • Wide Inductance Range: Available in multiple values (from ~1µH up to 180µH+)
  • High Current Capability: Supports demanding DC-DC converter applications
  • Low DC Resistance (DCR): Improves efficiency and reduces power loss
  • Robust Construction: Ferrite drum core for durability and stability

🌡️ Specifications

  • Inductance Range: Wide range (±20% tolerance typical)
  • Operating Temperature: -40°C to +100°C
  • Mounting Type: Surface Mount (SMD)
  • Core Type: Ferrite, shielded

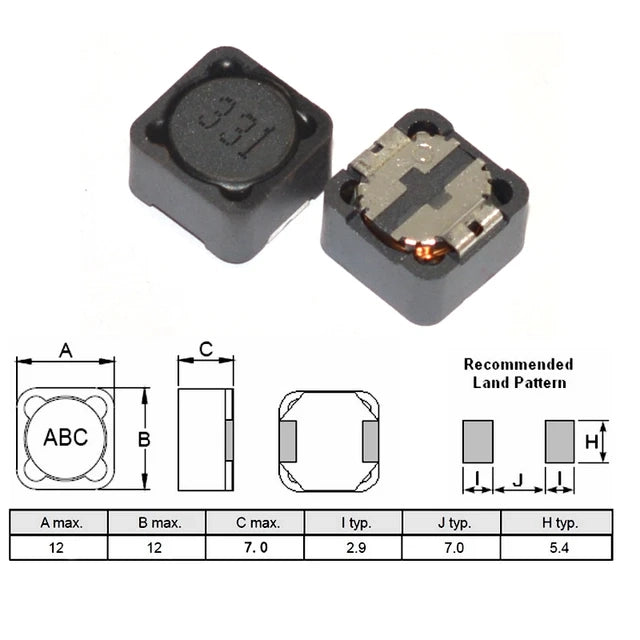

  • Package Size: 12.3 × 12.3 × 8.0 mm (max)

📦 Package Includes

  • 1× CDRH127 SMD Power Inductor (Select your preferred inductance value)
