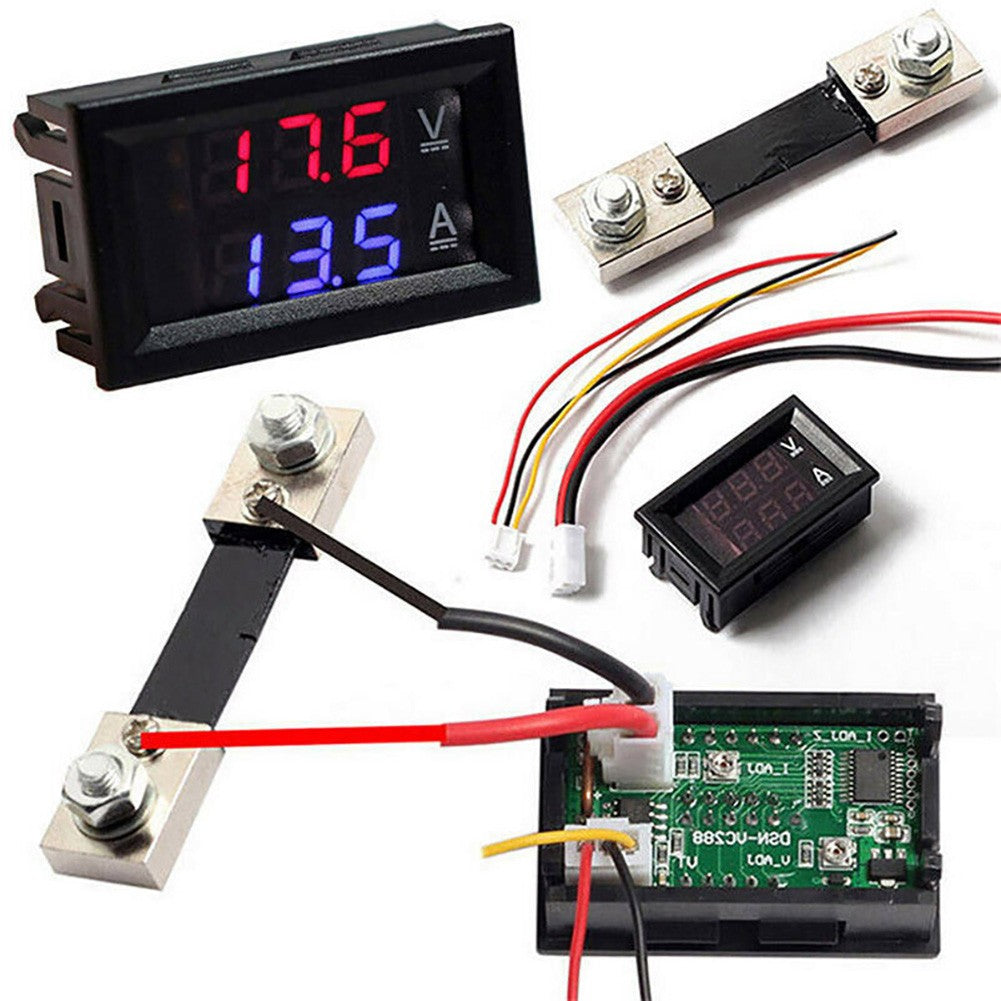

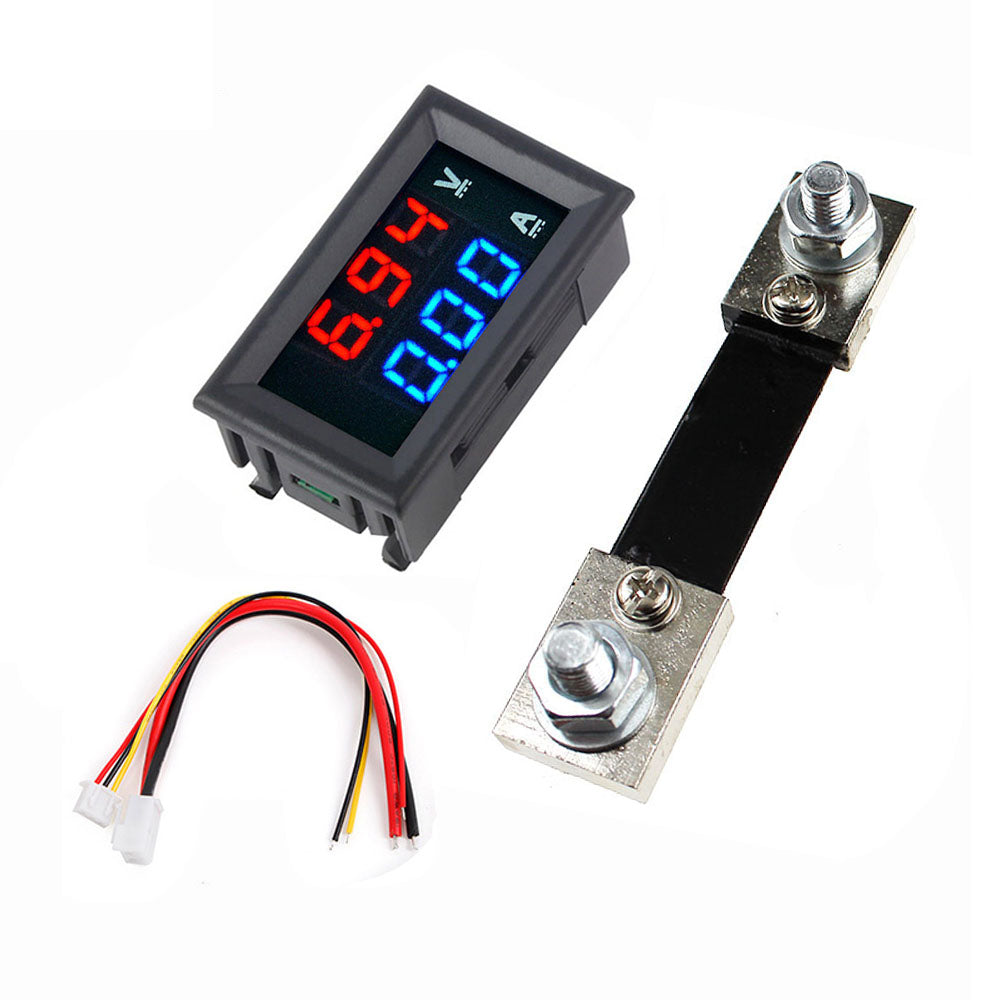

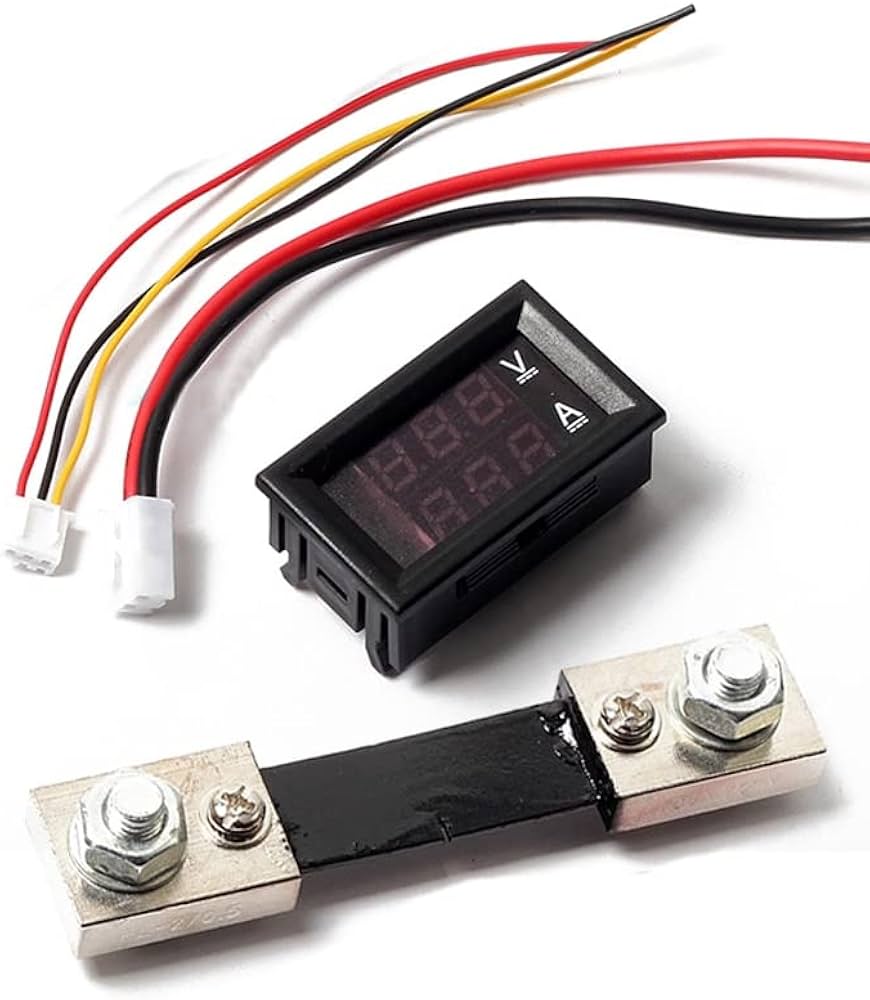

DC 100V 50A LED Panel Voltmeter Ammeter Tester (with External Shunt)

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

Features

  • Dual LED display: Red (Voltage) + Blue (Current)
  • Measures DC voltage up to 100V
  • Measures DC current up to 50A (with external shunt)
  • High-precision real-time monitoring
  • Includes external shunt for high-current measurement
  • Bright and easy-to-read LED display
  • Compact panel mount design
  • Suitable for professional and DIY applications

Technical Specifications

Parameter Specification
Product Type Voltmeter + Ammeter Panel Meter
Display Dual LED (Red Voltage / Blue Current)
Voltage Range DC 0 – 100V
Current Range DC 0 – 50A (with external shunt)
Power Supply Self-powered from measured circuit
Shunt Type External precision shunt resistor
Accuracy ±1% (typical)
Display Type LED Digital (3-digit)
Refresh Rate Fast real-time update (~300ms)
Wiring Type 3-wire + shunt connection
Operating Temperature -10°C to 65°C
Mounting Type Panel mount

Wiring Instructions

  • Red wire: Positive power supply (from measured system)
  • Black wire: Common ground (negative)
  • Yellow wire: Voltage measurement input
  • Shunt resistor: Connected in series with load for current measurement
