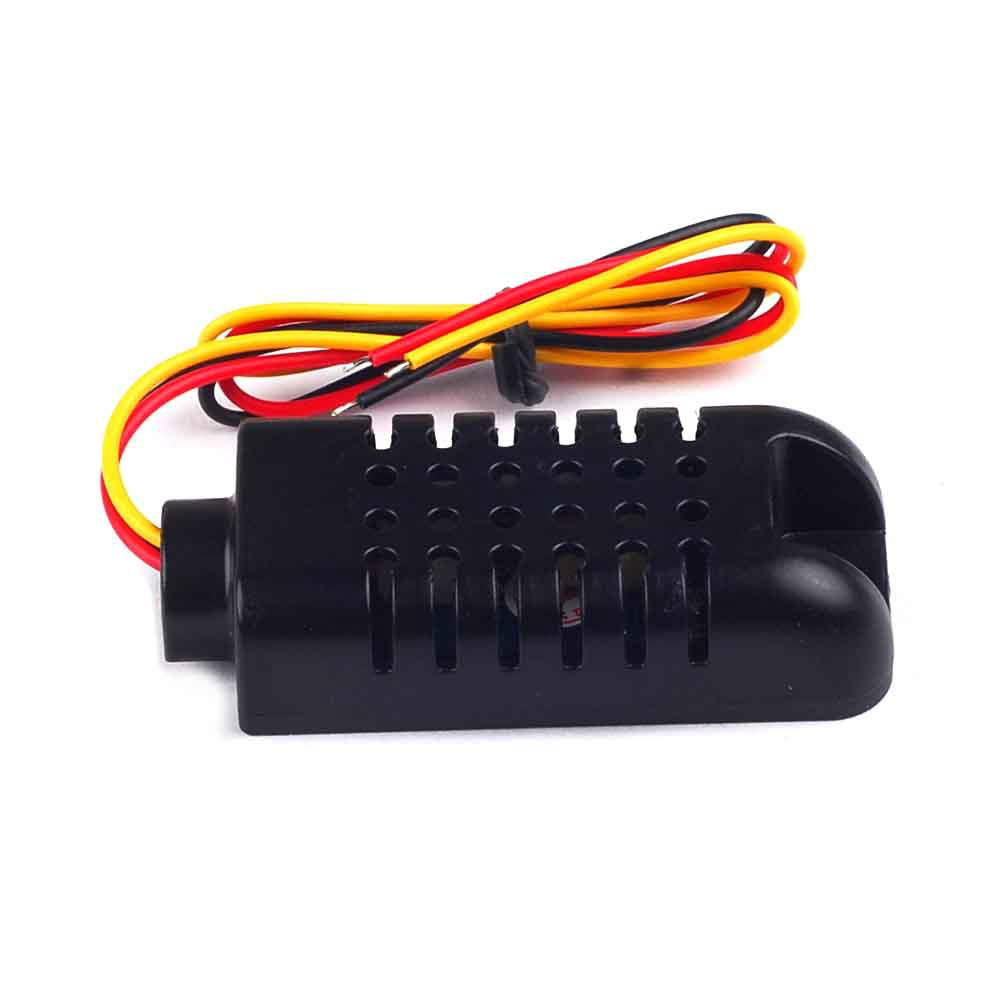

DHT21 AM2301 Digital Temperature Humidity Sensor module

K-TECHNICS
In stock
KSh700.00

Secure checkout

Friendly support

Hassle-free returns

The DHT21 (also known as the AM2301) is a fully calibrated, long-range digital temperature and humidity sensor module widely used with microcontrollers like Arduino, ESP32, and Raspberry Pi. It incorporates a capacitive humidity sensing element and an NTC thermistor coupled to an internal 8-bit microcontroller to output precise digital environment readings.
Core Technical Specifications
The DHT21 stands out for its high reliability and long-term stability. It operates on a standard single-bus digital data communication framework.
  • Operating Voltage: 3.3V to 5.2V DC
  • Humidity Measurement Range: 0% to 100% RH
  • Humidity Precision: ± 3% RH (Maximum ± 5% RH)
  • Temperature Measurement Range: -40°C to +80°C
  • Temperature Precision: ± 0.5°C
  • Resolution: 0.1 for both parameters
  • Sampling Period: 2 seconds average between readings
Wiring and Pinout Configuration

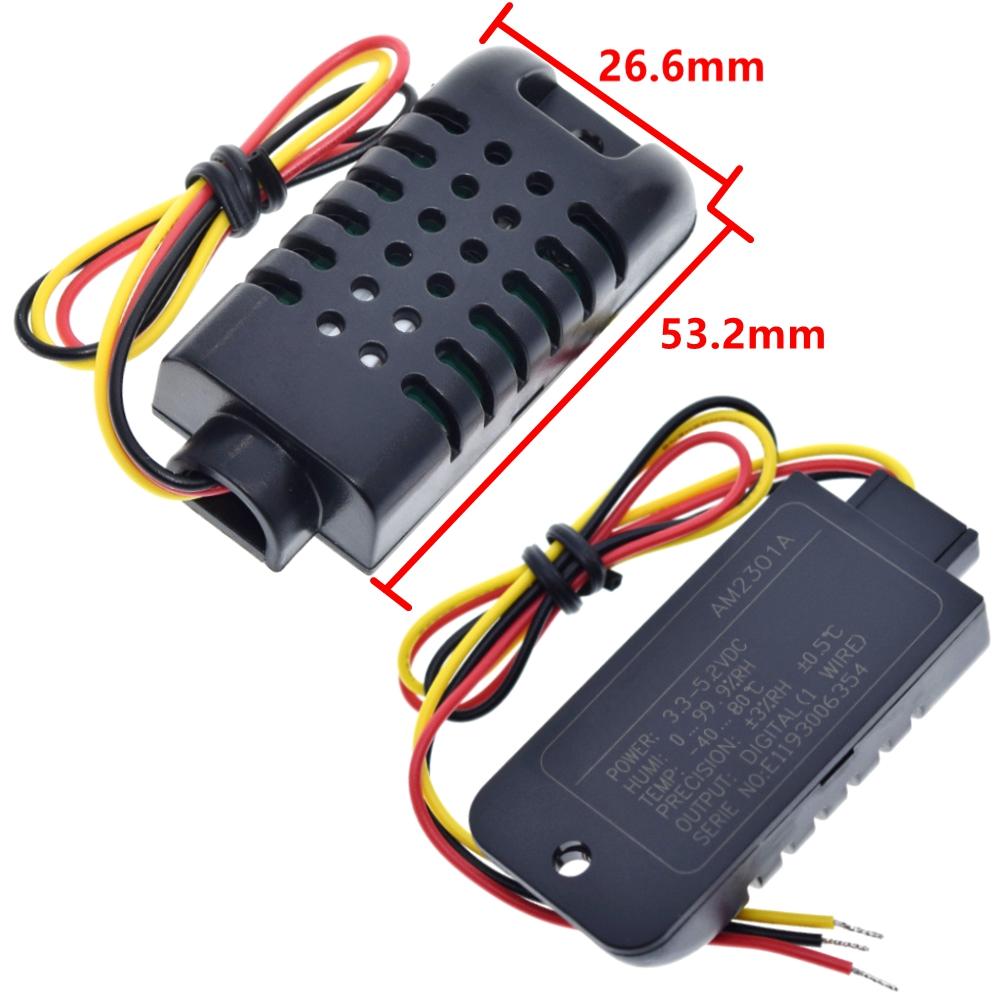

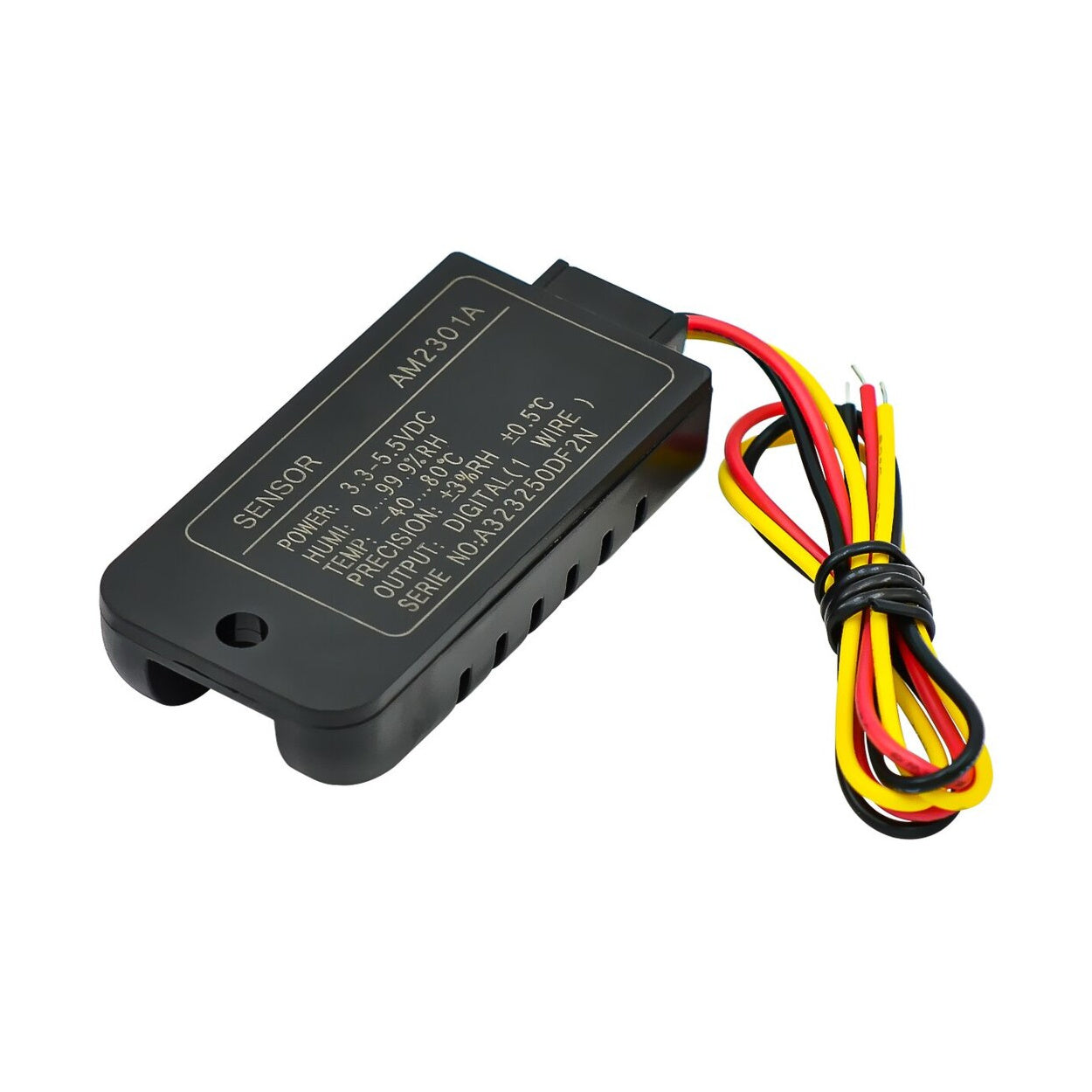

Unlike basic unhoused components, the DHT21 AM2301 is heavily utilized for commercial and harsh field deployments because it usually comes enclosed in a protective plastic shell with pre-soldered extension wires. It uses three primary wires:
  • Red Wire (VCC): Connects to the power supply (3.3V or 5V).
  • Black Wire (GND): Connects to system Ground.
  • Yellow Wire (SDA / Data): Connects to any digital I/O pin on your micro-controller.
Note: The DHT21 features an integrated pull-up resistor on the data line.
