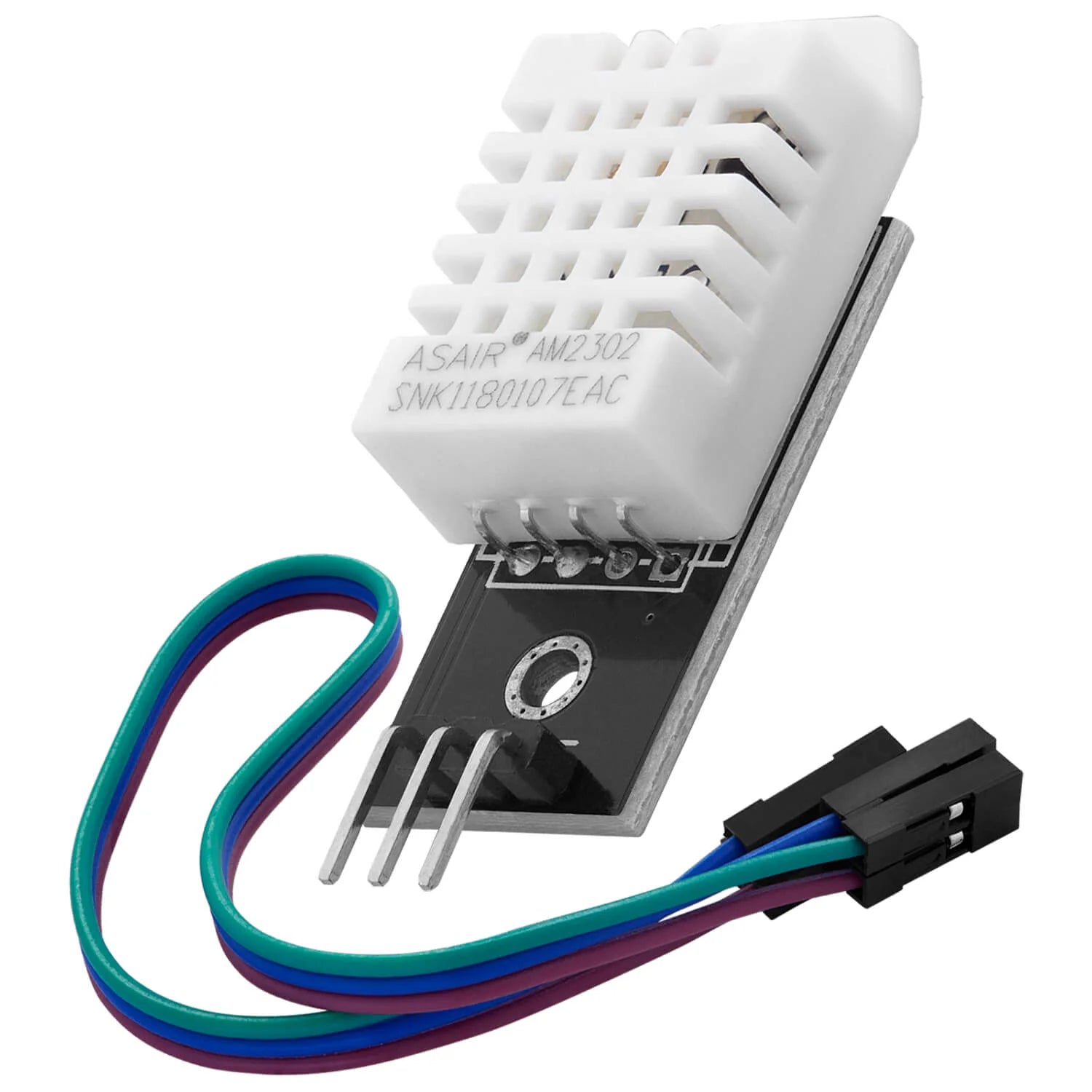

DHT22 AM2302 Temperature Humidity Sensor

K-TECHNICS
In stock
KSh700.00

Secure checkout

Friendly support

Hassle-free returns

The DHT22 (also known as AM2302) is a popular, low-cost digital temperature and humidity sensor widely used in electronics and IoT projects. It uses a capacitive humidity sensing element and a negative temperature coefficient (NTC) thermistor to capture environmental data. A built-in 8-bit microcontroller processes these readings and transmits them as a calibrated digital signal over a single-wire bus.
Technical Specifications
According to official device documentation hosted on Adafruit and WaveShare, the sensor boasts the following performance characteristics:
  • Operating Voltage: 3.3V to 5.5V DC
  • Current Consumption: 2.5mA maximum during active data conversion; 40–60µA during standby
  • Temperature Range: -40°C to 80°C
  • Temperature Accuracy: ±0.5°C with a resolution of 0.1°C
  • Humidity Range: 0% to 100% Relative Humidity (RH)
  • Humidity Accuracy: ±2% RH (typically at 25°C) with a resolution of 0.1% RH
  • Sampling Rate: 0.5 Hz (takes a new reading once every 2 seconds)
