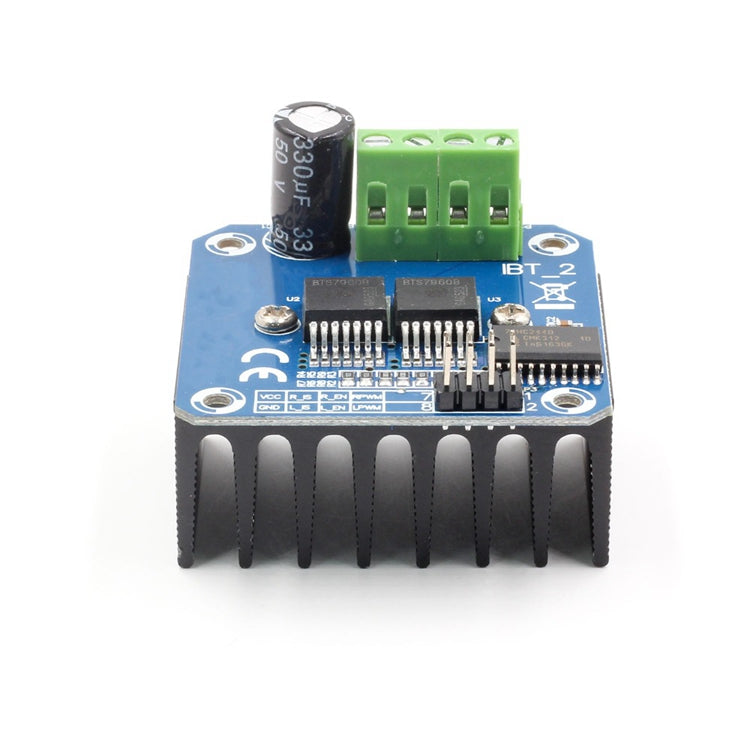

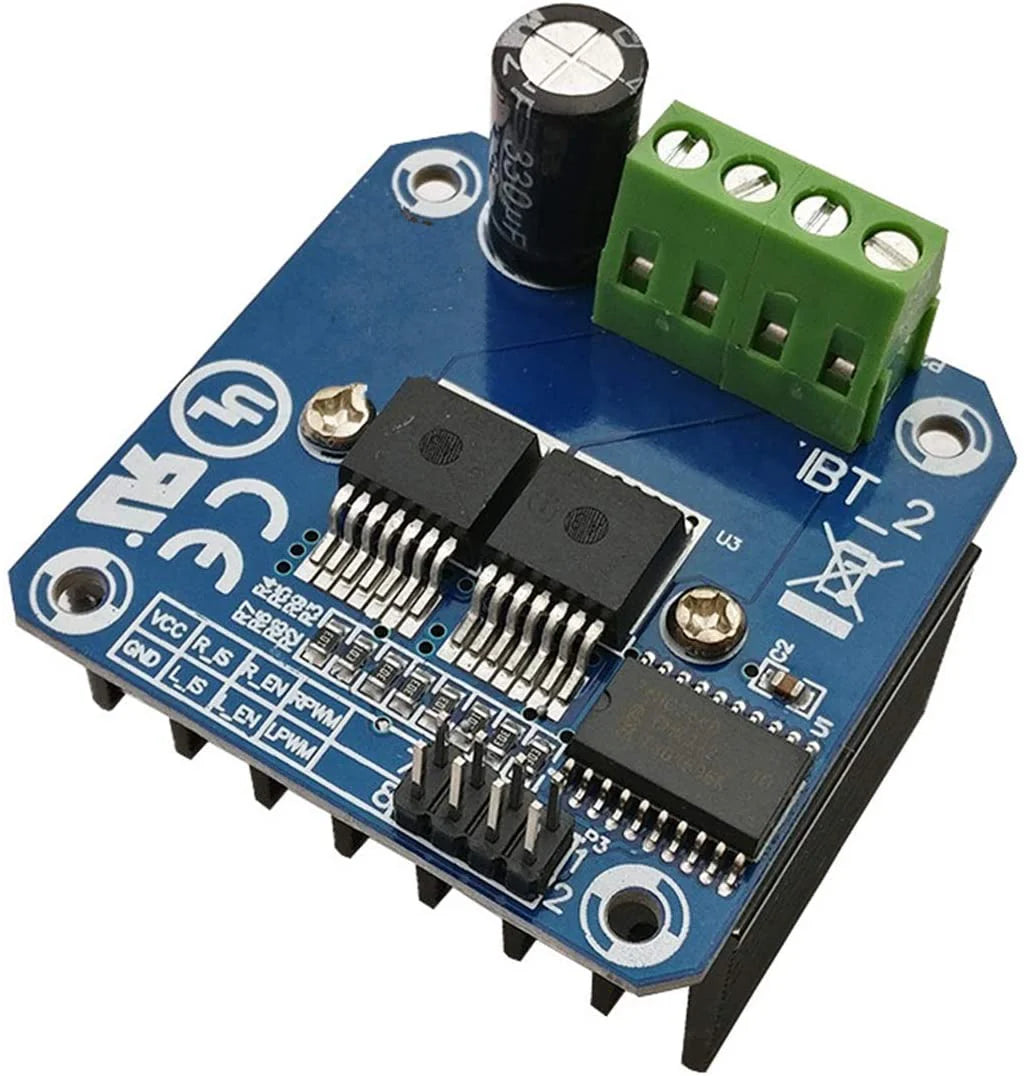

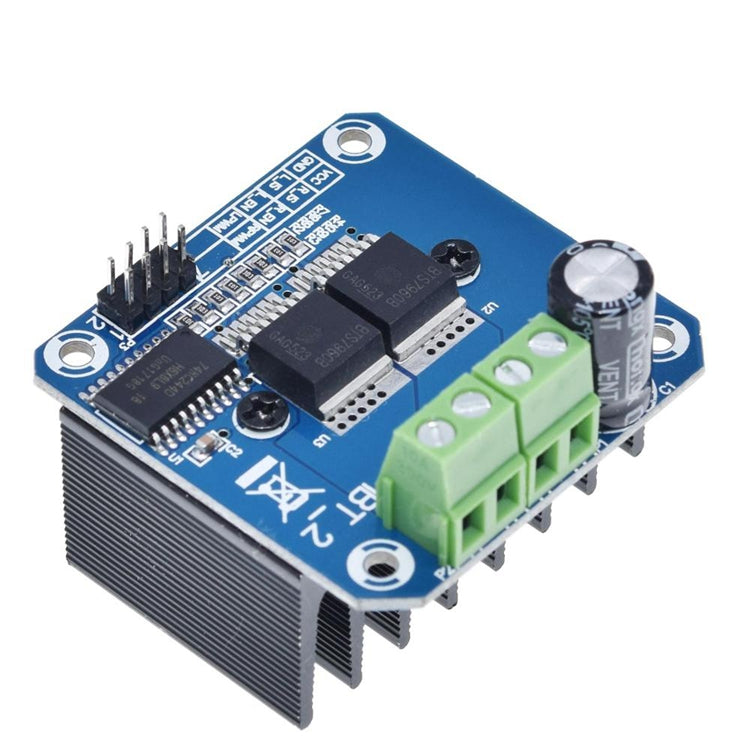

Double BTS7960 43A H-bridge High-power Motor Driver Module

K-TECHNICS
Out of stock
KSh0.00

Secure checkout

Friendly support

Hassle-free returns

This high-power H-Bridge motor driver module is built using Infineon BTS7960 chips, designed for reliable and efficient control of DC motors in robotics, automation, and industrial applications. It provides strong driving capability with built-in thermal and over-current protection, ensuring safe operation under heavy loads.

The module features a dual BTS7960 H-Bridge circuit, delivering high current output and effective motor braking, while isolating the microcontroller from motor power interference. This makes it highly suitable for Arduino, ESP32, STM32, Raspberry Pi, and other control systems.

Key Features

  • Dual BTS7960 high-current H-Bridge driver (43A)
  • Built-in thermal and over-current protection
  • Strong motor drive and braking capability
  • Full isolation between microcontroller and motor power stage
  • Forward and reverse motor rotation control
  • PWM control with frequency up to 25kHz
  • Over-current and over-temperature error signal output
  • Logic-level compatible with 5V microcontrollers
  • Wide operating voltage range: 5.5V – 27V DC

Technical Specifications

Parameter Specification
Driver Chip Infineon BTS7960
Motor Driver Type Dual H-Bridge
Continuous Current Up to 43A
Operating Voltage 5.5V – 27V DC
PWM Frequency Up to 25kHz
Logic Voltage 5V (isolated control side)
Protection Over-current, Over-temperature
Control Functions Forward, Reverse, Brake
Interface PWM + Direction inputs
Isolation Microcontroller protection stage

Applications

  • High-power DC motor control
  • Robotics and automation systems
  • Electric vehicles (small scale)
  • Conveyor and actuator systems
  • Smart machines and DIY engineering projects
  • Arduino / ESP32 / STM32 motor control systems

Package Includes

  • 1 × High-Power BTS7960 Motor Driver Module
