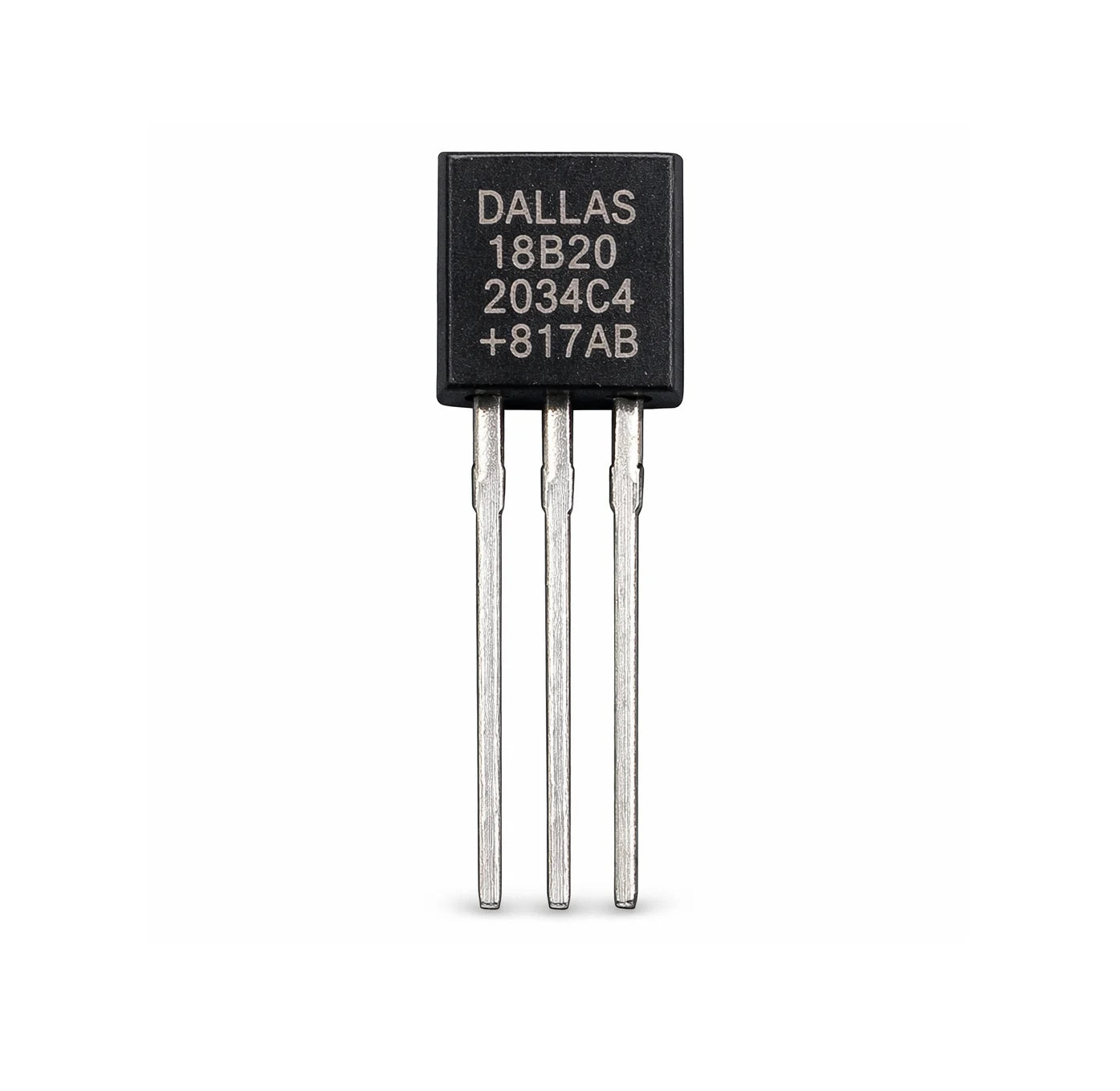

DS18B20 TO92 Digital Temperature Sensor

K-TECHNICS
In stock
KSh150.00

Secure checkout

Friendly support

Hassle-free returns

The DS18B20 is a highly popular, programmable 1-Wire digital temperature sensor manufactured in a compact TO-92 transistor-style package. It provides highly accurate Celsius temperature readings directly to a microcontroller without needing an analog-to-digital converter.
Key Specifications
  • Communication Interface: Analog Devices 1-Wire protocol, which requires only a single digital pin for communication.
  • Temperature Range: Measures from -55°C to +125°C.
  • Accuracy: ±0.5°C precision within the critical range of -10°C to +85°C.
  • Operating Voltage: 3.0V to 5.5V, making it fully compatible with both 3.3V and 5V microcontrollers.
  • Configurable Resolution: User-programmable from 9-bit to 12-bit precision.
  • Unique ROM ID: Every individual chip has a unique, factory-etched 64-bit serial code, enabling multiple sensors to reside on the same single data wire.

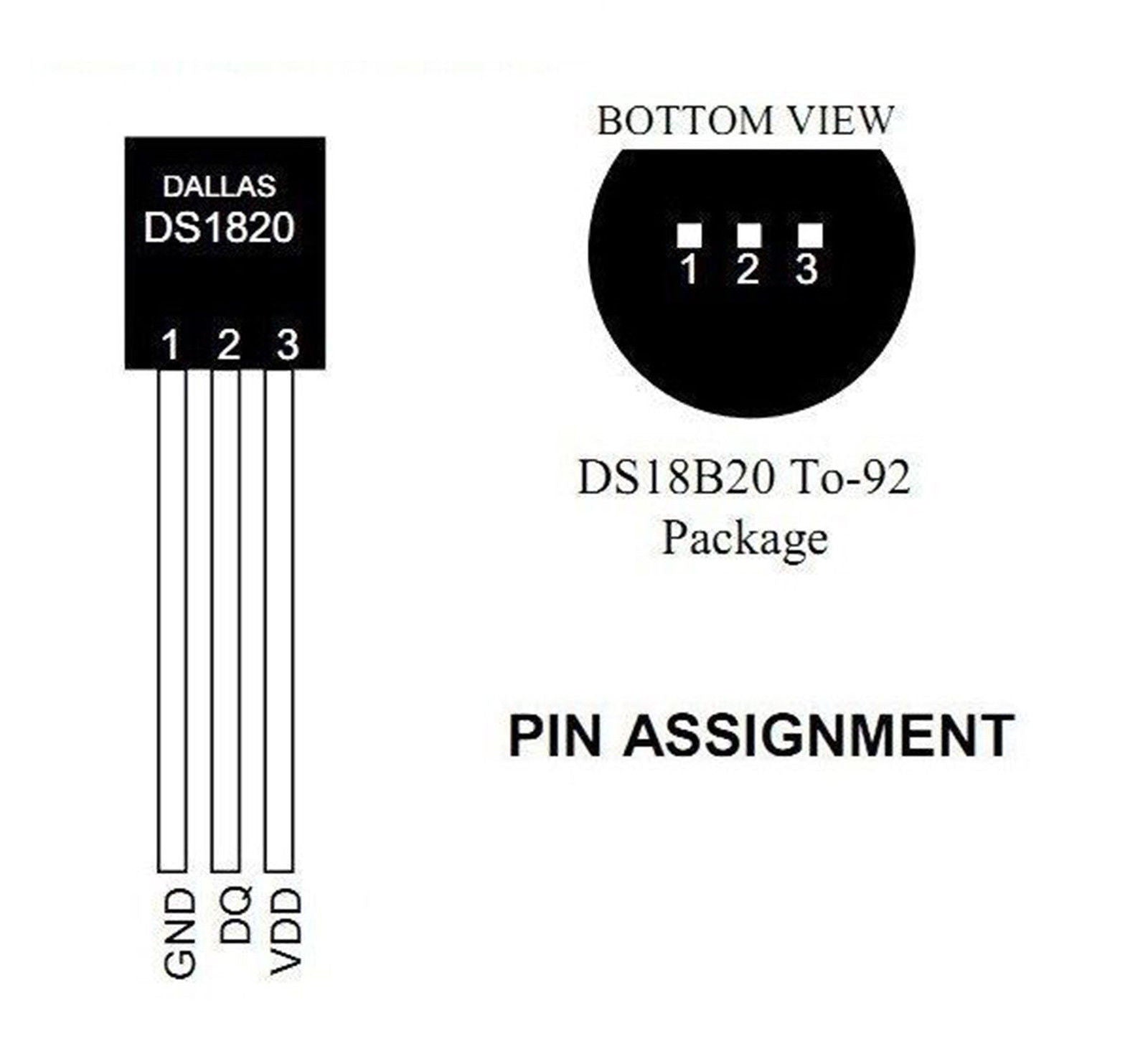

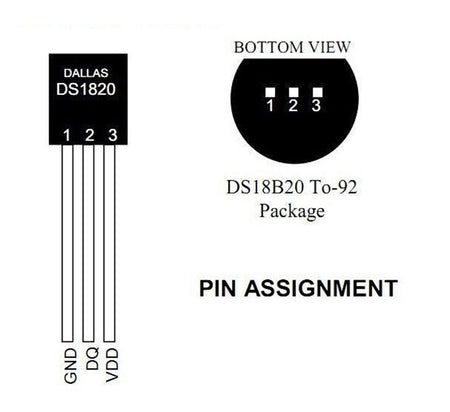

TO-92 Pinout Configuration
When looking at the flat side of the TO-92 package with the leads pointing downward, the pins from left to right are:
  1. GND (Pin 1): Connects to the system ground.
  2. DQ / DATA (Pin 2): The data input/output pin. It requires a 4.7kΩ pull-up resistor connected between this pin and the power supply line (VDD) for reliable communication.
  3. VDD (Pin 3): Power supply pin. Alternatively, the sensor supports parasitic power mode, where it derives power directly from the data line, allowing operation using only two pins (GND and DQ).
