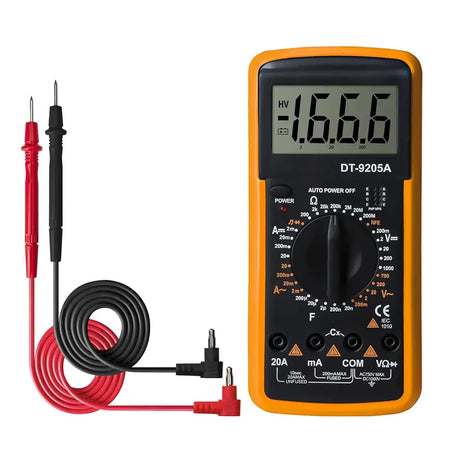

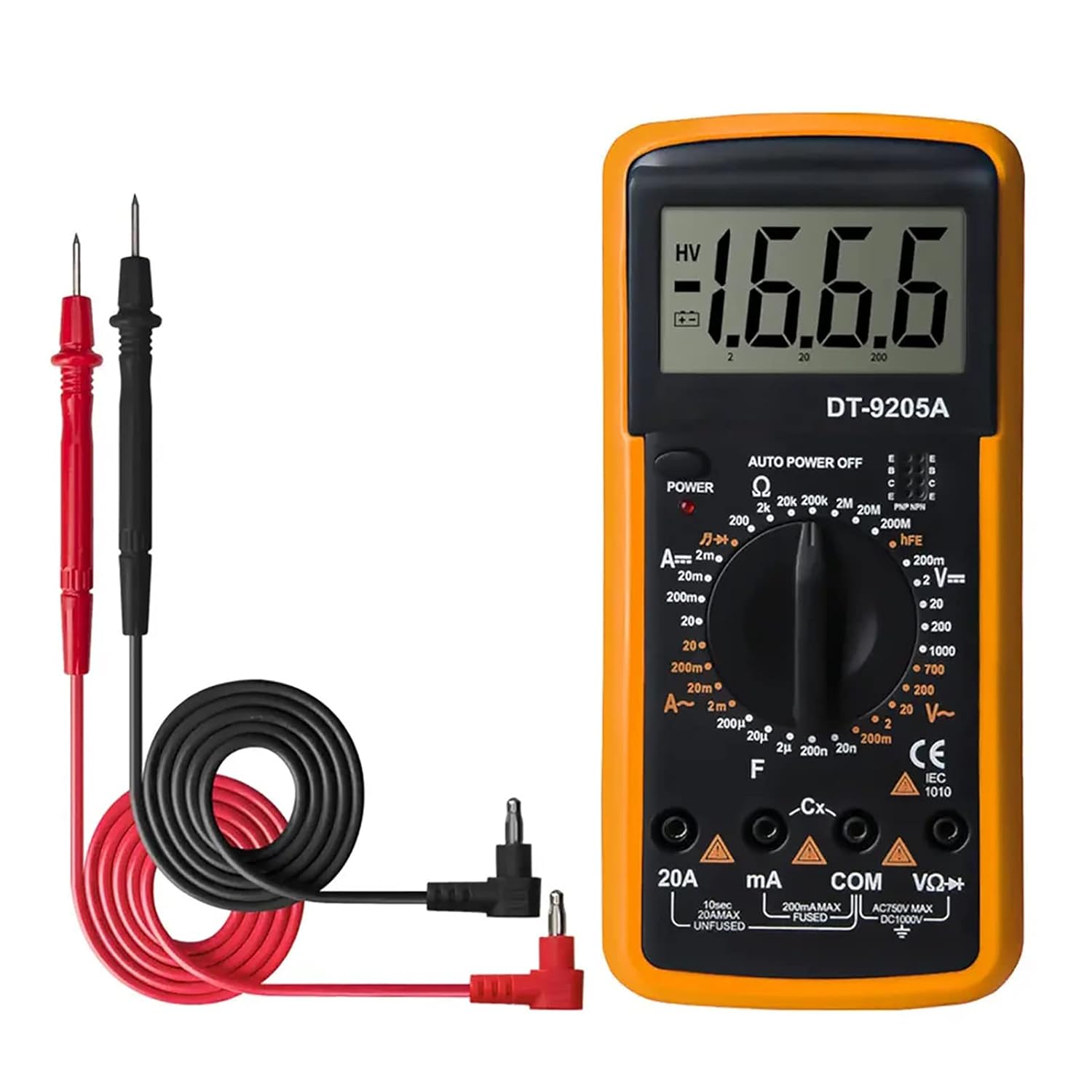

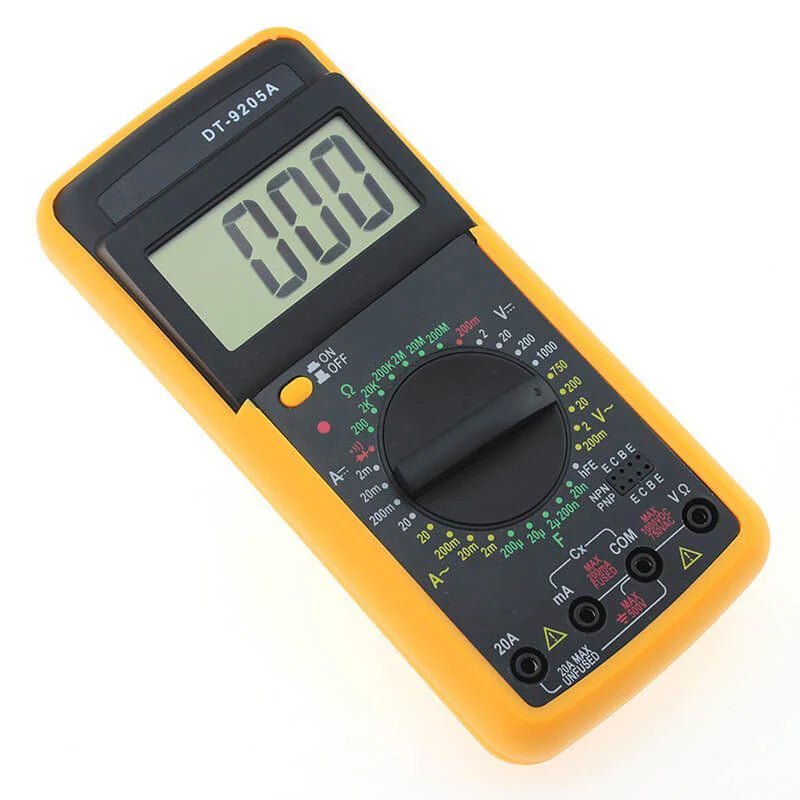

DT9205A Digital Multimeter (Voltmeter, Ohmmeter, Ammeter, Capacitance Tester)

K-TECHNICS
Only 2 left
KSh1,500.00

Secure checkout

Friendly support

Hassle-free returns

Designed to be a comprehensive diagnostic tool, the DT9205A measures a broad spectrum of electrical properties. It effortlessly handles AC and DC voltage, resistance, and features a dedicated high-current 20-Amp testing range. Notably, it includes a built-in capacitance tester and dedicated sockets for testing NPN and PNP transistors (hFE) features that are frequently missing from basic multimeters. Encased in a thick, bright rubberized protective holster with a built-in kickstand, it is rugged enough to survive accidental drops in the garage or the rigors of an educational laboratory.

Key Features & Functional Advantages

  • Manual Ranging Precision: The large 32-position rotary switch allows you to lock into a specific measurement range instantly, providing faster readout updates without waiting for the meter to "guess" the scale.

  • Large Adjustable Display: Features an oversized 1999-count LCD screen that can be tilted upward, providing excellent visibility when the meter is lying flat on your workbench.

  • Expanded Measurement Spectrum: Accurately tests DC/AC Voltage, DC/AC Current, Resistance, and Capacitance, acting as a complete, all-in-one diagnostic tool.

  • Component Testing Sockets: Includes dedicated front-panel ports for quickly verifying the capacitance of standalone capacitors and testing the current gain (hFE) of bipolar junction transistors.

  • Rugged Protection: Comes wrapped in a removable, shock-absorbing soft polymer case that protects the internal circuitry from impacts and harsh physical workshop environments.

Perfect For

  • Educational Prototyping: A fantastic, budget-friendly first multimeter for students learning how to manually select voltage ranges and test basic breadboard components.

  • DIY Electronics Repair: The perfect household tool for checking dead batteries, verifying continuity on broken wires, and testing resistors on custom logic boards.

  • Automotive Maintenance: Safely checking 12-Volt car batteries, testing alternator outputs, and troubleshooting short circuits in vehicle lighting systems.

  • Appliance Troubleshooting: Diagnosing faulty washing machines or HVAC systems by verifying wall voltage and checking the health of large motor start capacitors.

Technical Specifications

  • Device Type: Manual-Ranging Digital Multimeter

  • Display: 3.5 Digits LCD (1999 Counts)

  • DC Voltage Range: 200mV to 1000V

  • AC Voltage Range: 200mV to 750V

  • DC/AC Current Range: 2mA to 20A

  • Resistance Range: 200Ω to 200MΩ

  • Capacitance Range: 2nF to 200μF

  • Extra Functions: Diode Test, Continuity Buzzer, Transistor hFE Test

  • Power Source: 1 x 9V Battery (6F22)
